WH/Wire Harness — <female> 22P Non–waterproof Type, page 165

D–90

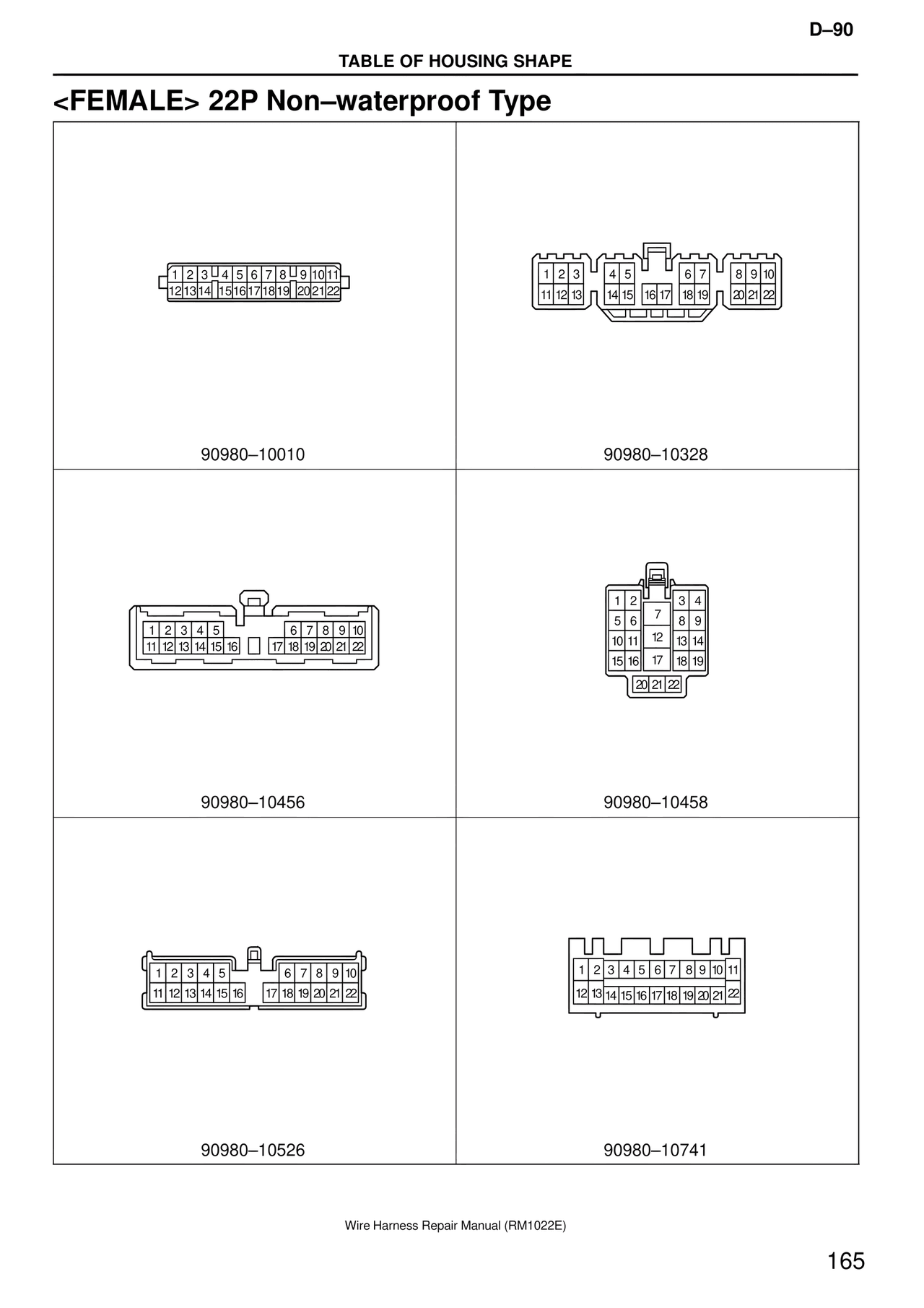

TABLE OF HOUSING SHAPE

<FEMALE> 22P Non–waterproof Type

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22

90980–10010

1 2 3   4 5   6 7   8 9 10
11 12 13   14 15   16 17   18 19   20 21 22

90980–10328

1 2 3 4 5       6 7 8 9 10
11 12 13 14 15 16   17 18 19 20 21 22

90980–10456

1 2     3 4
5 6   7   8 9
10 11   12   13 14
15 16   17   18 19
20 21 22

90980–10458

1 2 3 4 5     6 7 8 9 10
11 12 13 14 15 16   17 18 19 20 21 22

90980–10526

1 2 3 4 5 6 7 8 9 10 11
12 13 14 15 16 17 18 19 20 21 22

90980–10741
