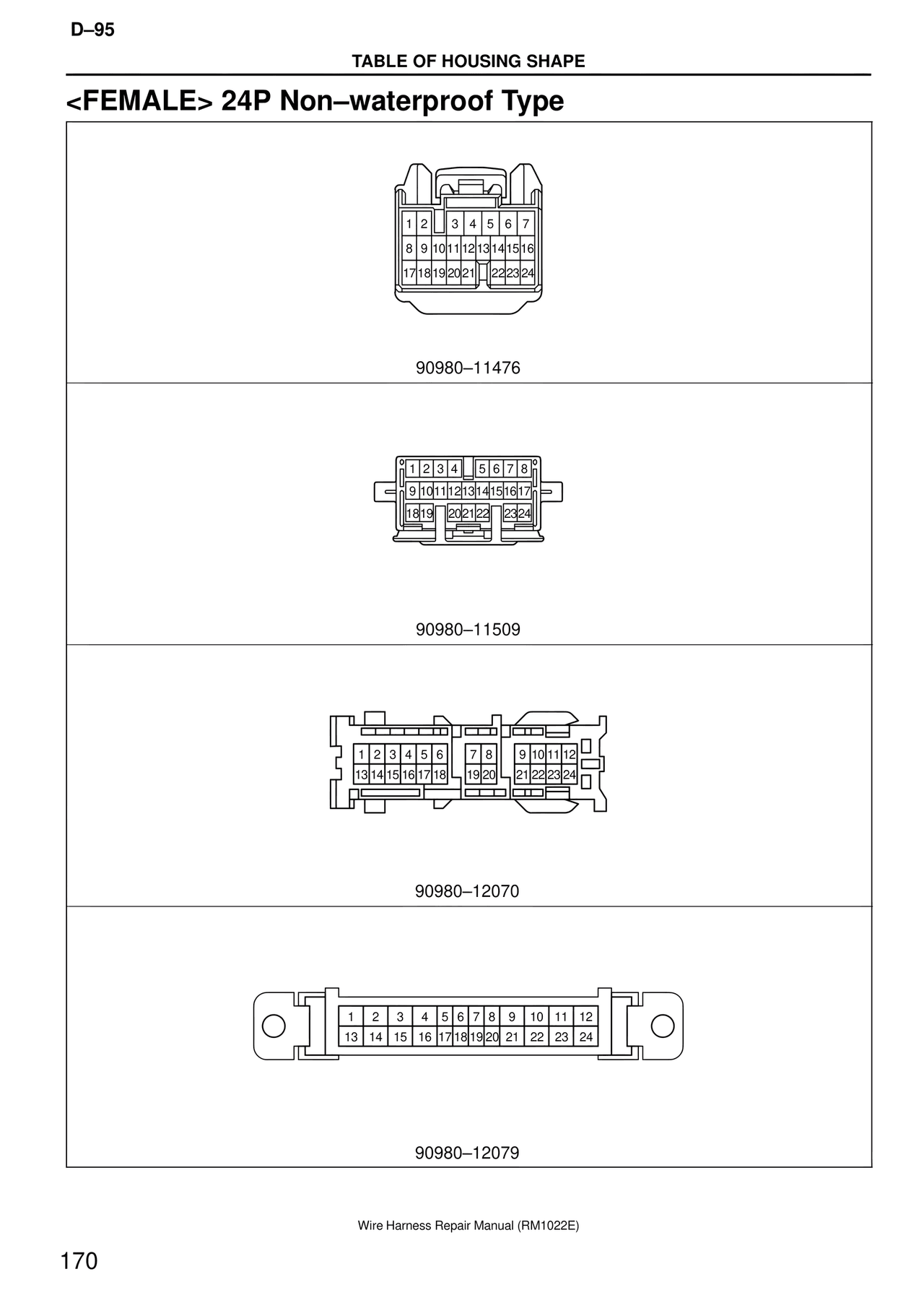

<FEMALE> 24P Non–waterproof Type — MK4 Supra Wire Harness, page 170
100%
D–95 TABLE OF HOUSING SHAPE <FEMALE> 24P Non–waterproof Type 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–11476 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–11509 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–12070 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–12079 Wire Harness Repair Manual (RM1022E) 170
