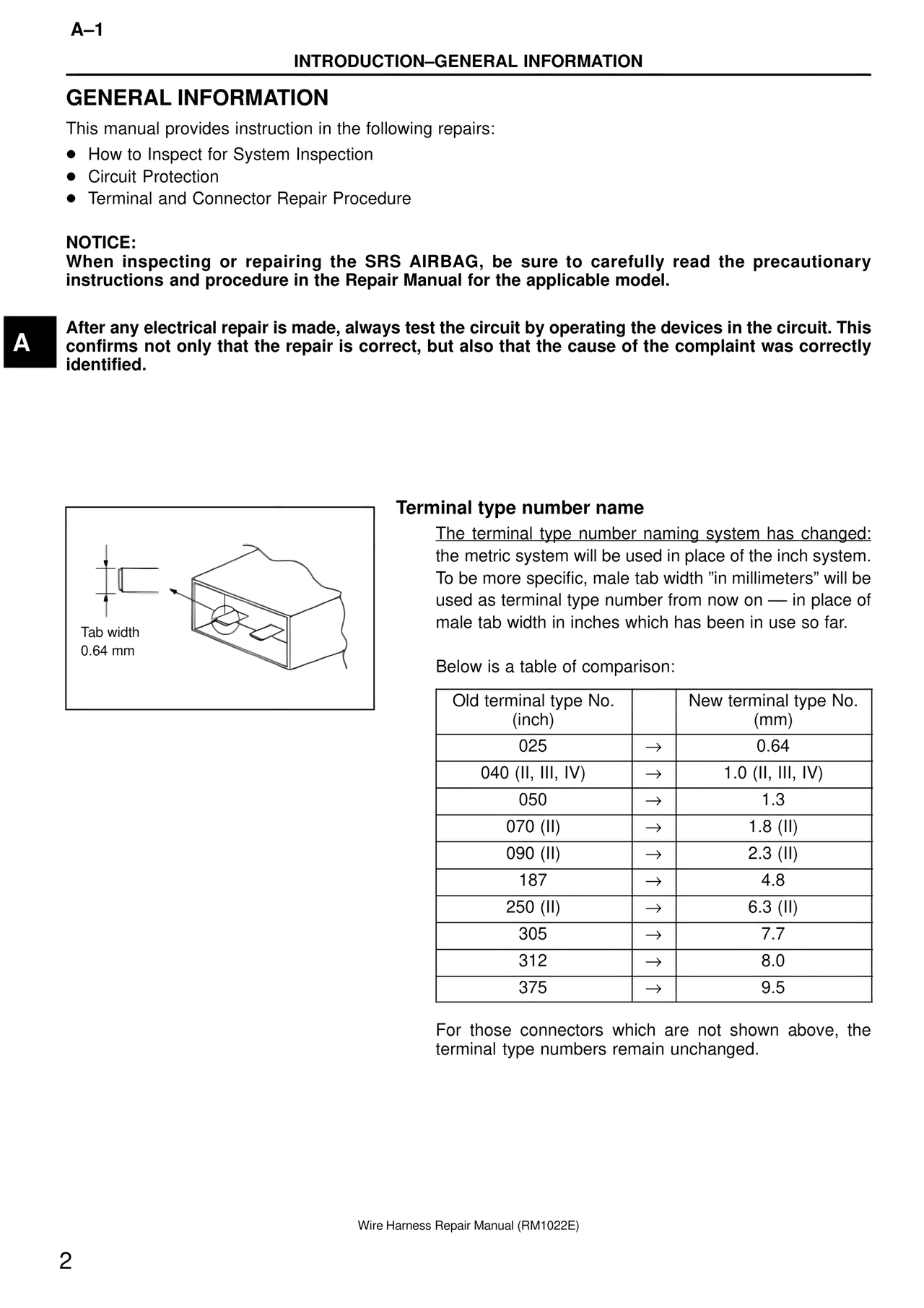

A–1 INTRODUCTION–GENERAL INFORMATION GENERAL INFORMATION This manual provides instruction in the following repairs: • How to Inspect for System Inspection • Circuit Protection • Terminal and Connector Repair Procedure NOTICE: When inspecting or repairing the SRS AIRBAG, be sure to carefully read the precautionary instructions and procedure in the Repair Manual for the applicable model. A After any electrical repair is made, always test the circuit by operating the devices in the circuit. This confirms not only that the repair is correct, but also that the cause of the complaint was correctly identified. Tab width 0.64 mm Terminal type number name The terminal type number naming system has changed: the metric system will be used in place of the inch system. To be more specific, male tab width "in millimeters" will be used as terminal type number from now on — in place of male tab width in inches which has been in use so far. Below is a table of comparison: Old terminal type No. (inch) New terminal type No. (mm) 025 → 0.64 040 (II, III, IV) → 1.0 (II, III, IV) 050 → 1.3 070 (II) → 1.8 (II) 090 (II) → 2.3 (II) 187 → 4.8 250 (II) → 6.3 (II) 305 → 7.7 312 → 8.0 375 → 9.5 For those connectors which are not shown above, the terminal type numbers remain unchanged. Wire Harness Repair Manual (RM1022E) 2
