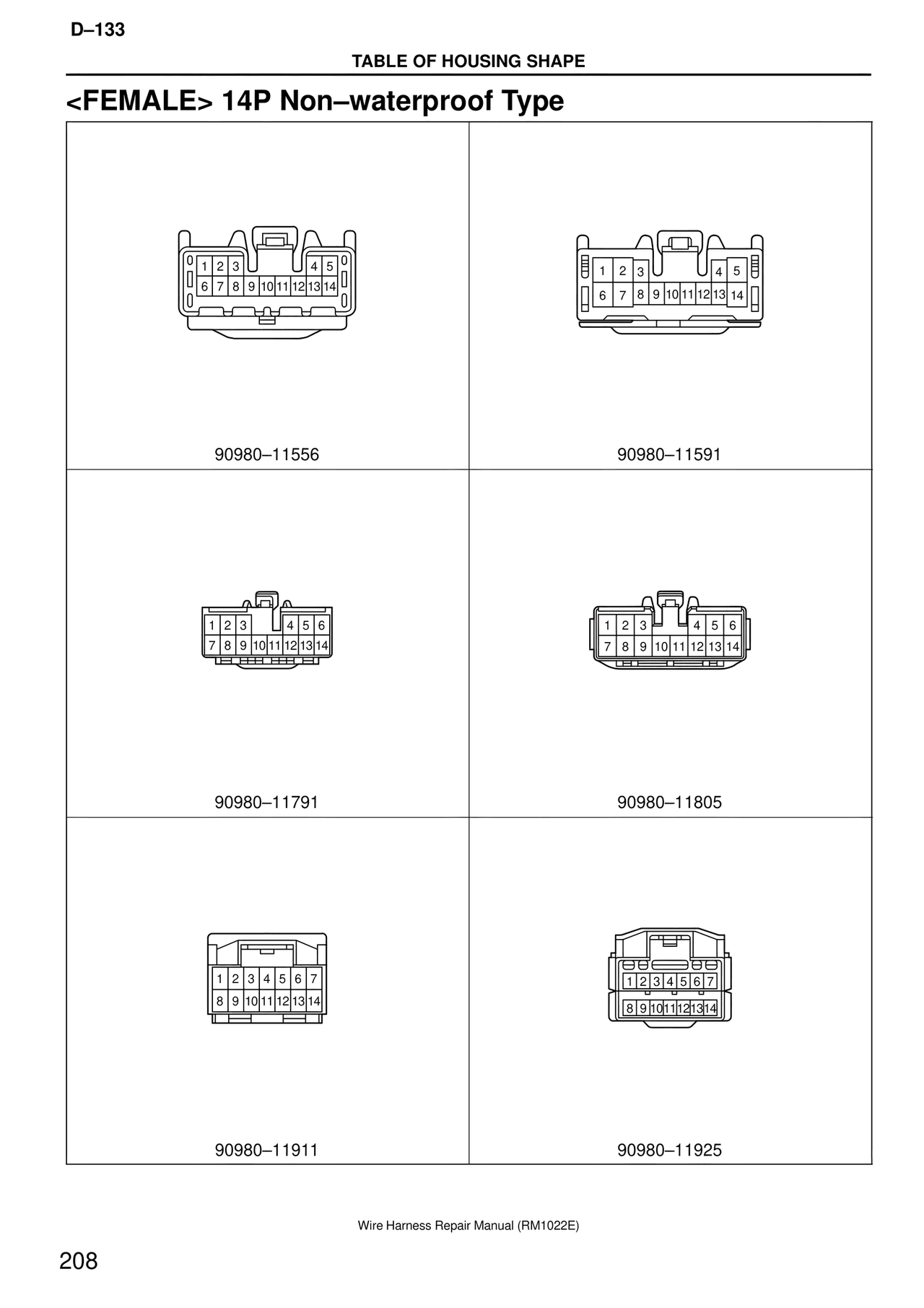

WH/Wire Harness — <female> 14P Non–waterproof Type, page 208

D–133

TABLE OF HOUSING SHAPE

<FEMALE> 14P Non–waterproof Type

0
1 2 3     4 5 0
6 7 8 9 10 11 12 13 14
0

90980–11556

1 2 3     4 5
6 7 8 9 10 11 12 13 14

90980–11591

1 2 3     4 5 6
7 8 9 10 11 12 13 14

90980–11791

1 2 3     4 5 6
7 8 9 10 11 12 13 14

90980–11805

1 2 3 4 5 6 7
8 9 10 11 12 13 14

90980–11911

1 2 3 4 5 6 7
8 9 10 11 12 13 14

90980–11925

Wire Harness Repair Manual (RM1022E)

208
