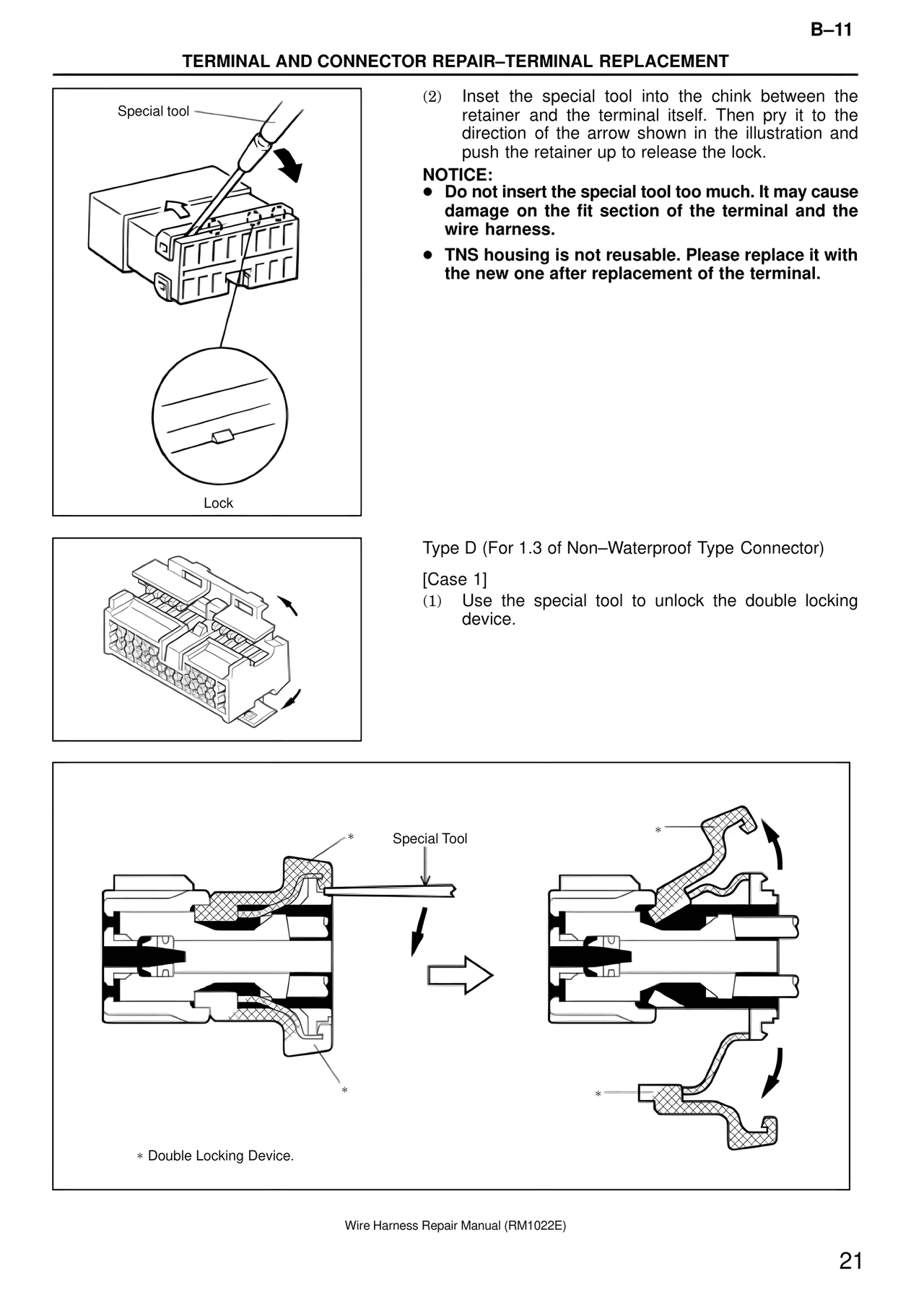

B–11
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Special tool
(2) Inset the special tool into the chink between the
retainer and the terminal itself. Then pry it to the
direction of the arrow shown in the illustration and
push the retainer up to release the lock.
NOTICE:
● Do not insert the special tool too much. It may cause
damage on the fit section of the terminal and the
wire harness.
● TNS housing is not reusable. Please replace it with
the new one after replacement of the terminal.
Lock
Type D (For 1.3 of Non–Waterproof Type Connector)
[Case 1]
(1) Use the special tool to unlock the double locking
device.
Special Tool
* Double Locking Device.
Wire Harness Repair Manual (RM1022E)
21
