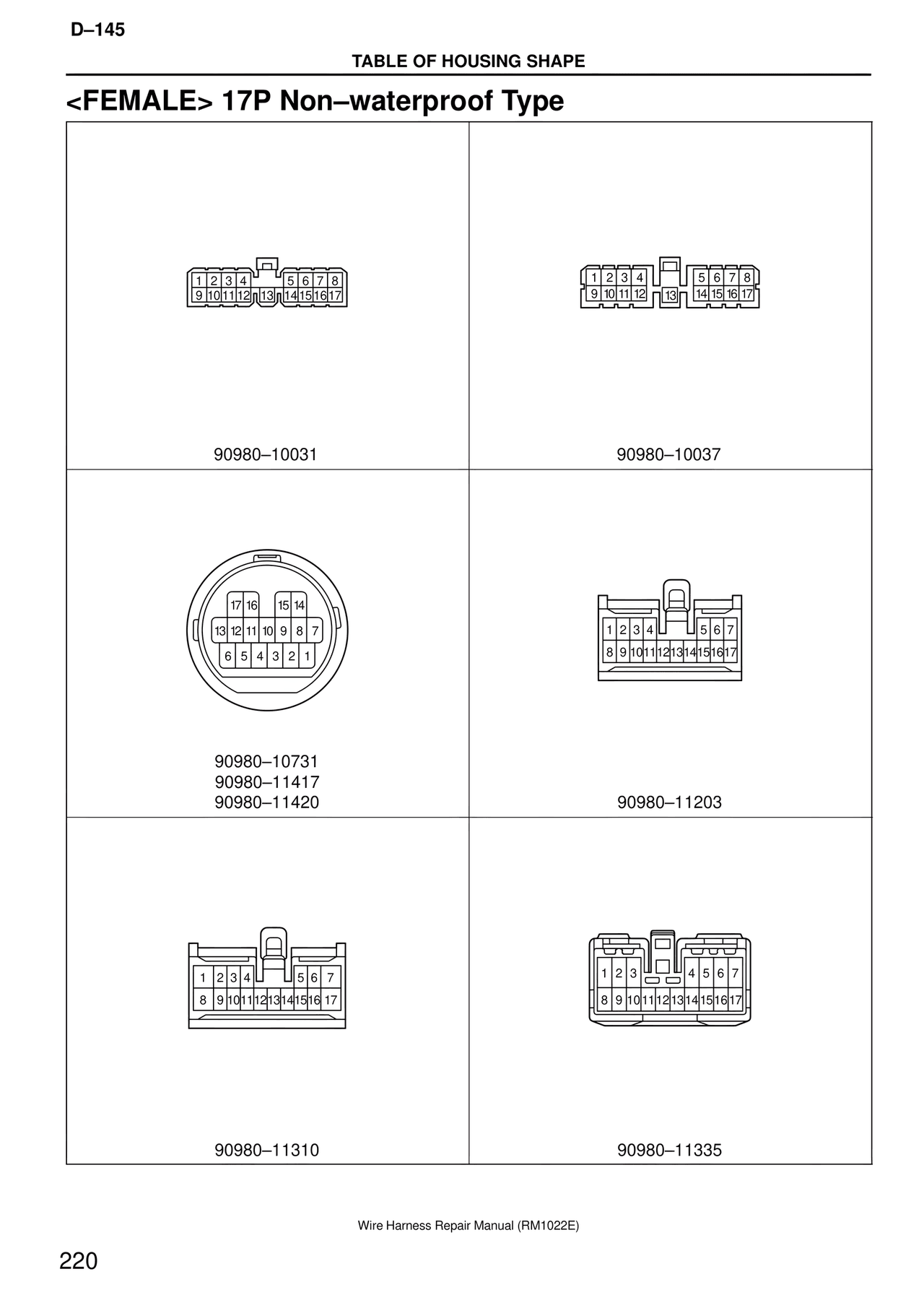

WH/Wire Harness — <female> 17P Non–waterproof Type, page 220

D–145

TABLE OF HOUSING SHAPE

<FEMALE> 17P Non–waterproof Type

1 2 3 4    5 6 7 8
9 10 11 12 13 14 15 16 17

90980–10031

1 2 3 4    5 6 7 8
9 10 11 12   13   14 15 16 17

90980–10037

17 16   15 14
13 12 11 10  9  8  7
6  5  4  3  2  1

90980–10731
90980–11417
90980–11420

1 2 3 4    5 6 7
8 9 10 11 12 13 14 15 16 17

90980–11203

1 2 3 4    5 6 7
8  9 10 11 12 13 14 15 16 17

90980–11310

1 2 3    4 5 6 7
8  9 10 11 12 13 14 15 16 17

90980–11335

Wire Harness Repair Manual (RM1022E)
