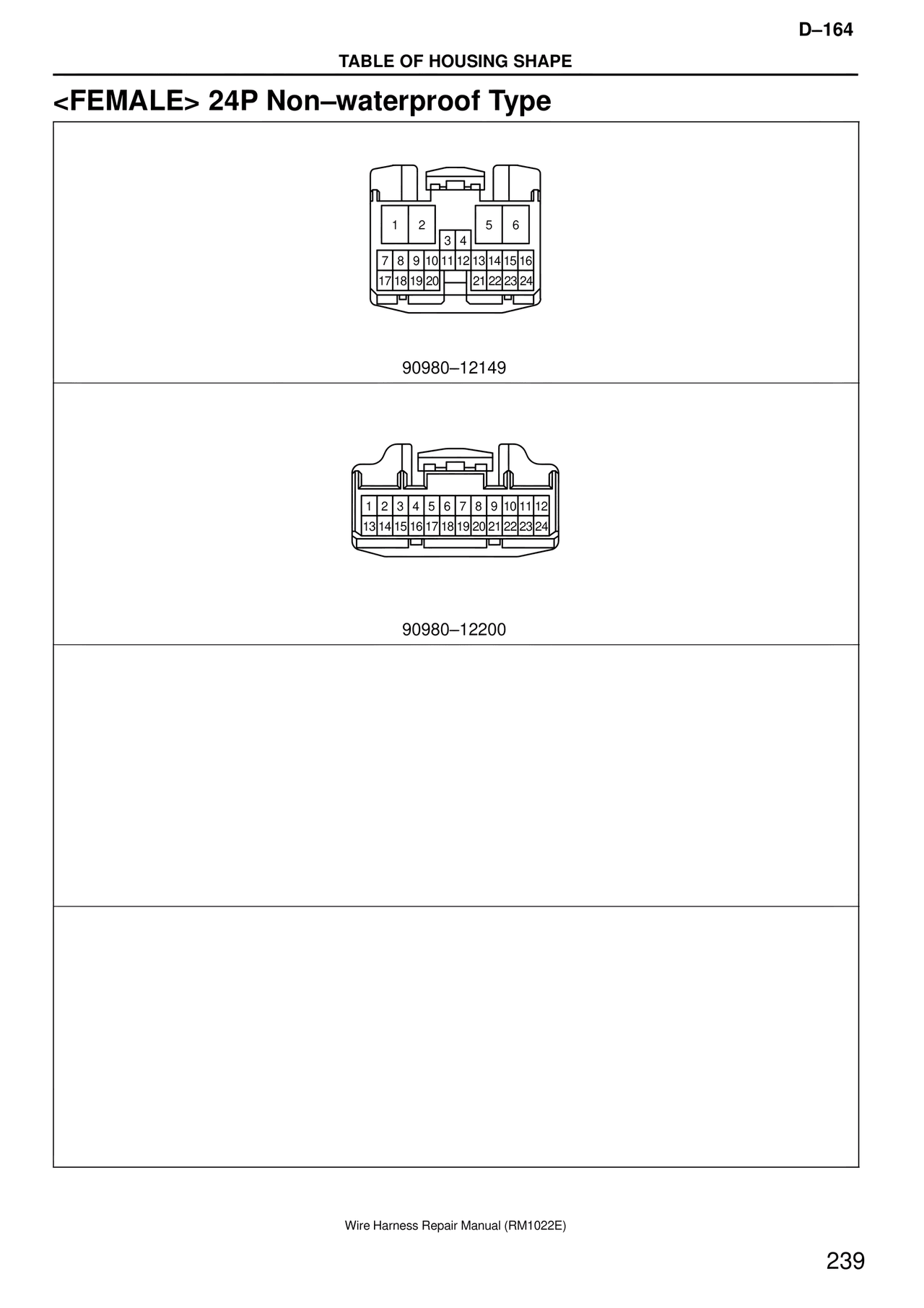

<FEMALE> 24P Non–waterproof Type — MK4 Supra Wire Harness, page 239
100%
D–164 TABLE OF HOUSING SHAPE <FEMALE> 24P Non–waterproof Type 1 2 5 6 3 4 7 8 9 10 11 12 13 14 15 16 17 18 19 20 — 21 22 23 24 90980–12149 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 90980–12200 Wire Harness Repair Manual (RM1022E) 239
