D–170

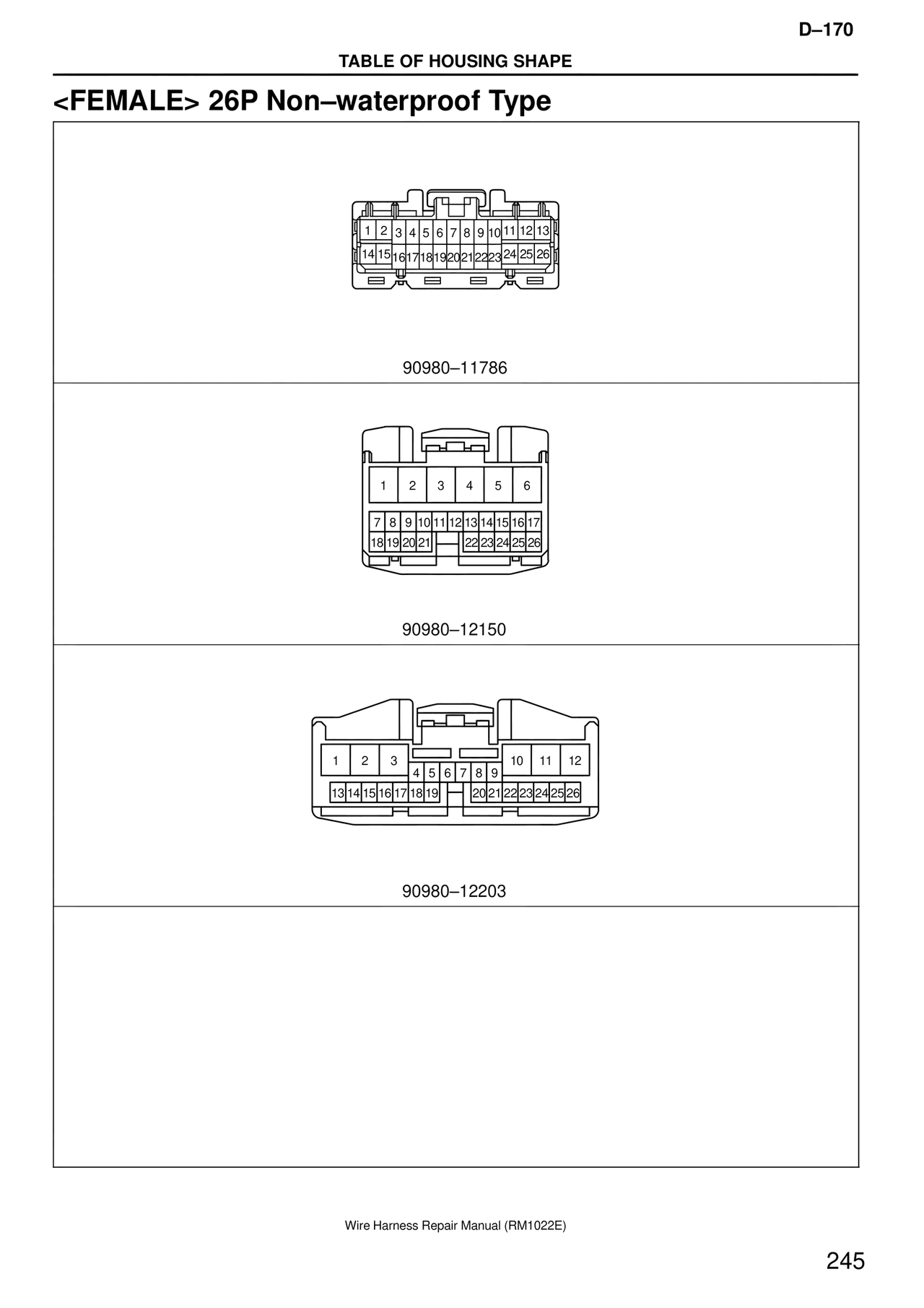

TABLE OF HOUSING SHAPE

<FEMALE> 26P Non–waterproof Type

1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25 26

90980–11786

1    2    3    4    5    6
7 8 9 10 11 12 13 14 15 16 17
18 19 20 21        22 23 24 25 26

90980–12150

1   2   3         10  11  12
      4 5 6 7 8 9
13 14 15 16 17 18 19    20 21 22 23 24 25 26

90980–12203

Wire Harness Repair Manual (RM1022E)

245
