WH/Wire Harness — <female> 28P Non–waterproof Type, page 247

D–172

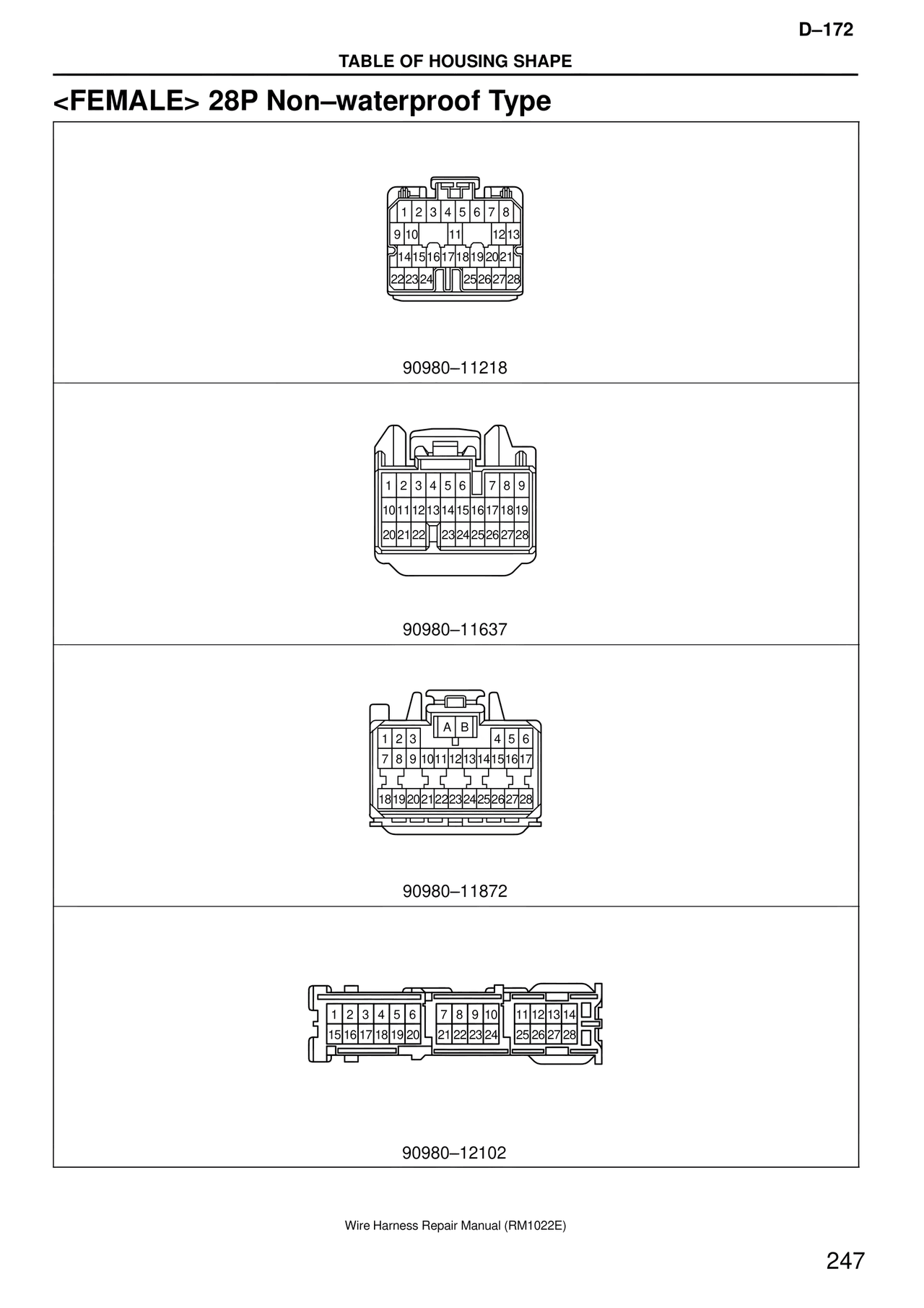

TABLE OF HOUSING SHAPE

<FEMALE> 28P Non–waterproof Type

1 2 3 4 5 6 7 8
9 10   11   12 13
14 15 16 17 18 19 20 21
22 23 24   25 26 27 28

90980–11218

1 2 3 4 5 6   7 8 9
10 11 12 13 14 15 16 17 18 19
20 21 22   23 24 25 26 27 28

90980–11637

1 2 3  A B  4 5 6
7 8 9 10 11 12 13 14 15 16 17
18 19 20 21 22 23 24 25 26 27 28

90980–11872

1 2 3 4 5 6  7 8 9 10  11 12 13 14
15 16 17 18 19 20  21 22 23 24  25 26 27 28

90980–12102

Wire Harness Repair Manual (RM1022E)
