D–179

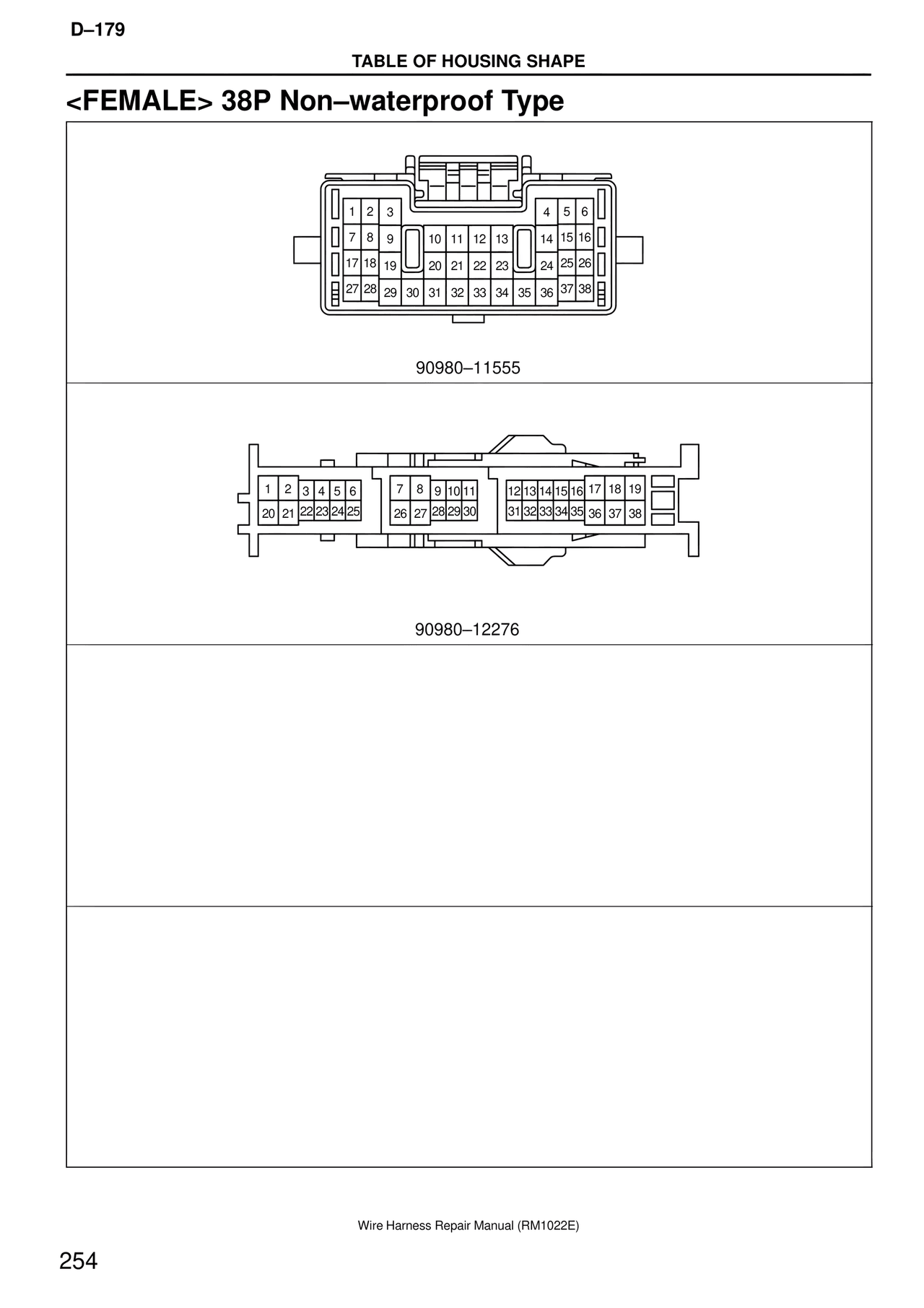

TABLE OF HOUSING SHAPE

<FEMALE> 38P Non–waterproof Type

1  2  3          4  5  6
7  8  9   10 11 12 13   14 15 16
17 18 19   20 21 22 23   24 25 26
27 28  29  30  31  32  33  34  35  36  37 38

90980–11555

1  2  3  4  5  6      7  8  9  10 11      12 13 14 15 16  17  18  19
20  21   22 23 24 25      26  27  28 29 30      31 32 33 34 35   36   37  38

90980–12276

254

Wire Harness Repair Manual (RM1022E)
