WH/Wire Harness — <male> 4P Waterproof Type, page 267

D–192

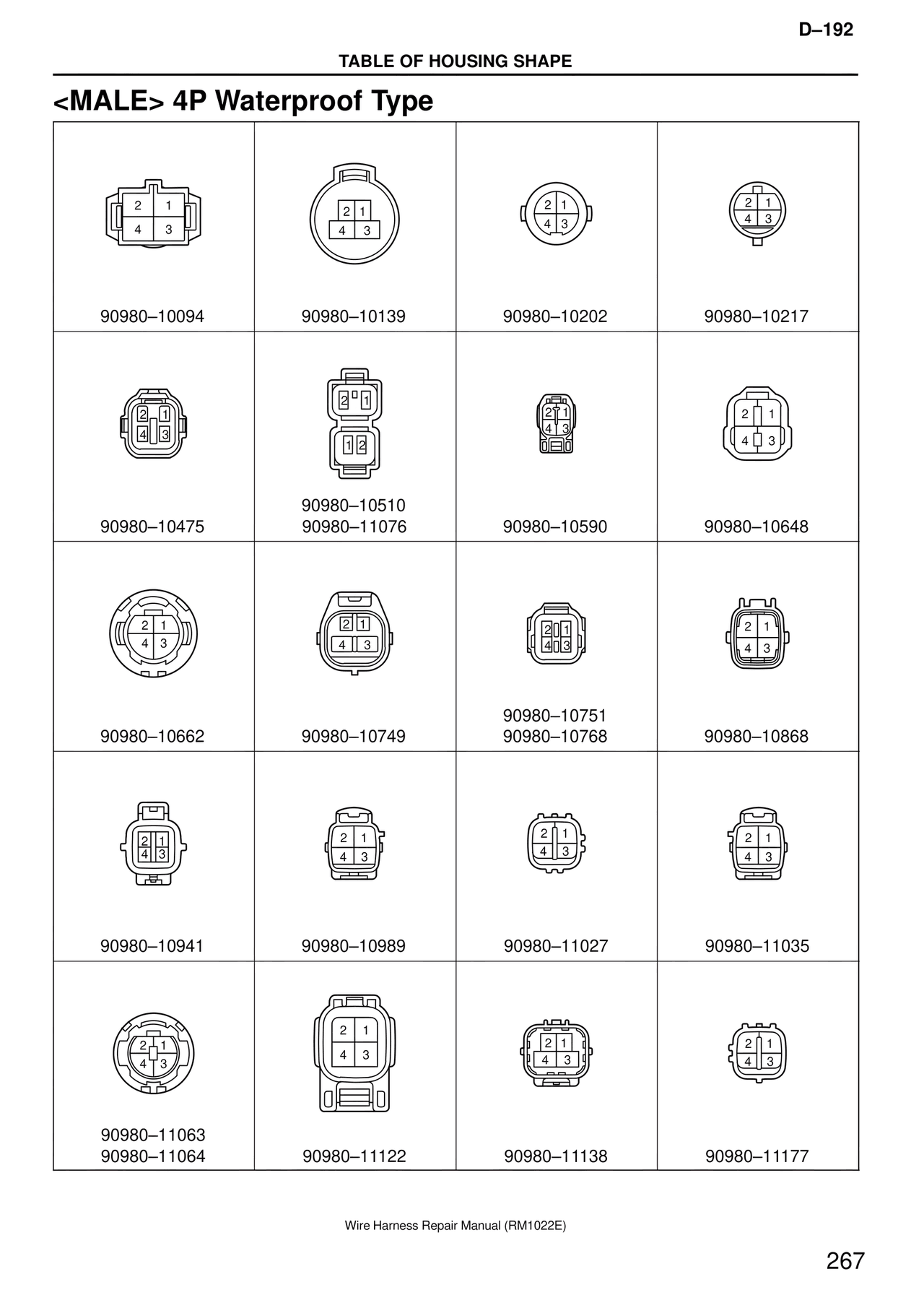

TABLE OF HOUSING SHAPE

<MALE> 4P Waterproof Type

2  1
4  3

90980–10094

2  1
4  3

90980–10139

2  1
4  3

90980–10202

2  1
4  3

90980–10217

2  1
4  3

90980–10475

2°  1

1  2

90980–10510
90980–11076

2  1
4  3

90980–10590

2  1
4  3

90980–10648

2  1
4  3

90980–10662

2  1
4  3

90980–10749

2  1
4  3

90980–10751
90980–10768

2  1
4  3

90980–10868

2  1
4  3

90980–10941

2  1
4  3

90980–10989

2  1
4  3

90980–11027

2  1
4  3

90980–11035

2  1
4  3

90980–11063
90980–11064

2  1
4  3

90980–11122

2  1
4  3

90980–11138

2  1
4  3

90980–11177

Wire Harness Repair Manual (RM1022E)

267
