D–202

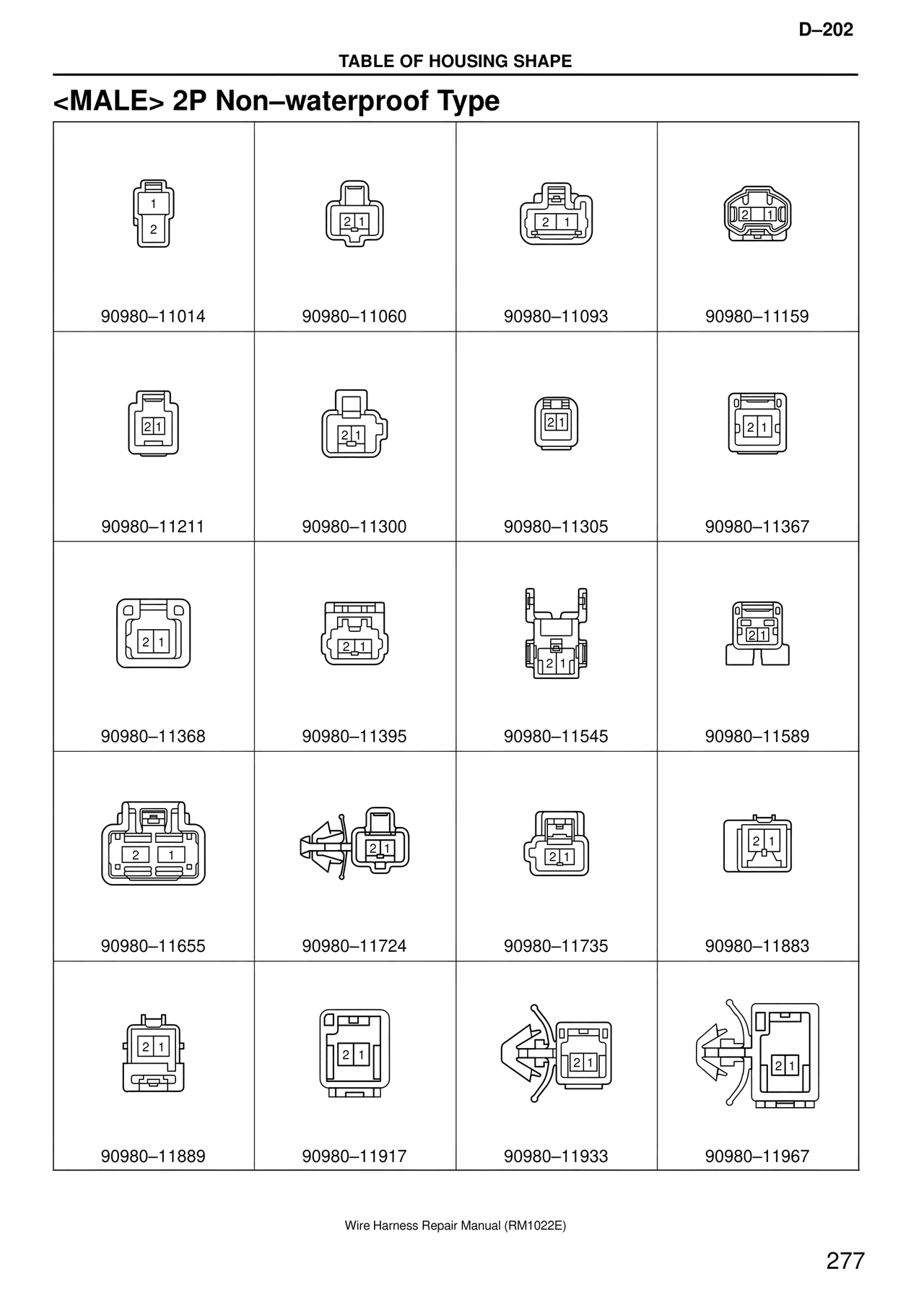

TABLE OF HOUSING SHAPE

<MALE> 2P Non–waterproof Type

90980–11014

90980–11060

90980–11093

90980–11159

90980–11211

90980–11300

90980–11305

90980–11367

90980–11368

90980–11395

90980–11545

90980–11589

90980–11655

90980–11724

90980–11735

90980–11883

90980–11889

90980–11917

90980–11933

90980–11967

Wire Harness Repair Manual (RM1022E)

277
