D–204

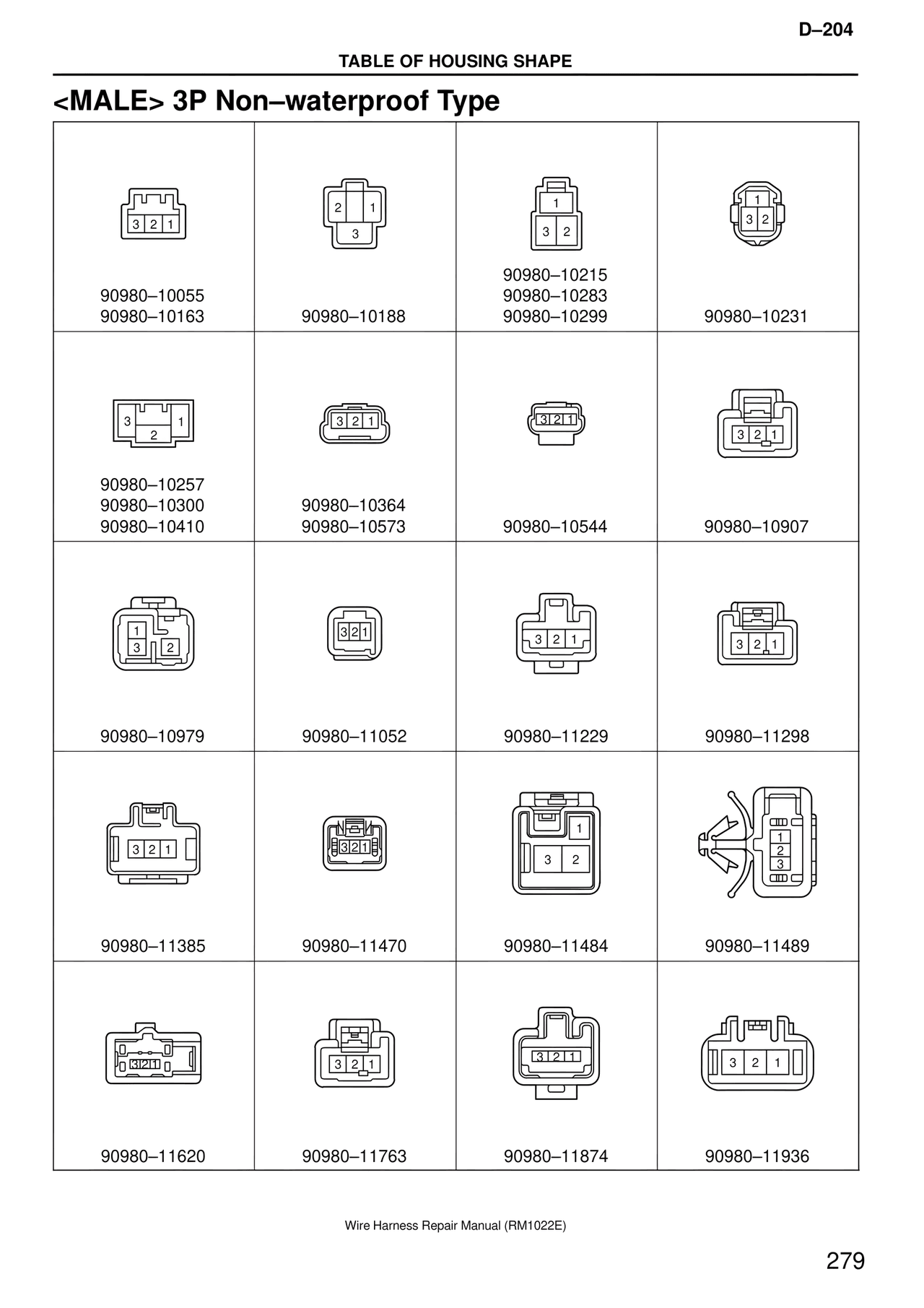

TABLE OF HOUSING SHAPE

<MALE> 3P Non–waterproof Type

3 2 1

90980–10055
90980–10163

2  1
3

90980–10188

1
3  2

90980–10215
90980–10283
90980–10299

1
3  2

90980–10231

3    1
2

90980–10257
90980–10300
90980–10410

3 2 1

90980–10364
90980–10573

3 2 1

90980–10544

3 2 1

90980–10907

1
3  2

90980–10979

3 2 1

90980–11052

3  2  1

90980–11229

3  2  1

90980–11298

3 2 1

90980–11385

3 2 1

90980–11470

1
3    2

90980–11484

1
2
3

90980–11489

0 K 2 1

90980–11620

3  2  1

90980–11763

3 2 1

90980–11874

3  2  1

90980–11936

Wire Harness Repair Manual (RM1022E)

279
