WH/Wire Harness — List of equivalent for the gold and tin–plated repair wire, page 315

HOUSING PART NUMBER LIST

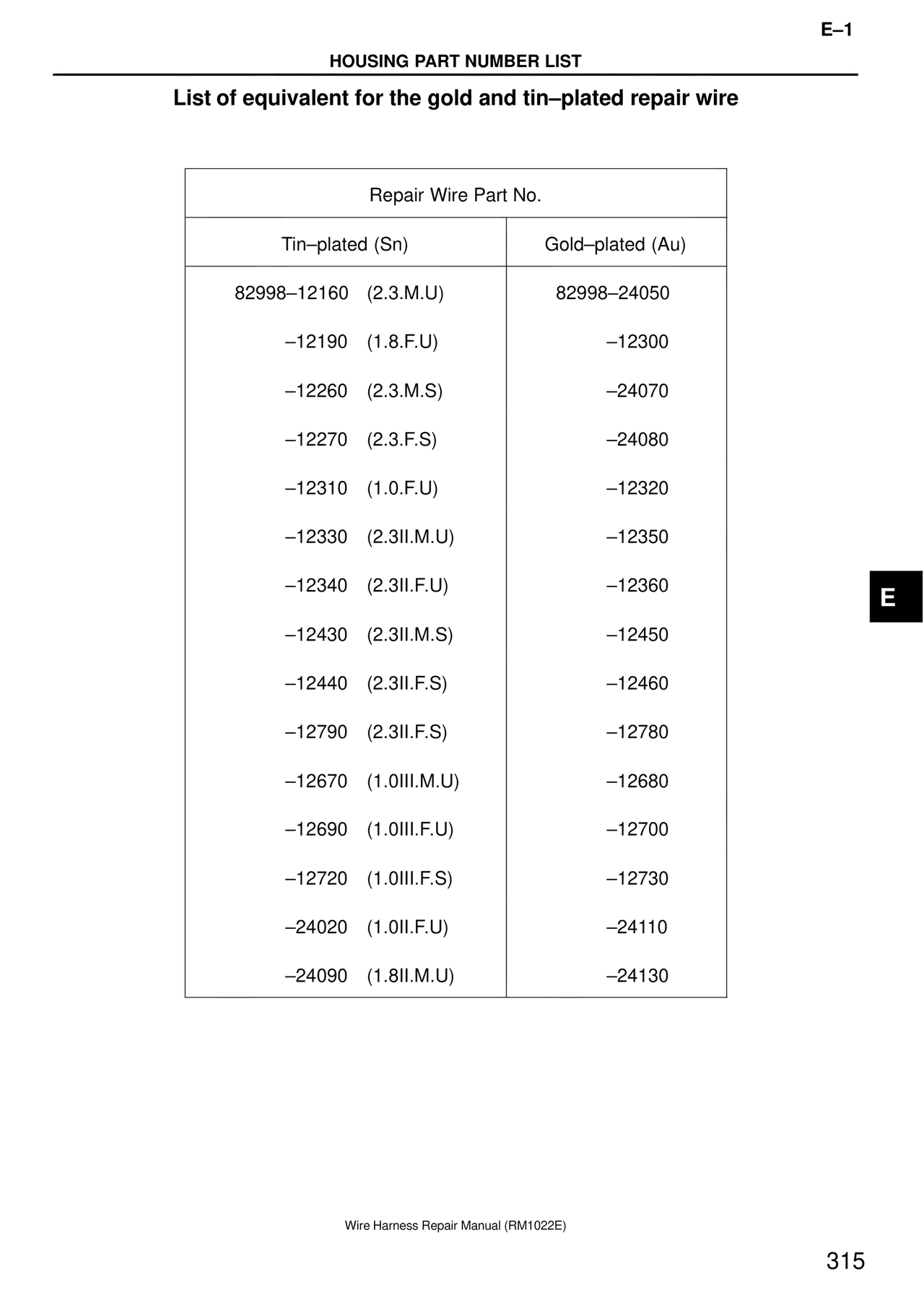

List of equivalent for the gold and tin–plated repair wire

Repair Wire Part No.

Tin–plated (Sn) | Gold–plated (Au)

82998–12160  (2.3.M.U)    82998–24050
–12190  (1.8.F.U)          –12300
–12260  (2.3.M.S)          –24070
–12270  (2.3.F.S)          –24080
–12310  (1.0.F.U)          –12320
–12330  (2.3II.M.U)        –12350
–12340  (2.3II.F.U)        –12360
–12430  (2.3II.M.S)        –12450
–12440  (2.3II.F.S)        –12460
–12790  (2.3II.F.S)        –12780
–12670  (1.0III.M.U)       –12680
–12690  (1.0III.F.U)       –12700
–12720  (1.0III.F.S)       –12730
–24020  (1.0II.F.U)        –24110
–24090  (1.8II.M.U)        –24130

Wire Harness Repair Manual (RM1022E)

315
