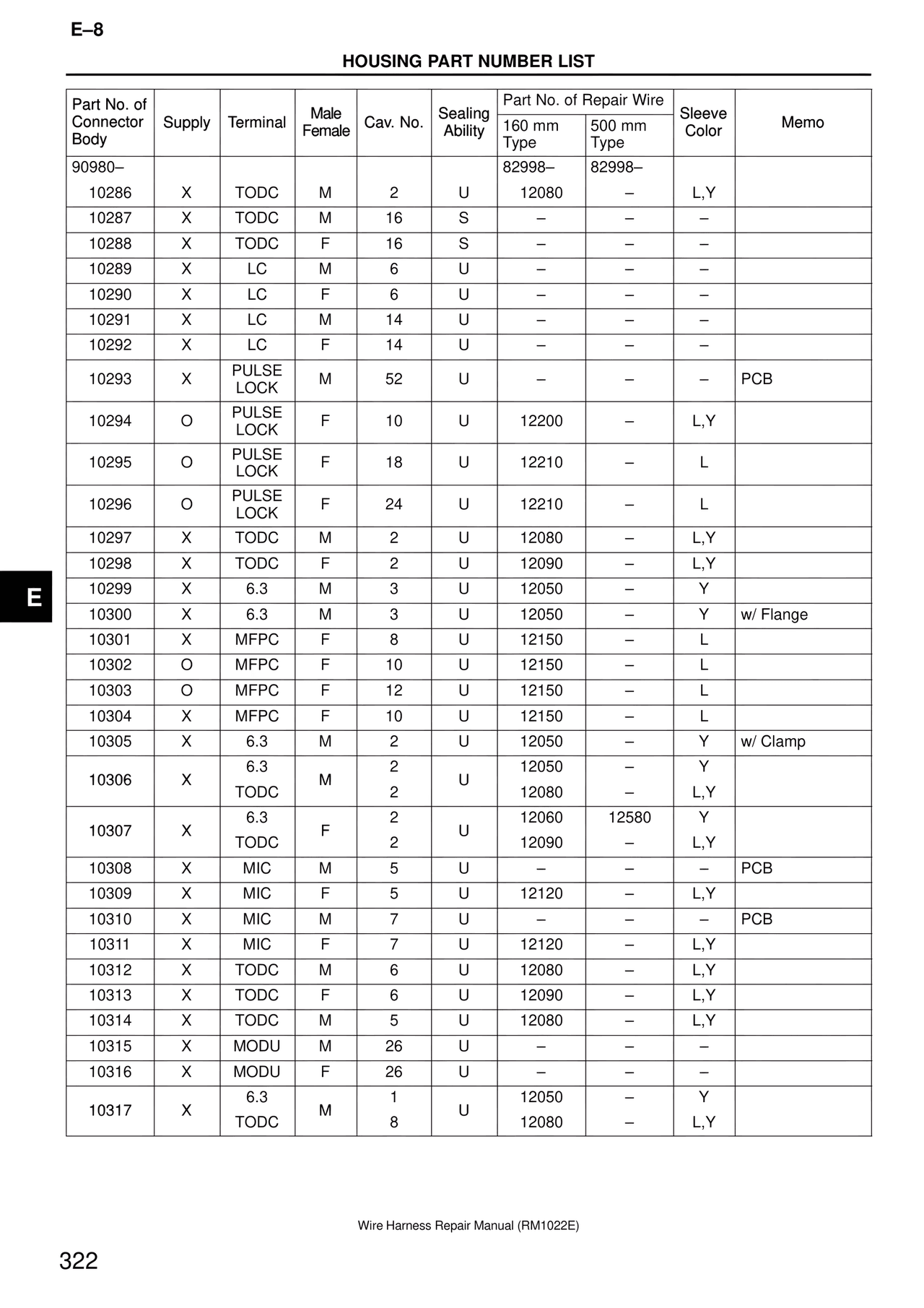

E–8 HOUSING PART NUMBER LIST Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire | Sleeve Color | Memo 160 mm Type | 500 mm Type 90980– | 82998– | 82998– 10286 | X | TODC | M | 2 | U | 12080 | – | L,Y 10287 | X | TODC | M | 16 | S | – | – | – 10288 | X | TODC | F | 16 | S | – | – | – 10289 | X | LC | M | 6 | U | – | – | – 10290 | X | LC | F | 6 | U | – | – | – 10291 | X | LC | M | 14 | U | – | – | – 10292 | X | LC | F | 14 | U | – | – | – 10293 | X | PULSE LOCK | M | 52 | U | – | – | – | PCB 10294 | O | PULSE LOCK | F | 10 | U | 12200 | – | L,Y 10295 | O | PULSE LOCK | F | 18 | U | 12210 | – | L 10296 | O | PULSE LOCK | F | 24 | U | 12210 | – | L 10297 | X | TODC | M | 2 | U | 12080 | – | L,Y 10298 | X | TODC | F | 2 | U | 12090 | – | L,Y 10299 | X | 6.3 | M | 3 | U | 12050 | – | Y 10300 | X | 6.3 | M | 3 | U | 12050 | – | Y | w/ Flange 10301 | X | MFPC | F | 8 | U | 12150 | – | L 10302 | O | MFPC | F | 10 | U | 12150 | – | L 10303 | O | MFPC | F | 12 | U | 12150 | – | L 10304 | X | MFPC | F | 10 | U | 12150 | – | L 10305 | X | 6.3 | M | 2 | U | 12050 | – | Y | w/ Clamp 10306 | X | 6.3 | M | 2 | U | 12050 | – | Y | | TODC | M | 2 | U | 12080 | – | L,Y 10307 | X | 6.3 | F | 2 | U | 12060 | 12580 | Y | | TODC | F | 2 | U | 12090 | – | L,Y 10308 | X | MIC | M | 5 | U | – | – | – | PCB 10309 | X | MIC | F | 5 | U | 12120 | – | L,Y 10310 | X | MIC | M | 7 | U | – | – | – | PCB 10311 | X | MIC | F | 7 | U | 12120 | – | L,Y 10312 | X | TODC | M | 6 | U | 12080 | – | L,Y 10313 | X | TODC | F | 6 | U | 12090 | – | L,Y 10314 | X | TODC | M | 5 | U | 12080 | – | L,Y 10315 | X | MODU | M | 26 | U | – | – | – 10316 | X | MODU | F | 26 | U | – | – | – 10317 | X | 6.3 | M | 1 | U | 12050 | – | Y | | TODC | M | 8 | U | 12080 | – | L,Y E Wire Harness Repair Manual (RM1022E) 322
