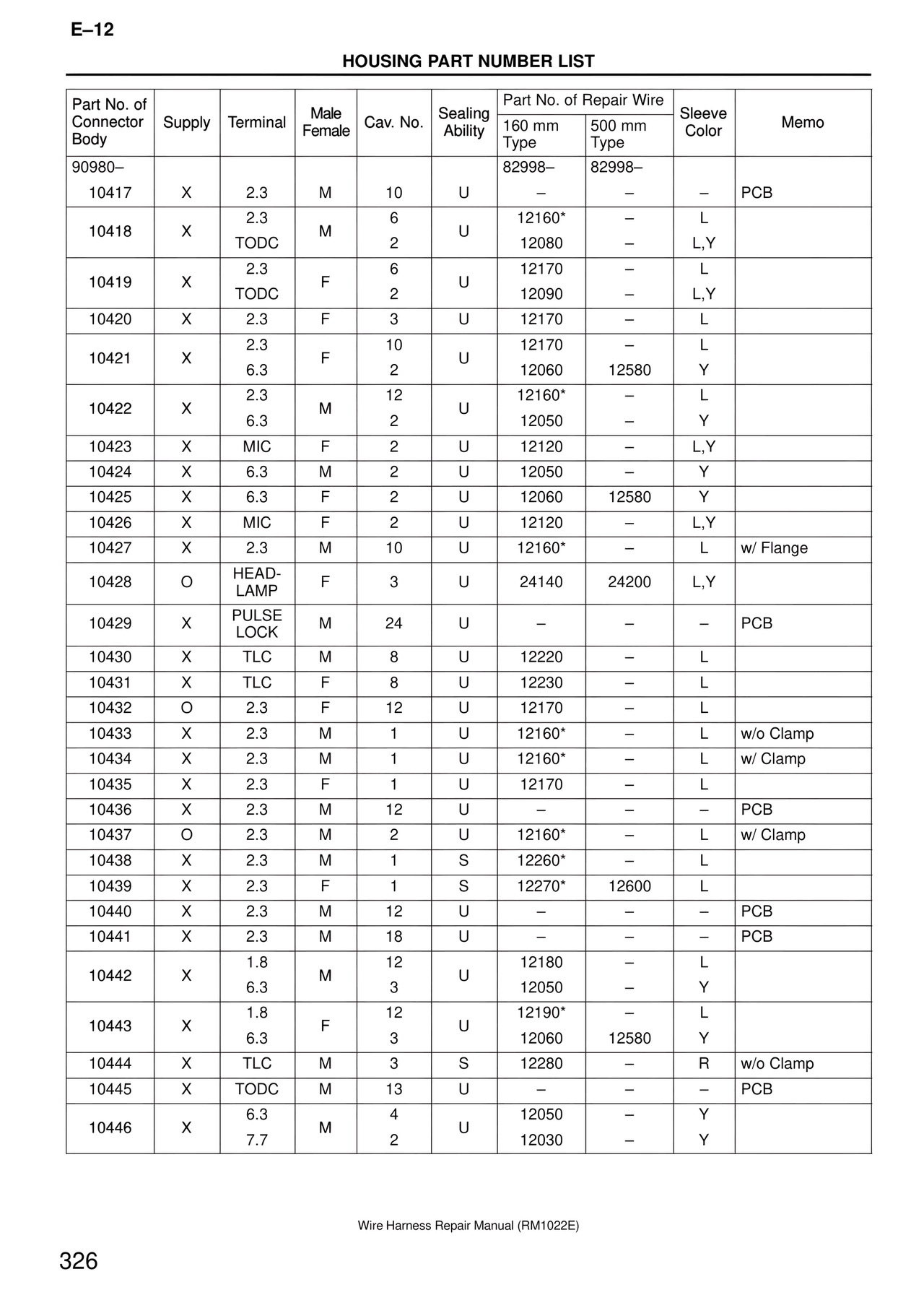

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
10417 | X | 2.3 | M | 10 | U | 82998– | 82998– | – | PCB
10418 | X | 2.3 | M | 6 | U | 12160* | – | L |
| | TODC | | 2 | | 12080 | – | L,Y |
10419 | X | 2.3 | F | 6 | U | 12170 | – | L |
| | TODC | | 2 | | 12090 | – | L,Y |
10420 | X | 2.3 | F | 3 | U | 12170 | – | L |
10421 | X | 2.3 | F | 10 | U | 12170 | – | L |
| | 6.3 | | 2 | | 12060 | 12580 | Y |
10422 | X | 2.3 | M | 12 | U | 12160* | – | L |
| | 6.3 | | 2 | | 12050 | – | Y |
10423 | X | MIC | F | 2 | U | 12120 | – | L,Y |
10424 | X | 6.3 | M | 2 | U | 12050 | – | Y |
10425 | X | 6.3 | F | 2 | U | 12060 | 12580 | Y |
10426 | X | MIC | F | 2 | U | 12120 | – | L,Y |
10427 | X | 2.3 | M | 10 | U | 12160* | – | L | w/ Flange
10428 | O | HEAD-LAMP | F | 3 | U | 24140 | 24200 | L,Y |
10429 | X | PULSE LOCK | M | 24 | U | – | – | – | PCB
10430 | X | TLC | M | 8 | U | 12220 | – | L |
10431 | X | TLC | F | 8 | U | 12230 | – | L |
10432 | O | 2.3 | F | 12 | U | 12170 | – | L |
10433 | X | 2.3 | M | 1 | U | 12160* | – | L | w/o Clamp
10434 | X | 2.3 | M | 1 | U | 12160* | – | L | w/ Clamp
10435 | X | 2.3 | F | 1 | U | 12170 | – | L |
10436 | X | 2.3 | M | 12 | U | – | – | – | PCB
10437 | O | 2.3 | M | 2 | U | 12160* | – | L | w/ Clamp
10438 | X | 2.3 | M | 1 | S | 12260* | – | L |
10439 | X | 2.3 | F | 1 | S | 12270* | 12600 | L |
10440 | X | 2.3 | M | 12 | U | – | – | – | PCB
10441 | X | 2.3 | M | 18 | U | – | – | – | PCB
10442 | X | 1.8 | M | 12 | U | 12180 | – | L |
| | 6.3 | | 3 | | 12050 | – | Y |
10443 | X | 1.8 | F | 12 | U | 12190* | – | L |
| | 6.3 | | 3 | | 12060 | 12580 | Y |
10444 | X | TLC | M | 3 | S | 12280 | – | R | w/o Clamp
10445 | X | TODC | M | 13 | U | – | – | – | PCB
10446 | X | 6.3 | M | 4 | U | 12050 | – | Y |
| | 7.7 | | 2 | | 12030 | – | Y |
