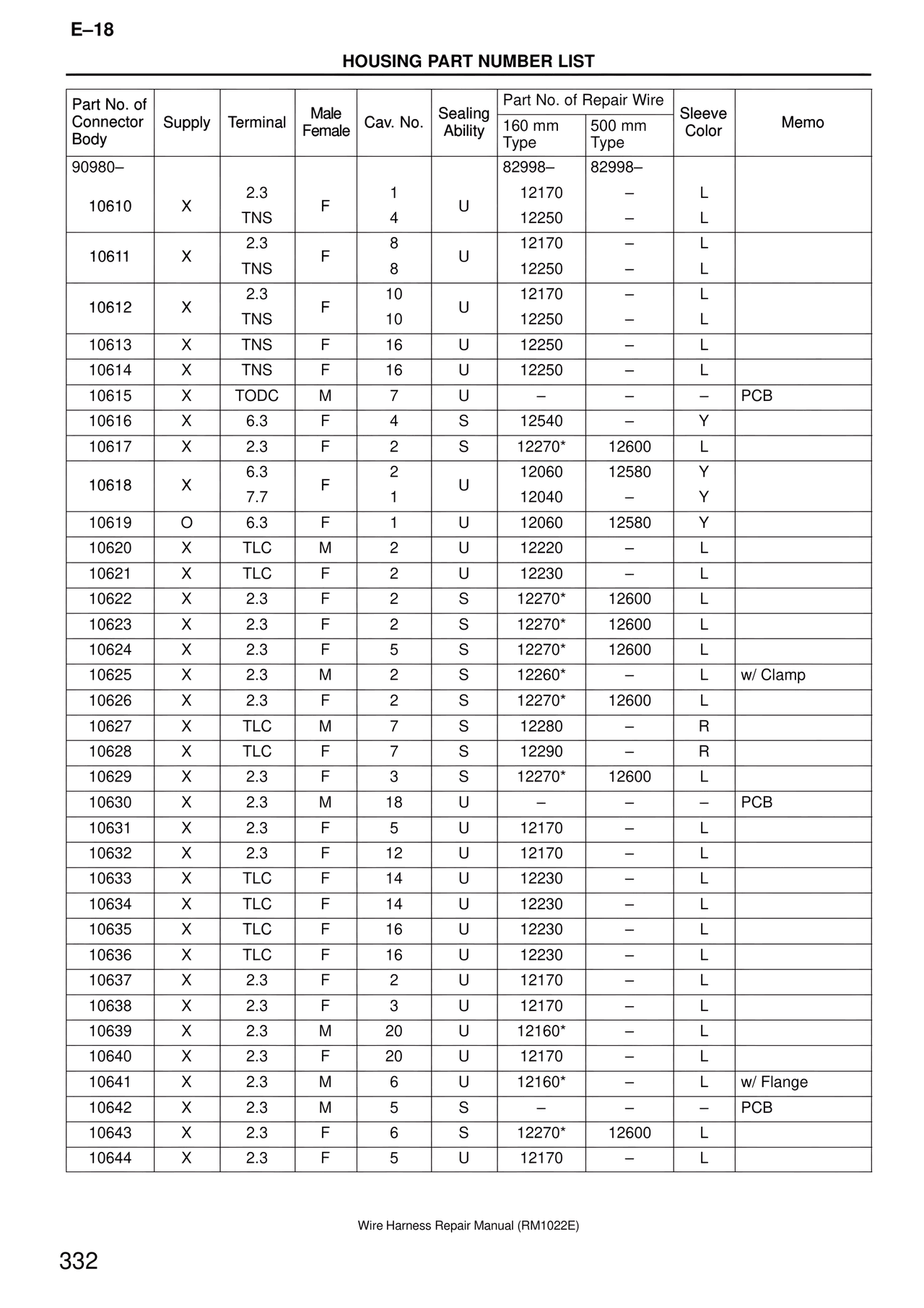

E–18 HOUSING PART NUMBER LIST Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo 90980– 82998– 82998– 10610 | X | 2.3 | F | 1 | U | 12170 | – | L 10610 | X | TNS | F | 4 | U | 12250 | – | L 10611 | X | 2.3 | F | 8 | U | 12170 | – | L 10611 | X | TNS | F | 8 | U | 12250 | – | L 10612 | X | 2.3 | F | 10 | U | 12170 | – | L 10612 | X | TNS | F | 10 | U | 12250 | – | L 10613 | X | TNS | F | 16 | U | 12250 | – | L 10614 | X | TNS | F | 16 | U | 12250 | – | L 10615 | X | TODC | M | 7 | U | – | – | – | PCB 10616 | X | 6.3 | F | 4 | S | 12540 | – | Y 10617 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10618 | X | 6.3 | F | 2 | U | 12060 | 12580 | Y 10618 | X | 7.7 | F | 1 | U | 12040 | – | Y 10619 | O | 6.3 | F | 1 | U | 12060 | 12580 | Y 10620 | X | TLC | M | 2 | U | 12220 | – | L 10621 | X | TLC | F | 2 | U | 12230 | – | L 10622 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10623 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10624 | X | 2.3 | F | 5 | S | 12270* | 12600 | L 10625 | X | 2.3 | M | 2 | S | 12260* | – | L | w/ Clamp 10626 | X | 2.3 | F | 2 | S | 12270* | 12600 | L 10627 | X | TLC | M | 7 | S | 12280 | – | R 10628 | X | TLC | F | 7 | S | 12290 | – | R 10629 | X | 2.3 | F | 3 | S | 12270* | 12600 | L 10630 | X | 2.3 | M | 18 | U | – | – | – | PCB 10631 | X | 2.3 | F | 5 | U | 12170 | – | L 10632 | X | 2.3 | F | 12 | U | 12170 | – | L 10633 | X | TLC | F | 14 | U | 12230 | – | L 10634 | X | TLC | F | 14 | U | 12230 | – | L 10635 | X | TLC | F | 16 | U | 12230 | – | L 10636 | X | TLC | F | 16 | U | 12230 | – | L 10637 | X | 2.3 | F | 2 | U | 12170 | – | L 10638 | X | 2.3 | F | 3 | U | 12170 | – | L 10639 | X | 2.3 | M | 20 | U | 12160* | – | L 10640 | X | 2.3 | F | 20 | U | 12170 | – | L 10641 | X | 2.3 | M | 6 | U | 12160* | – | L | w/ Flange 10642 | X | 2.3 | M | 5 | S | – | – | – | PCB 10643 | X | 2.3 | F | 6 | S | 12270* | 12600 | L 10644 | X | 2.3 | F | 5 | U | 12170 | – | L Wire Harness Repair Manual (RM1022E) 332
