E–25

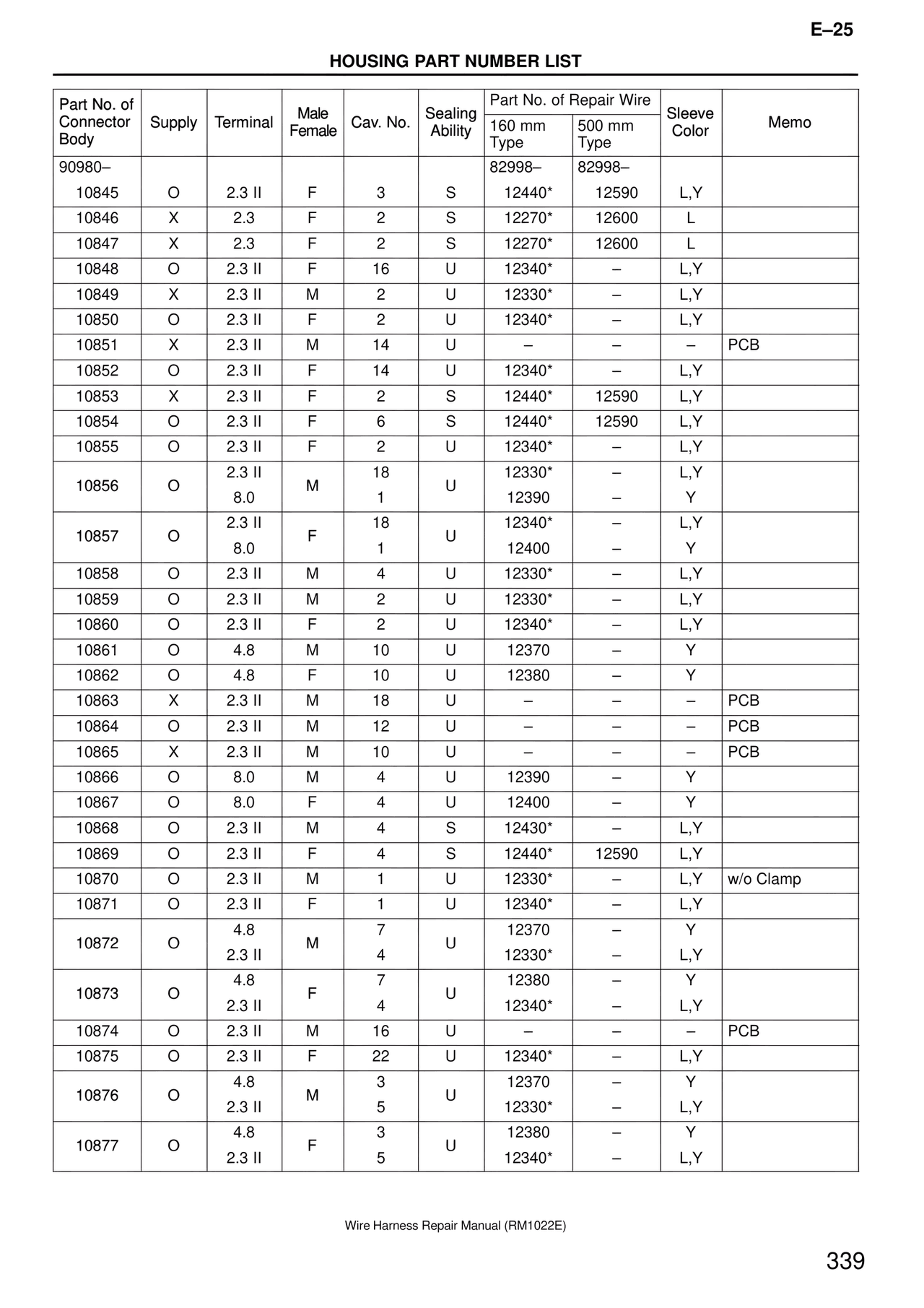

HOUSING PART NUMBER LIST
Part No. of Connector Body | Supply | Terminal | Male Female | Cav. No. | Sealing Ability | Part No. of Repair Wire 160 mm Type | Part No. of Repair Wire 500 mm Type | Sleeve Color | Memo
90980–
82998–
82998–
10845 | O | 2.3 II | F | 3 | S | 12440* | 12590 | L,Y
10846 | X | 2.3 | F | 2 | S | 12270* | 12600 | L
10847 | X | 2.3 | F | 2 | S | 12270* | 12600 | L
10848 | O | 2.3 II | F | 16 | U | 12340* | – | L,Y
10849 | X | 2.3 II | M | 2 | U | 12330* | – | L,Y
10850 | O | 2.3 II | F | 2 | U | 12340* | – | L,Y
10851 | X | 2.3 II | M | 14 | U | – | – | – | PCB
10852 | O | 2.3 II | F | 14 | U | 12340* | – | L,Y
10853 | X | 2.3 II | F | 2 | S | 12440* | 12590 | L,Y
10854 | O | 2.3 II | F | 6 | S | 12440* | 12590 | L,Y
10855 | O | 2.3 II | F | 2 | U | 12340* | – | L,Y
10856 | O | 2.3 II | M | 18 | U | 12330* | – | L,Y
10856 | O | 8.0 | M | 1 | U | 12390 | – | Y
10857 | O | 2.3 II | F | 18 | U | 12340* | – | L,Y
10857 | O | 8.0 | F | 1 | U | 12400 | – | Y
10858 | O | 2.3 II | M | 4 | U | 12330* | – | L,Y
10859 | O | 2.3 II | M | 2 | U | 12330* | – | L,Y
10860 | O | 2.3 II | F | 2 | U | 12340* | – | L,Y
10861 | O | 4.8 | M | 10 | U | 12370 | – | Y
10862 | O | 4.8 | F | 10 | U | 12380 | – | Y
10863 | X | 2.3 II | M | 18 | U | – | – | – | PCB
10864 | O | 2.3 II | M | 12 | U | – | – | – | PCB
10865 | X | 2.3 II | M | 10 | U | – | – | – | PCB
10866 | O | 8.0 | M | 4 | U | 12390 | – | Y
10867 | O | 8.0 | F | 4 | U | 12400 | – | Y
10868 | O | 2.3 II | M | 4 | S | 12430* | – | L,Y
10869 | O | 2.3 II | F | 4 | S | 12440* | 12590 | L,Y
10870 | O | 2.3 II | M | 1 | U | 12330* | – | L,Y | w/o Clamp
10871 | O | 2.3 II | F | 1 | U | 12340* | – | L,Y
10872 | O | 4.8 | M | 7 | U | 12370 | – | Y
10872 | O | 2.3 II | M | 4 | U | 12330* | – | L,Y
10873 | O | 4.8 | F | 7 | U | 12380 | – | Y
10873 | O | 2.3 II | F | 4 | U | 12340* | – | L,Y
10874 | O | 2.3 II | M | 16 | U | – | – | – | PCB
10875 | O | 2.3 II | F | 22 | U | 12340* | – | L,Y
10876 | O | 4.8 | M | 3 | U | 12370 | – | Y
10876 | O | 2.3 II | M | 5 | U | 12330* | – | L,Y
10877 | O | 4.8 | F | 3 | U | 12380 | – | Y
10877 | O | 2.3 II | F | 5 | U | 12340* | – | L,Y
Wire Harness Repair Manual (RM1022E)
339
