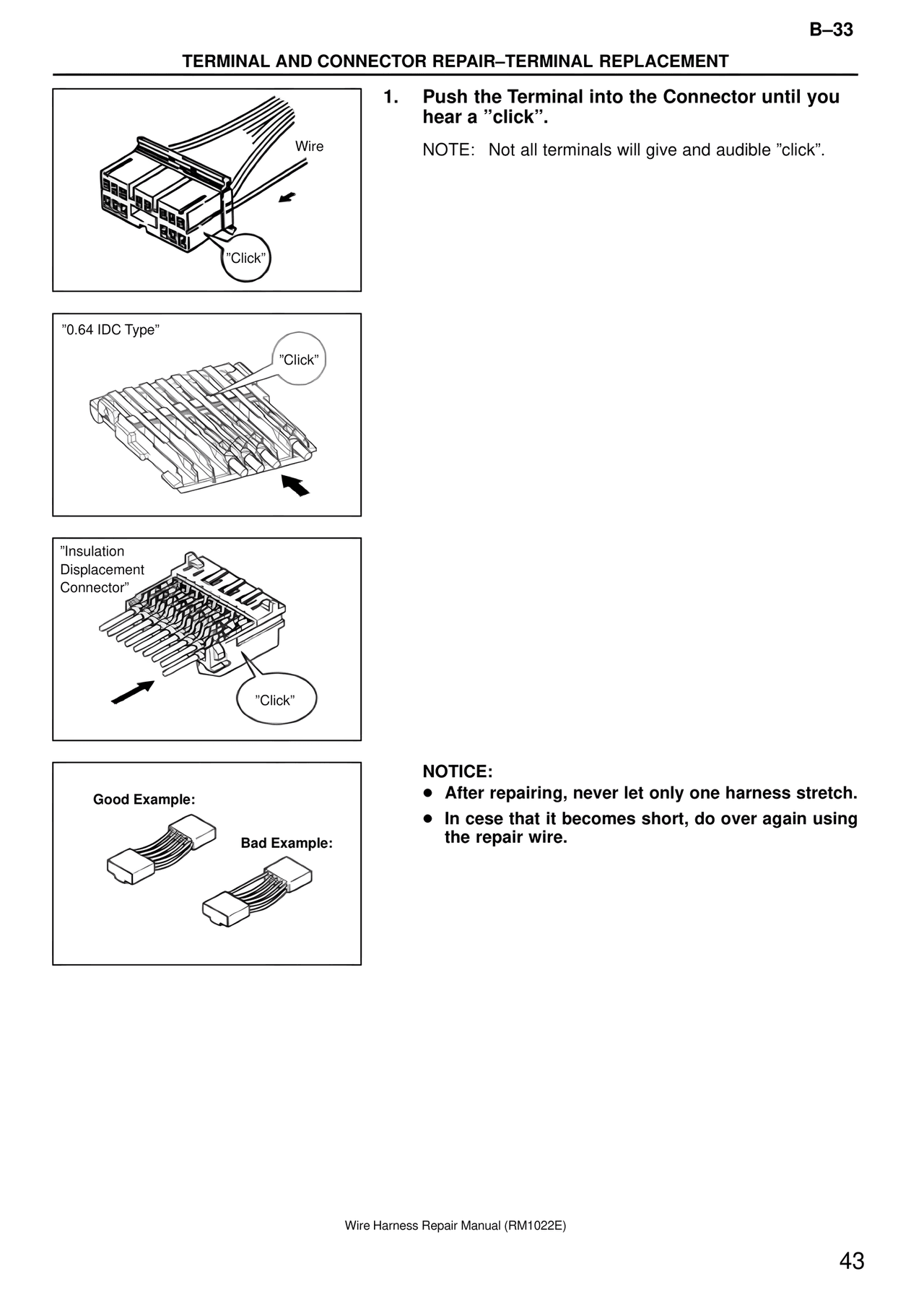

B–33 TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT Wire "Click" 1. Push the Terminal into the Connector until you hear a "click". NOTE: Not all terminals will give and audible "click". "0.64 IDC Type" "Click" "Insulation Displacement Connector" "Click" Good Example: Bad Example: NOTICE: ● After repairing, never let only one harness stretch. ● In cese that it becomes short, do over again using the repair wire. Wire Harness Repair Manual (RM1022E) 43
