B–35

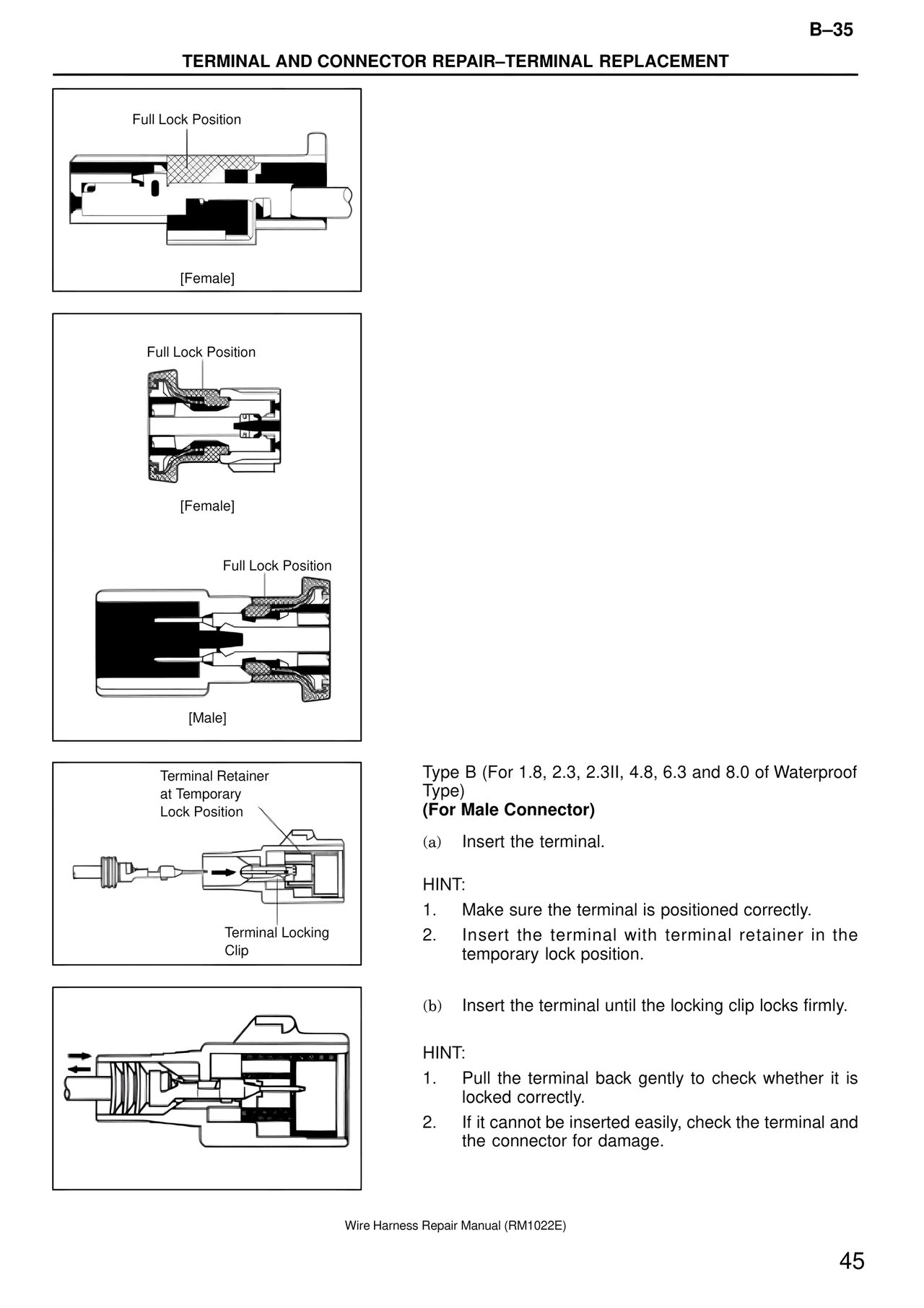

TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Full Lock Position
[Female]
Full Lock Position
[Female]
Full Lock Position
[Male]
Terminal Retainer
at Temporary
Lock Position
Terminal Locking
Clip
Type B (For 1.8, 2.3, 2.3II, 4.8, 6.3 and 8.0 of Waterproof
Type)
(For Male Connector)
(a) Insert the terminal.
HINT:
1. Make sure the terminal is positioned correctly.
2. Insert the terminal with terminal retainer in the
temporary lock position.
(b) Insert the terminal until the locking clip locks firmly.
HINT:
1. Pull the terminal back gently to check whether it is
locked correctly.
2. If it cannot be inserted easily, check the terminal and
the connector for damage.
Wire Harness Repair Manual (RM1022E)
45
