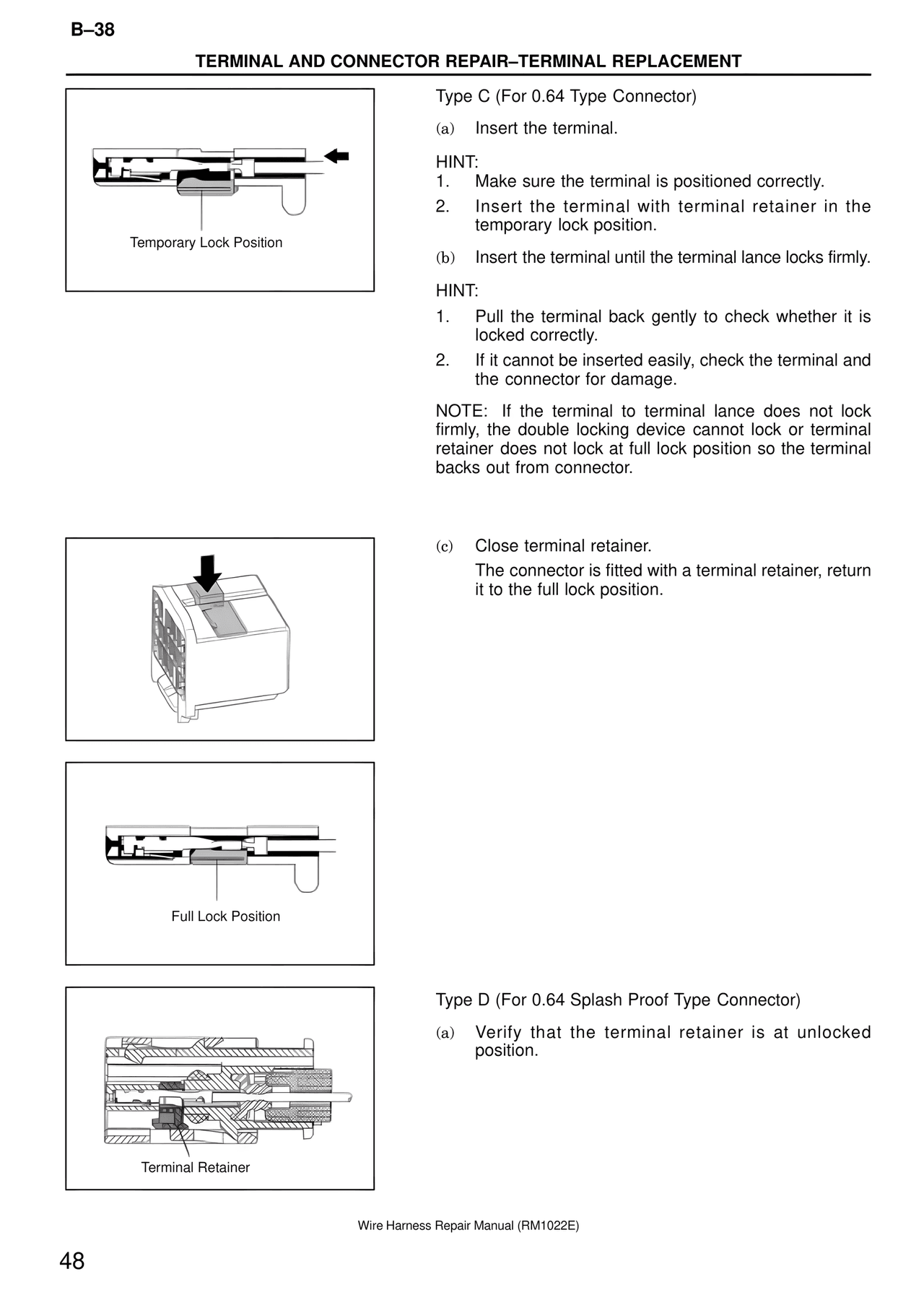

B–38
TERMINAL AND CONNECTOR REPAIR–TERMINAL REPLACEMENT
Temporary Lock Position
Type C (For 0.64 Type Connector)
(a) Insert the terminal.
HINT:
1. Make sure the terminal is positioned correctly.
2. Insert the terminal with terminal retainer in the temporary lock position.
(b) Insert the terminal until the terminal lance locks firmly.
HINT:
1. Pull the terminal back gently to check whether it is locked correctly.
2. If it cannot be inserted easily, check the terminal and the connector for damage.
NOTE: If the terminal to terminal lance does not lock firmly, the double locking device cannot lock or terminal retainer does not lock at full lock position so the terminal backs out from connector.
(c) Close terminal retainer.
The connector is fitted with a terminal retainer, return it to the full lock position.
Full Lock Position
Terminal Retainer
Type D (For 0.64 Splash Proof Type Connector)
(a) Verify that the terminal retainer is at unlocked position.
Wire Harness Repair Manual (RM1022E)
48
