WH/Wire Harness — <female> 2P Waterproof Type, page 78

D–3

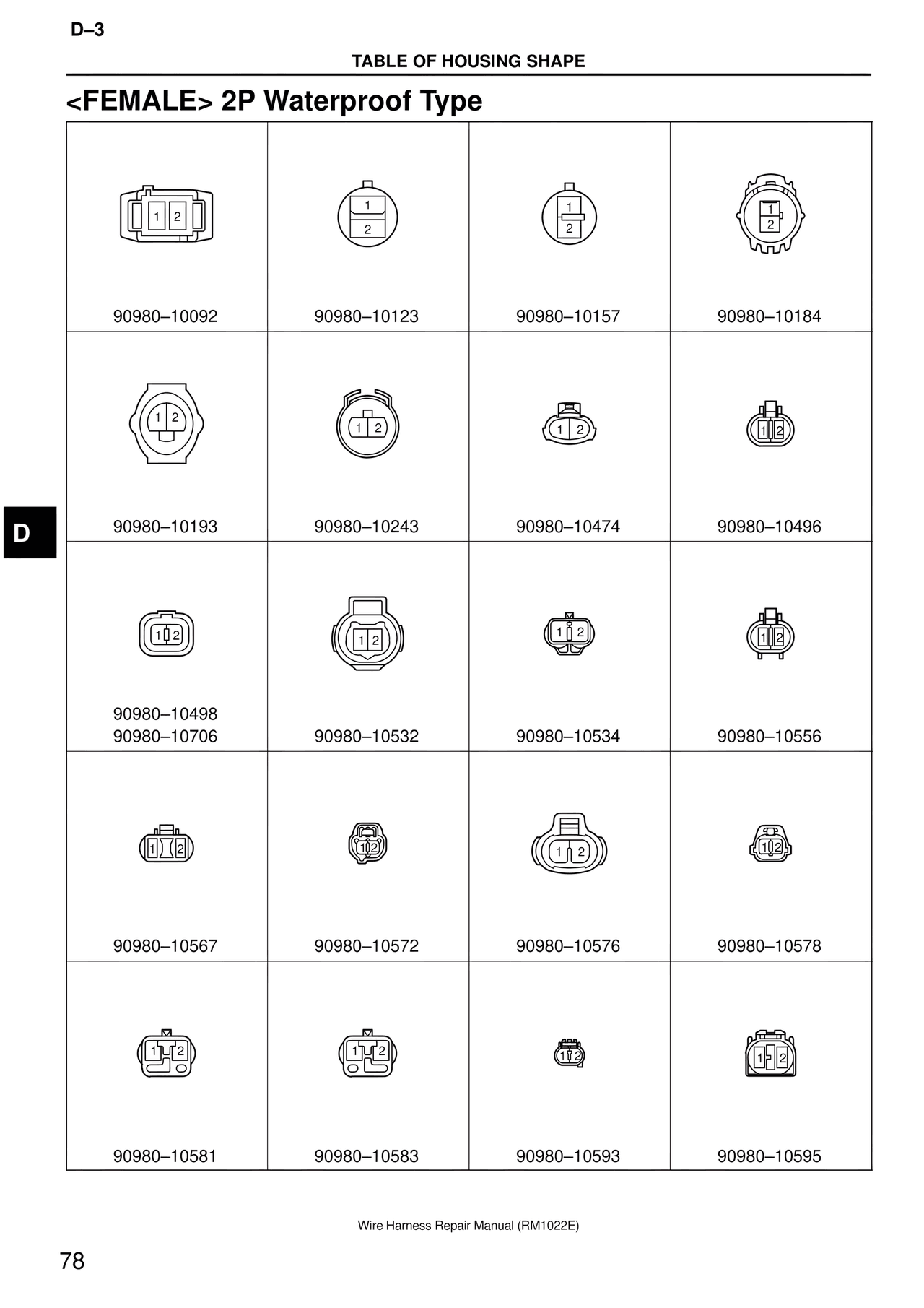

TABLE OF HOUSING SHAPE

<FEMALE> 2P Waterproof Type

1  2
90980–10092

1
2
90980–10123

1
2
90980–10157

1
2
90980–10184

1  2
90980–10193

1  2
90980–10243

1  2
90980–10474

1  2
90980–10496

D

1  2
90980–10498
90980–10706

1  2
90980–10532

1  2
90980–10534

1  2
90980–10556

1  2
90980–10567

1  2
90980–10572

1  2
90980–10576

1  2
90980–10578

1  2
90980–10581

1  2
90980–10583

1  2
90980–10593

1  2
90980–10595

Wire Harness Repair Manual (RM1022E)

78
