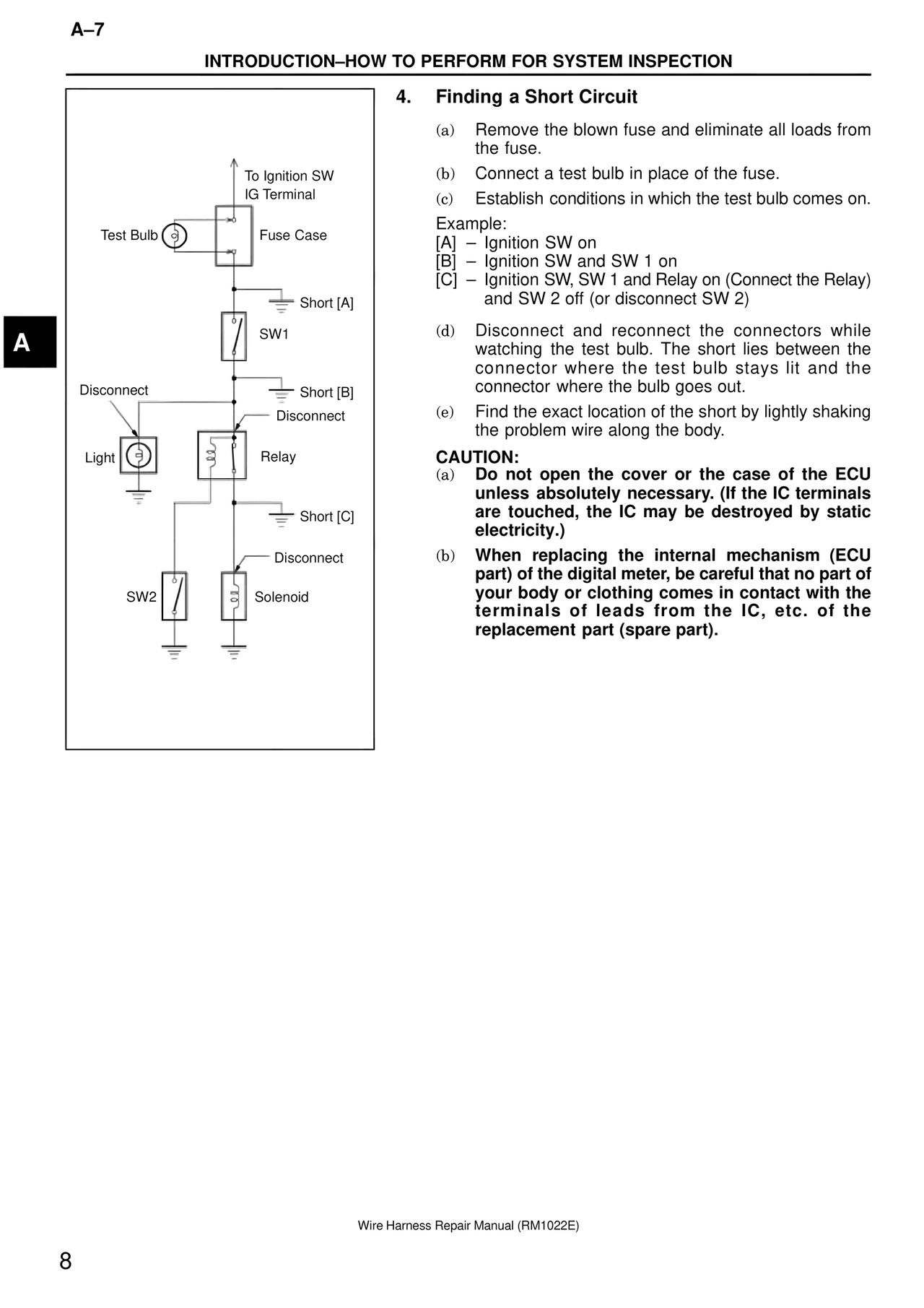

A–7 INTRODUCTION–HOW TO PERFORM FOR SYSTEM INSPECTION To Ignition SW IG Terminal Test Bulb Fuse Case Short [A] SW1 Disconnect Short [B] Disconnect Light Relay Short [C] Disconnect SW2 Solenoid 4. Finding a Short Circuit (a) Remove the blown fuse and eliminate all loads from the fuse. (b) Connect a test bulb in place of the fuse. (c) Establish conditions in which the test bulb comes on. Example: [A] – Ignition SW on [B] – Ignition SW and SW 1 on [C] – Ignition SW, SW 1 and Relay on (Connect the Relay) and SW 2 off (or disconnect SW 2) (d) Disconnect and reconnect the connectors while watching the test bulb. The short lies between the connector where the test bulb stays lit and the connector where the bulb goes out. (e) Find the exact location of the short by lightly shaking the problem wire along the body. CAUTION: (a) Do not open the cover or the case of the ECU unless absolutely necessary. (If the IC terminals are touched, the IC may be destroyed by static electricity.) (b) When replacing the internal mechanism (ECU part) of the digital meter, be careful that no part of your body or clothing comes in contact with the terminals of leads from the IC, etc. of the replacement part (spare part). A Wire Harness Repair Manual (RM1022E) 8
