D–8

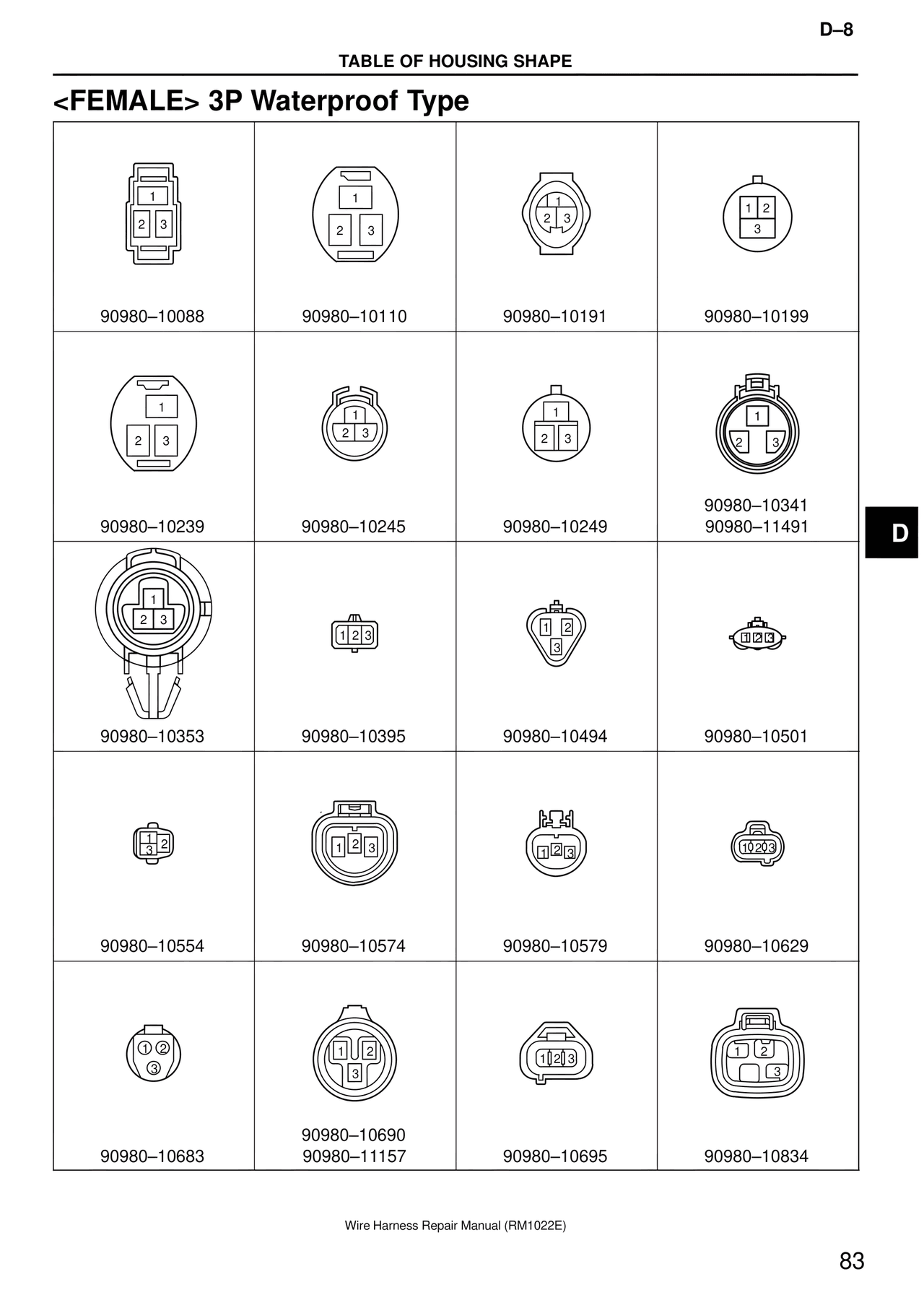

TABLE OF HOUSING SHAPE

<FEMALE> 3P Waterproof Type

1
2  3

90980–10088

1
2  3

90980–10110

2  3

90980–10191

1  2
3

90980–10199

1
2  3

90980–10239

1
2  3

90980–10245

1
2  3

90980–10249

1
2  3

90980–10341
90980–11491

1
2  3

90980–10353

1 2 3

90980–10395

1  2
3

90980–10494

1 2 3

90980–10501

1
3  2

90980–10554

1  2  3

90980–10574

1 2 3

90980–10579

10 2 3

90980–10629

1 2
3

90980–10683

1  2
3

90980–10690
90980–11157

1 2 3

90980–10695

1  2
3

90980–10834

D

Wire Harness Repair Manual (RM1022E)

83
