D–11

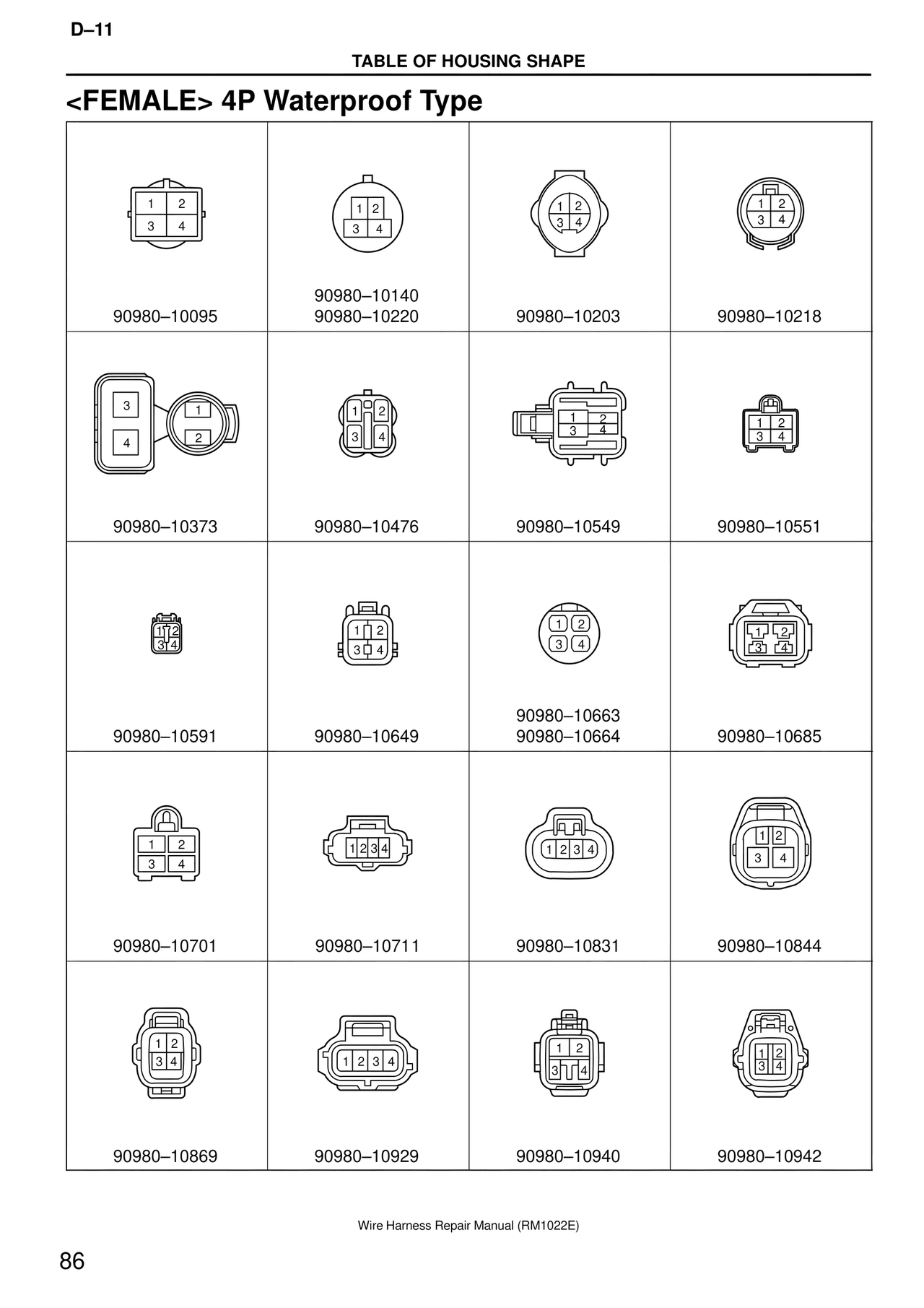

TABLE OF HOUSING SHAPE

<FEMALE> 4P Waterproof Type

1  2
3  4

90980–10095

1  2
3  4

90980–10140
90980–10220

1  2
3  4

90980–10203

1  2
3  4

90980–10218

3
4

1
2

90980–10373

1  2
3  4

90980–10476

1  2
3  4

90980–10549

1  2
3  4

90980–10551

1 2
3 4

90980–10591

1  2
3  4

90980–10649

1  2
3  4

90980–10663
90980–10664

1  2
3  4

90980–10685

1  2
3  4

90980–10701

1 2 3 4

90980–10711

1 2 3 4

90980–10831

1  2
3  4

90980–10844

1  2
3  4

90980–10869

1 2 3 4

90980–10929

1  2
3  4

90980–10940

1  2
3  4

90980–10942

Wire Harness Repair Manual (RM1022E)

86
