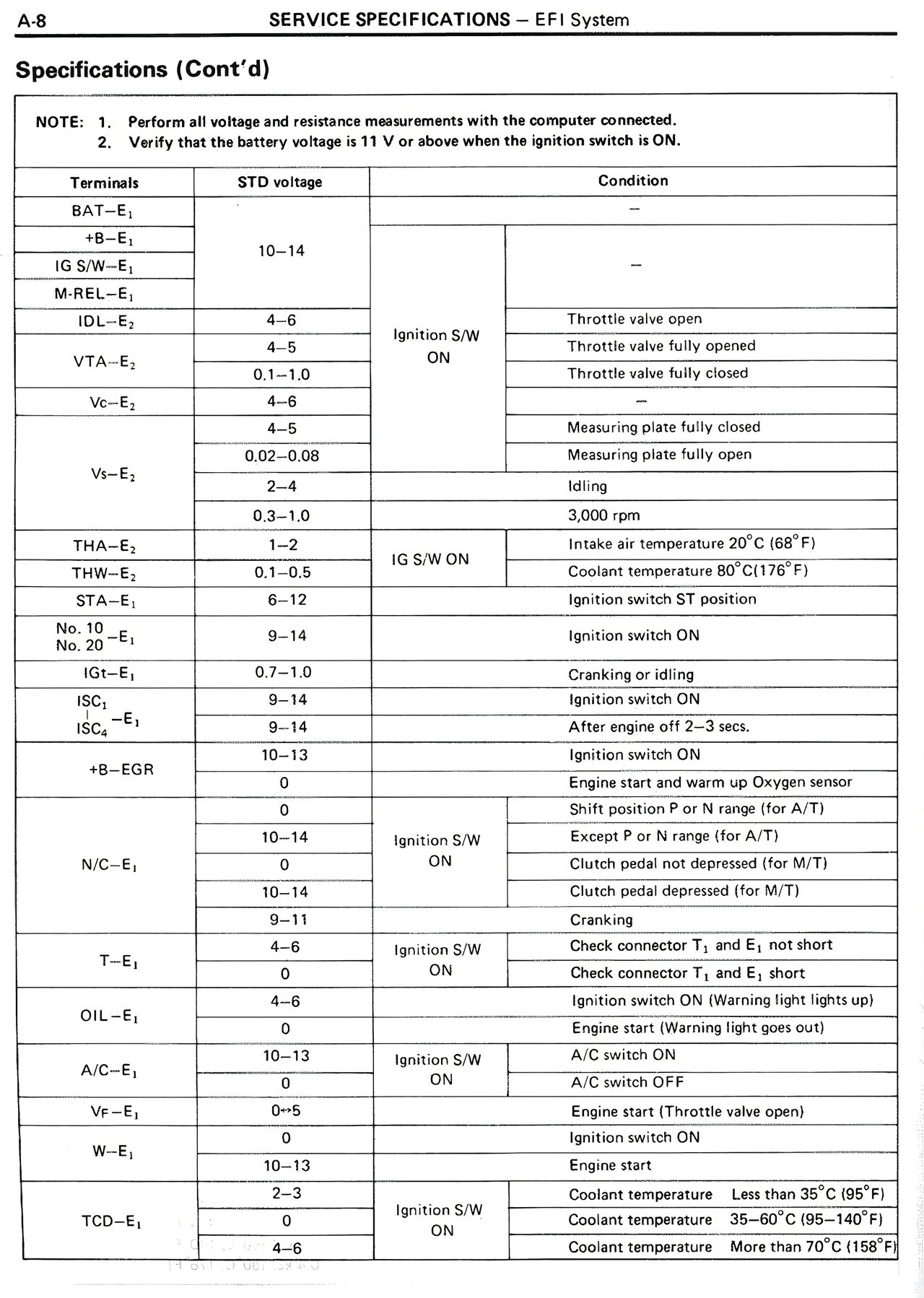

Specifications (Cont'd)
NOTE: 1. Perform all voltage and resistance measurements with the computer connected.
2. Verify that the battery voltage is 11 V or above when the ignition switch is ON.
Terminals | STD voltage | Condition
BAT-E₁ | — | —
+B-E₁ | 10~14 | —
IG S/W-E₁ | | Ignition S/W ON
M·REL-E₁ | |
IDL-E₂ | 4~6 | Throttle valve open
| 4~5 | Throttle valve fully opened
VTA-E₂ | 0.1~1.0 | Throttle valve fully closed
Vc-E₂ | 4~6 | —
| 4~5 | Measuring plate fully closed
Vx-E₂ | 0.02~0.08 | Measuring plate fully open
| 2~4 | Idling
| 0.3~1.0 | 3,000 rpm
THA-E₂ | 1~2 | Intake air temperature 20°C (68°F)
THW-E₂ | 0.1~0.5 | Coolant temperature 80°C(176°F)
STA-E₁ | 6~12 | IG S/W ON | Ignition switch ST position
No. 10/No. 20-E₁ | 9~14 | Ignition switch ON
IGt-E₁ | 0.7~1.0 | Cranking or idling
ISC₁-E₁ | 9~14 | Ignition switch ON
ISC₂ | 9~14 | After engine off 2~3 secs.
+B-EGR | 10~13 | Ignition switch ON
| 0 | Engine start and warm up Oxygen sensor
| 0 | Shift position P or N range (for A/T)
N/C-E₁ | 10~14 | Ignition S/W ON | Except P or N range (for A/T)
| 0 | Clutch pedal not depressed (for M/T)
| 10~14 | Clutch pedal depressed (for M/T)
| 9~11 | Cranking
T-E₁ | 4~6 | Ignition S/W ON | Check connector T₁ and E₁ not short
| 0 | Check connector T₁ and E₁ short
OIL-E₁ | 4~6 | Ignition switch ON (Warning light lights up)
| 0 | Engine start (Warning light goes out)
A/C-E₁ | 10~13 | Ignition S/W ON | A/C switch ON
| 0 | A/C switch OFF
VF-E₁ | 0~5 | Engine start (Throttle valve open)
| 0 | Ignition switch ON
W-E₁ | 10~13 | Engine start
TCD-E₁ | 2~3 | Ignition S/W ON | Coolant temperature Less than 35°C (95°F)
| 0 | Coolant temperature 35~60°C (95~140°F)
| 4~6 | Coolant temperature More than 70°C (158°F)
