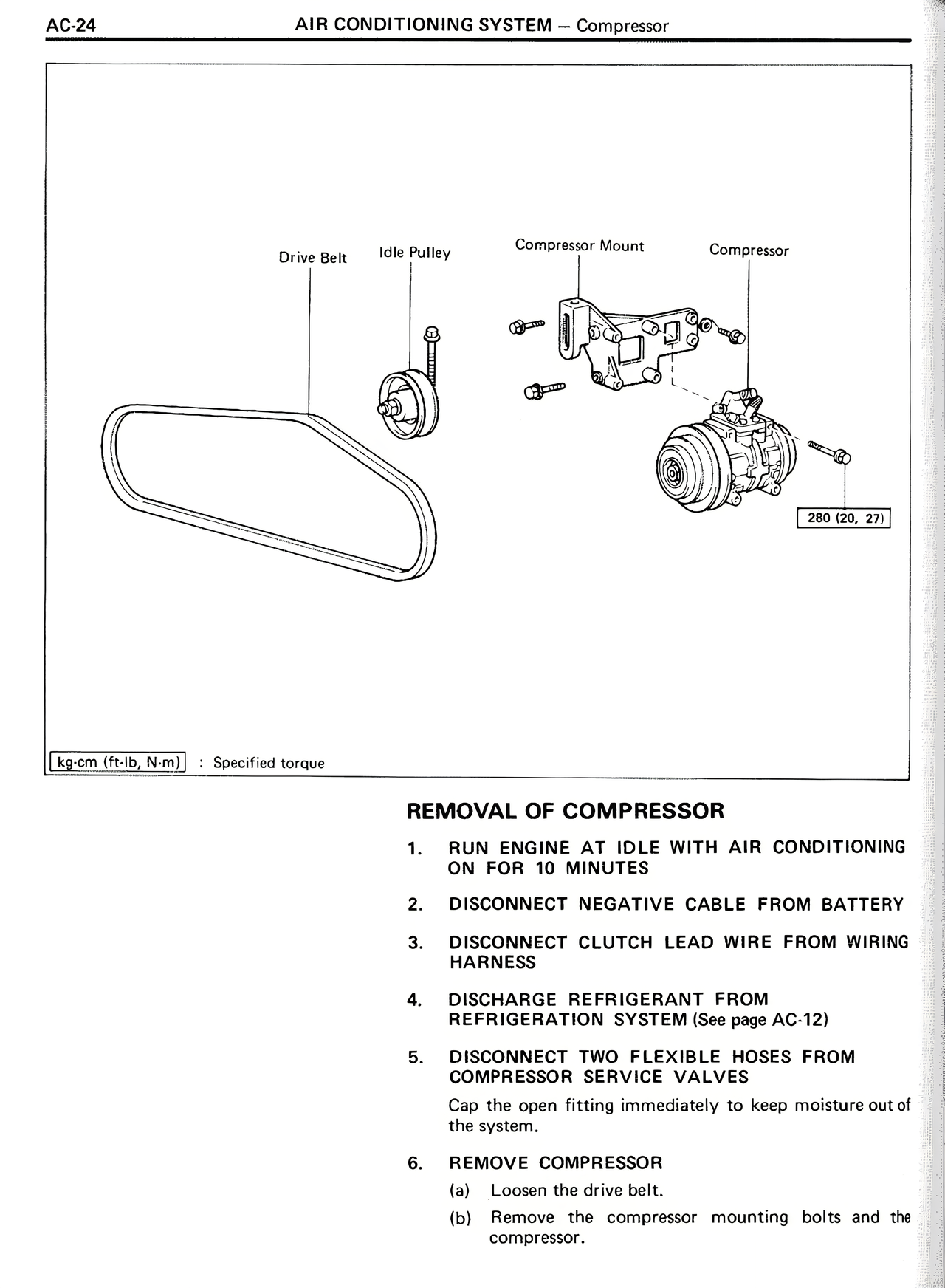

AC-24 AIR CONDITIONING SYSTEM — Compressor Drive Belt Idle Pulley Compressor Mount Compressor kg-cm (ft-lb, N-m) : Specified torque 280 (20, 27) REMOVAL OF COMPRESSOR 1. RUN ENGINE AT IDLE WITH AIR CONDITIONING ON FOR 10 MINUTES 2. DISCONNECT NEGATIVE CABLE FROM BATTERY 3. DISCONNECT CLUTCH LEAD WIRE FROM WIRING HARNESS 4. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM (See page AC-12) 5. DISCONNECT TWO FLEXIBLE HOSES FROM COMPRESSOR SERVICE VALVES Cap the open fitting immediately to keep moisture out of the system. 6. REMOVE COMPRESSOR (a) Loosen the drive belt. (b) Remove the compressor mounting bolts and the compressor.
