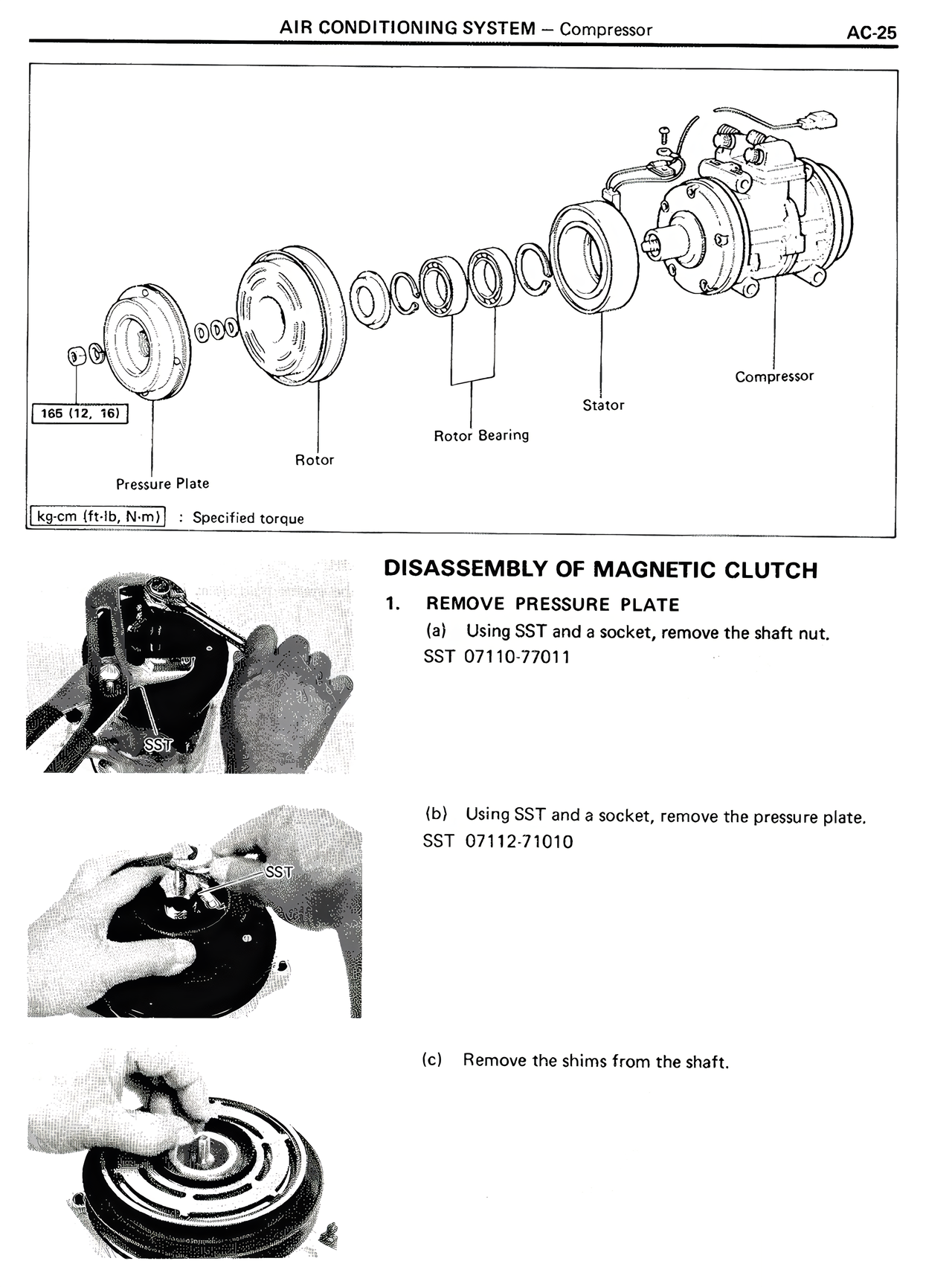

AIR CONDITIONING SYSTEM — Compressor AC-25 [Diagram showing exploded view with labels:] Pressure Plate Rotor Rotor Bearing Stator Compressor [165 [12, 16]] kg·cm {ft-lb, N·m} : Specified torque DISASSEMBLY OF MAGNETIC CLUTCH 1. REMOVE PRESSURE PLATE (a) Using SST and a socket, remove the shaft nut. SST 07110 72011 (b) Using SST and a socket, remove the pressure plate. SST 07112 71010 (c) Remove the shims from the shaft.
