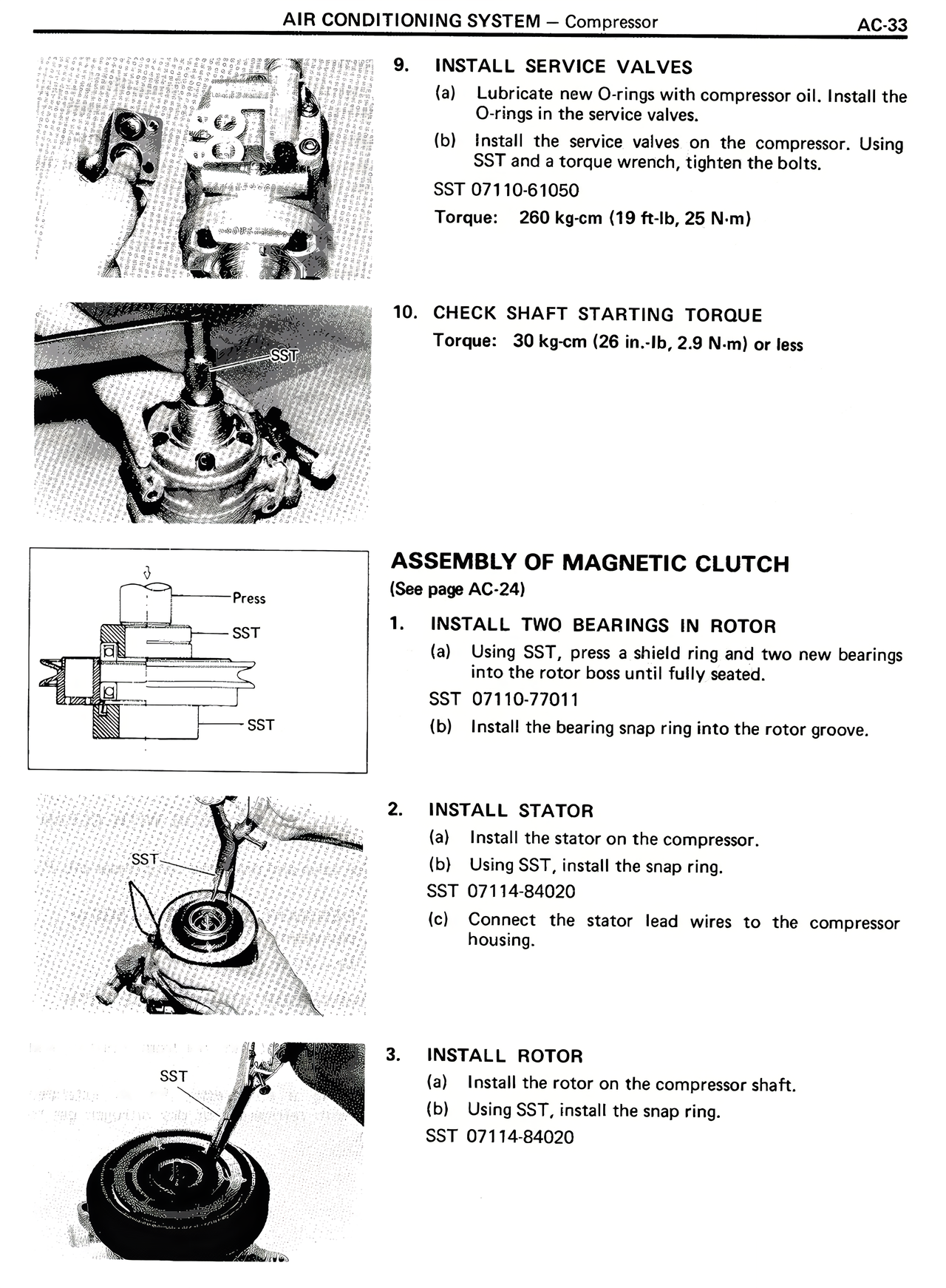

9. INSTALL SERVICE VALVES
(a) Lubricate new O-rings with compressor oil. Install the O-rings in the service valves.
(b) Install the service valves on the compressor. Using SST and a torque wrench, tighten the bolts.
SST 07110-61050
Torque: 260 kg·cm (19 ft·lb, 25 N·m)
10. CHECK SHAFT STARTING TORQUE
Torque: 30 kg·cm (26 in.·lb, 2.9 N·m) or less
ASSEMBLY OF MAGNETIC CLUTCH
(See page AC-24)
1. INSTALL TWO BEARINGS IN ROTOR
(a) Using SST, press a shield ring and two new bearings into the rotor boss until fully seated.
SST 07110-77011
(b) Install the bearing snap ring into the rotor groove.
2. INSTALL STATOR
(a) Install the stator on the compressor.
(b) Using SST, install the snap ring.
SST 07114-84020
(c) Connect the stator lead wires to the compressor housing.
3. INSTALL ROTOR
(a) Install the rotor on the compressor shaft.
(b) Using SST, install the snap ring.
SST 07114-84020
