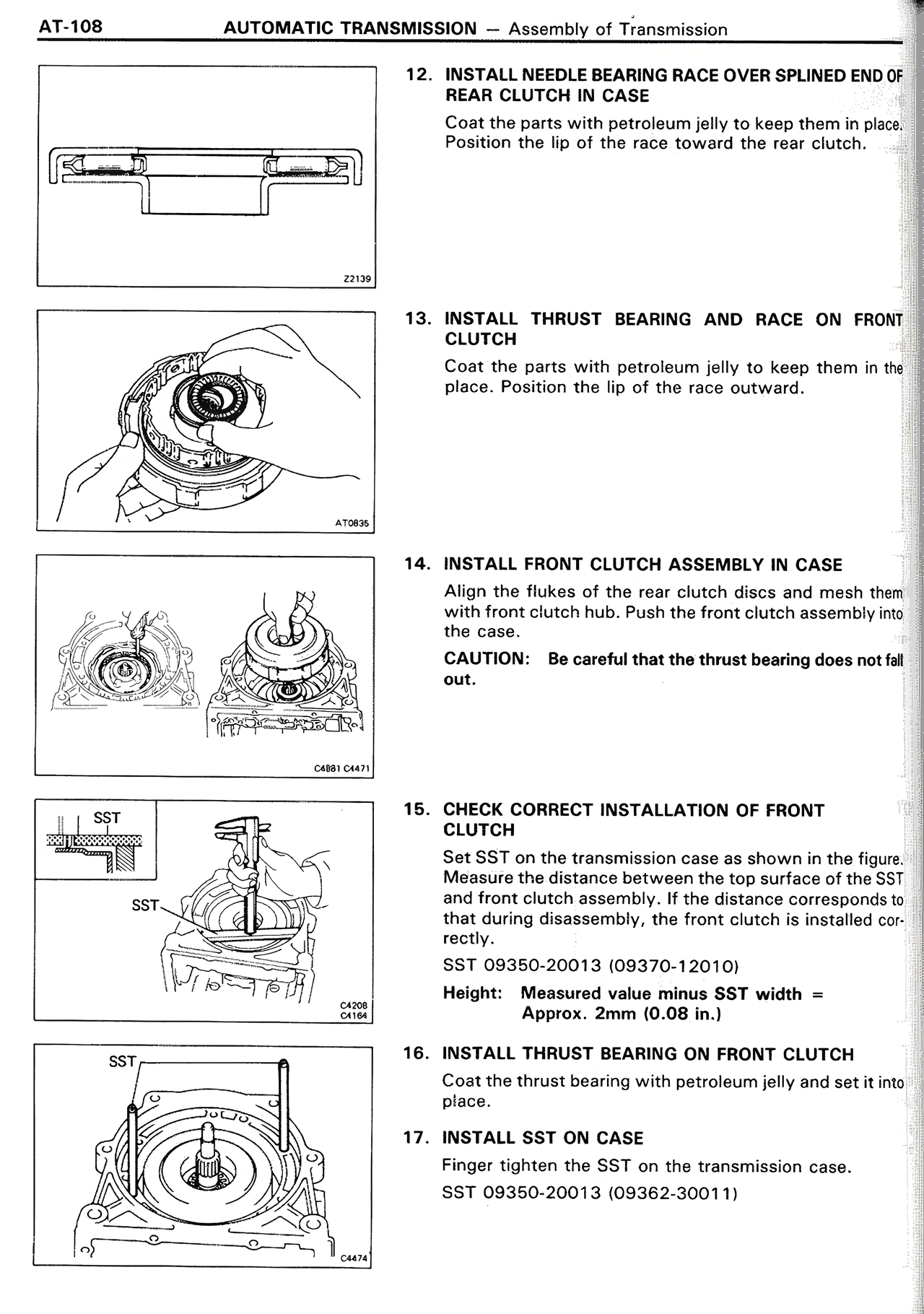

12. INSTALL NEEDLE BEARING RACE OVER SPLINED END OF REAR CLUTCH IN CASE Coat the parts with petroleum jelly to keep them in place. Position the lip of the race toward the rear clutch. 13. INSTALL THRUST BEARING AND RACE ON FRONT CLUTCH Coat the parts with petroleum jelly to keep them in the place. Position the lip of the race toward the case. 14. INSTALL FRONT CLUTCH ASSEMBLY IN CASE Align the flukes of the rear clutch discs and mesh them with front clutch hub. Push the front clutch assembly into the case. CAUTION: Be careful that the thrust bearing does not fall out. 15. CHECK CORRECT INSTALLATION OF FRONT CLUTCH Set SST on the transmission case as shown in the figure. Measure the distance between the top surface of the SST and front clutch assembly. If the distance corresponds to that during disassembly, the front clutch is installed correctly. SST 09350-20013 (09370-12010) Height: Measured value minus SST width = Approx. 2mm (0.08 in.) 16. INSTALL THRUST BEARING ON FRONT CLUTCH Coat the thrust bearing with petroleum jelly and set it into place. 17. INSTALL SST ON CASE Finger tighten the SST clutch to the transmission case. SST 09350-20013 (09362-30011)
