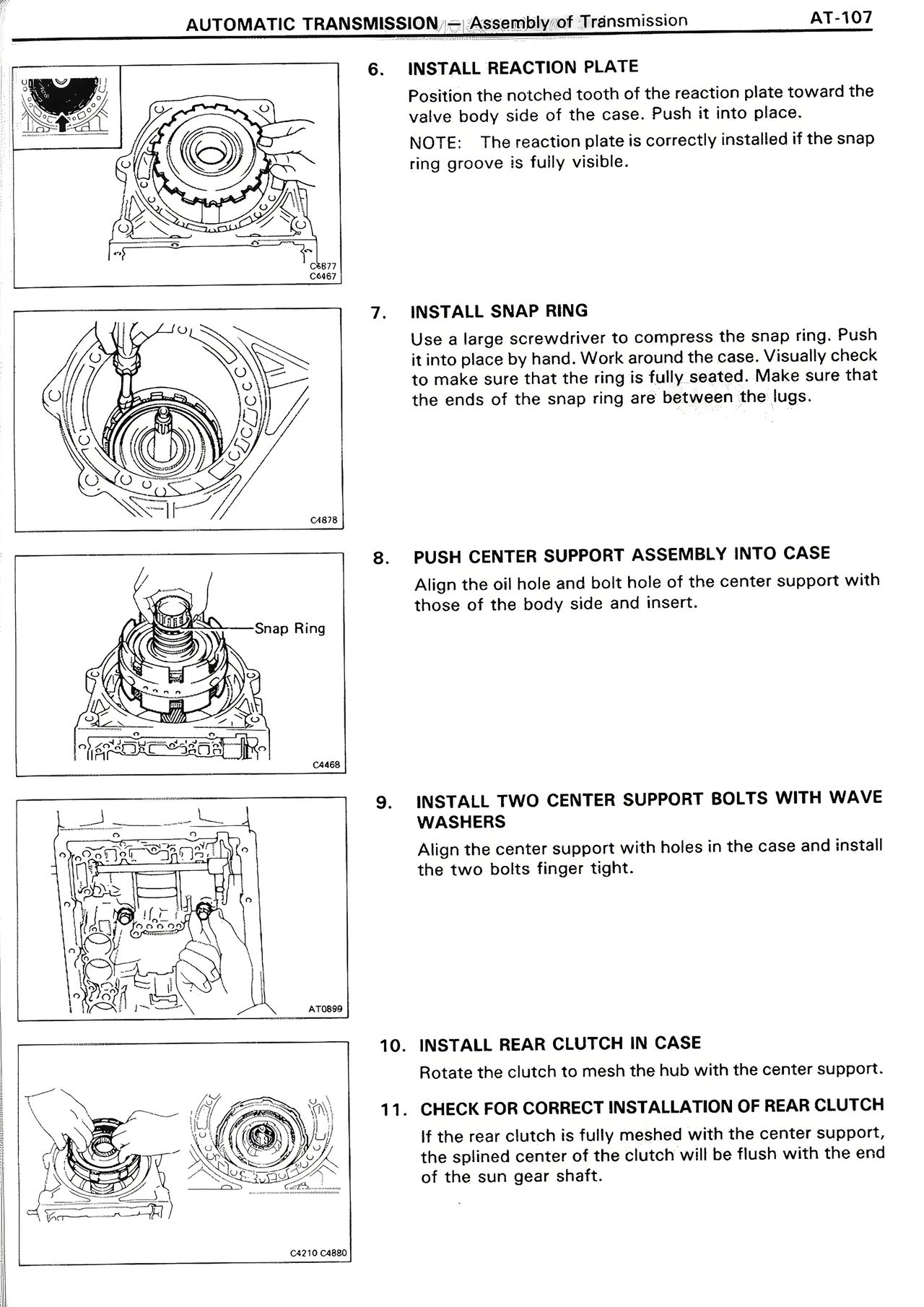

6. INSTALL REACTION PLATE
Position the notched tooth of the reaction plate toward the valve body side of the case. Push it into place.
NOTE: The reaction plate is correctly installed if the snap ring groove is fully visible.
7. INSTALL SNAP RING
Use a large screwdriver to compress the snap ring. Push it into place by hand. Work around the case. Visually check to make sure that the ring is fully seated. Make sure that the ends of the snap ring are between the lugs.
8. PUSH CENTER SUPPORT ASSEMBLY INTO CASE
Align the oil hole and bolt hole of the center support with those of the body side and insert.
9. INSTALL TWO CENTER SUPPORT BOLTS WITH WAVE WASHERS
Align the center support with holes in the case and install the two bolts finger tight.
10. INSTALL REAR CLUTCH IN CASE
Rotate the clutch to mesh the hub with the center support.
11. CHECK FOR CORRECT INSTALLATION OF REAR CLUTCH
If the rear clutch is fully meshed with the center support, the splined center of the clutch will be flush with the end of the sun gear shaft.
