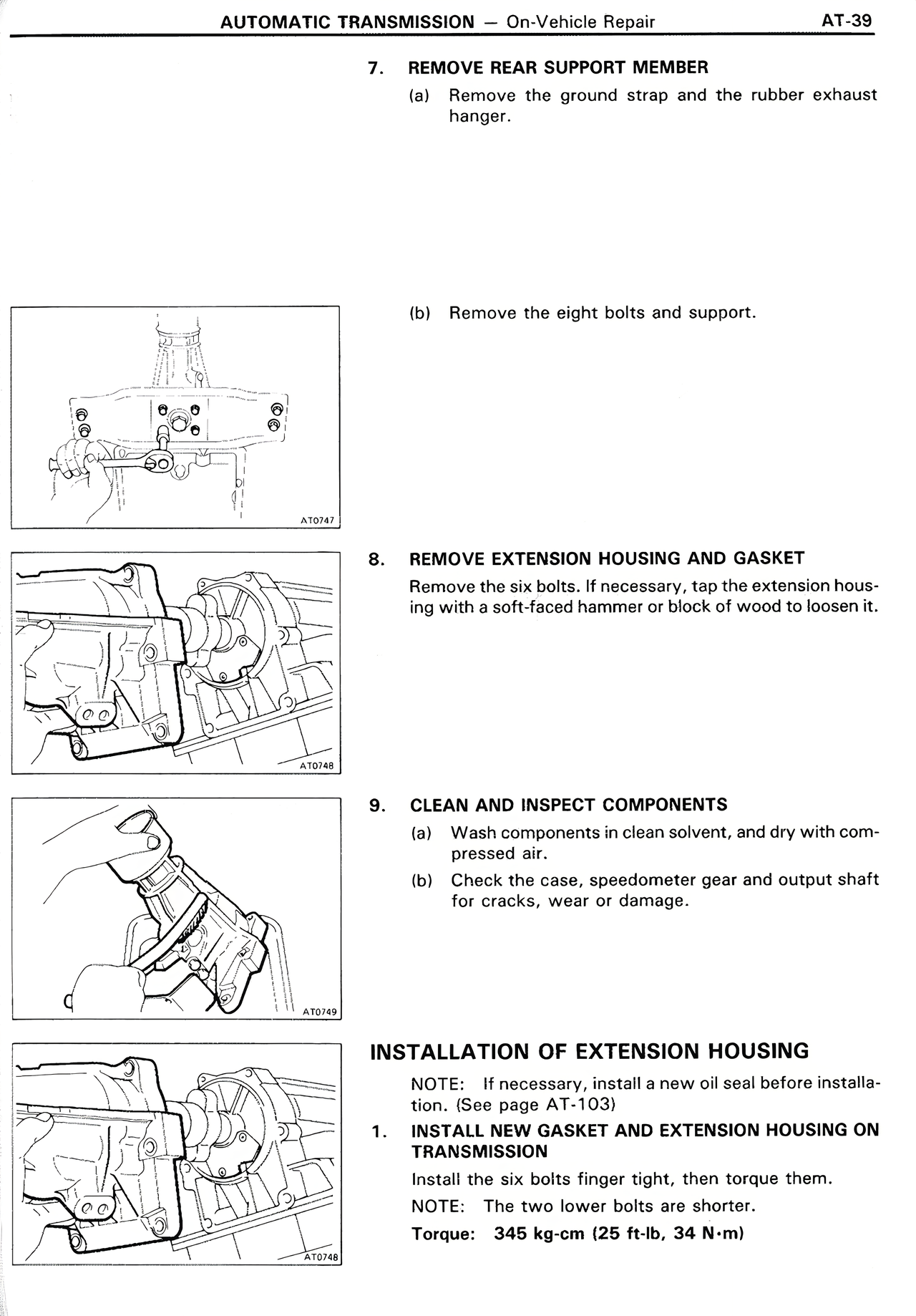

7. REMOVE REAR SUPPORT MEMBER (a) Remove the ground strap and the rubber exhaust hanger. (b) Remove the eight bolts and support. 8. REMOVE EXTENSION HOUSING AND GASKET Remove the six bolts. If necessary, tap the extension housing with a soft-faced hammer or block of wood to loosen it. 9. CLEAN AND INSPECT COMPONENTS (a) Wash components in clean solvent, and dry with compressed air. (b) Check the case, speedometer gear and output shaft for cracks, wear or damage. INSTALLATION OF EXTENSION HOUSING NOTE: If necessary, install a new oil seal before installation. (See page AT-103) 1. INSTALL NEW GASKET AND EXTENSION HOUSING ON TRANSMISSION Install the six bolts finger tight, then torque them. NOTE: The two lower bolts are shorter. Torque: 345 kg-cm (25 ft-lb, 34 N-m)
