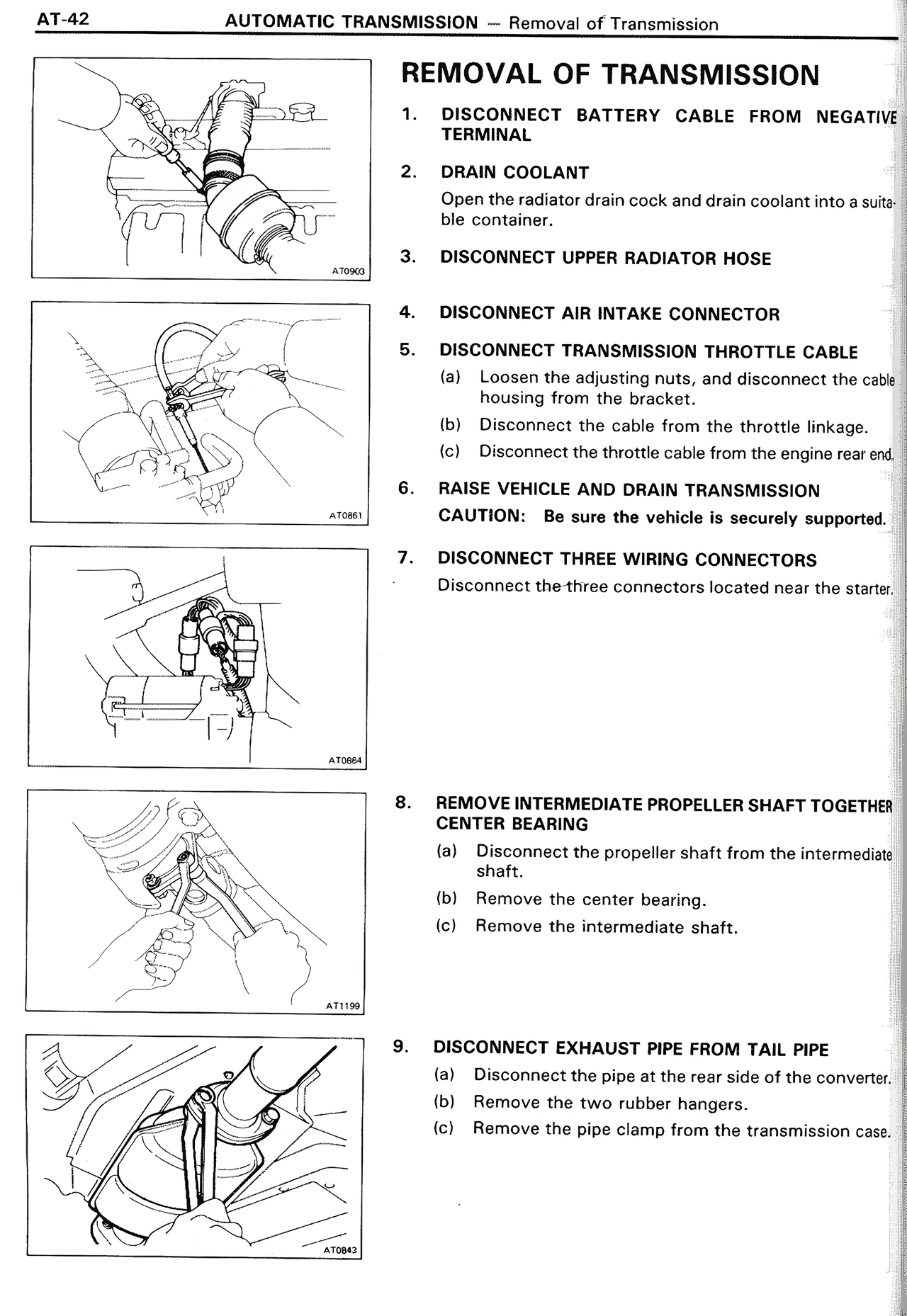

REMOVAL OF TRANSMISSION 1. DISCONNECT BATTERY CABLE FROM NEGATIVE TERMINAL 2. DRAIN COOLANT Open the radiator drain cock and drain coolant into a suitable container. 3. DISCONNECT UPPER RADIATOR HOSE 4. DISCONNECT AIR INTAKE CONNECTOR 5. DISCONNECT TRANSMISSION THROTTLE CABLE (a) Loosen the adjusting nuts, and disconnect the cable housing from the bracket. (b) Disconnect the cable from the throttle linkage. (c) Disconnect the throttle cable from the engine rear end. 6. RAISE VEHICLE AND DRAIN TRANSMISSION CAUTION: Be sure the vehicle is securely supported. 7. DISCONNECT THREE WIRING CONNECTORS Disconnect the three connectors located near the starter. 8. REMOVE INTERMEDIATE PROPELLER SHAFT TOGETHER WITH CENTER BEARING (a) Disconnect the propeller shaft from the intermediate shaft. (b) Remove the center bearing. (c) Remove the intermediate shaft. 9. DISCONNECT EXHAUST PIPE FROM TAIL PIPE (a) Disconnect the pipe at the rear side of the converter. (b) Remove the two rubber hangers. (c) Remove the pipe clamp from the transmission case.
