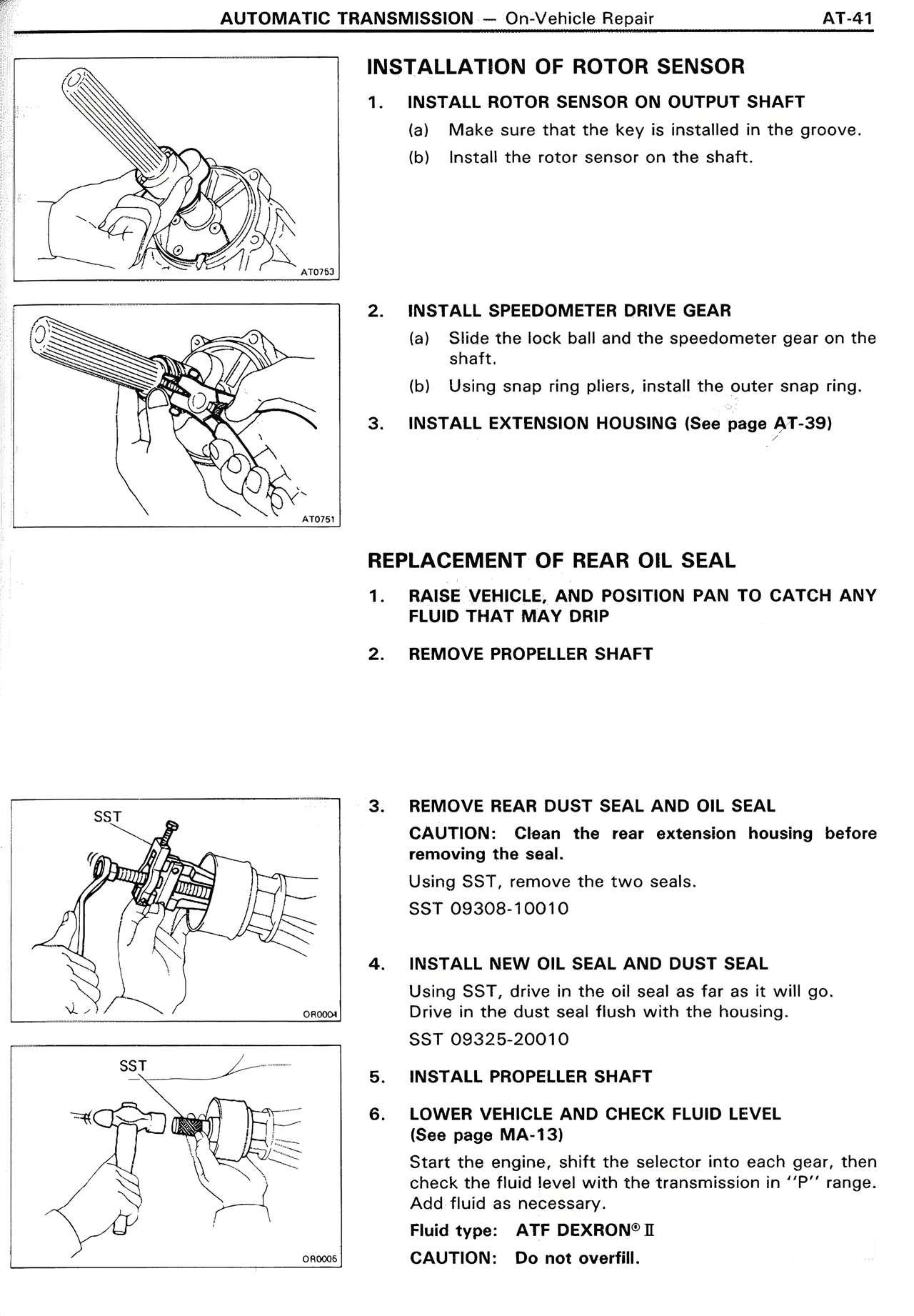

INSTALLATION OF ROTOR SENSOR 1. INSTALL ROTOR SENSOR ON OUTPUT SHAFT (a) Make sure that the key is installed in the groove. (b) Install the rotor sensor on the shaft. 2. INSTALL SPEEDOMETER DRIVE GEAR (a) Slide the lock ball and the speedometer gear on the shaft. (b) Using snap ring pliers, install the outer snap ring. 3. INSTALL EXTENSION HOUSING (See page AT-39) REPLACEMENT OF REAR OIL SEAL 1. RAISE VEHICLE, AND POSITION PAN TO CATCH ANY FLUID THAT MAY DRIP 2. REMOVE PROPELLER SHAFT 3. REMOVE REAR DUST SEAL AND OIL SEAL CAUTION: Clean the rear extension housing before removing the seal. Using SST, remove the two seals. SST 09308-10010 4. INSTALL NEW OIL SEAL AND DUST SEAL Using SST, drive in the oil seal as far as it will go. Drive in the dust seal flush with the housing. SST 09325-20010 5. INSTALL PROPELLER SHAFT 6. LOWER VEHICLE AND CHECK FLUID LEVEL (See page MA-13) Start the engine, shift the selector into each gear, then check the fluid level with the transmission in "P" range. Add fluid as necessary. Fluid type: ATF DEXRON® II CAUTION: Do not overfill.
