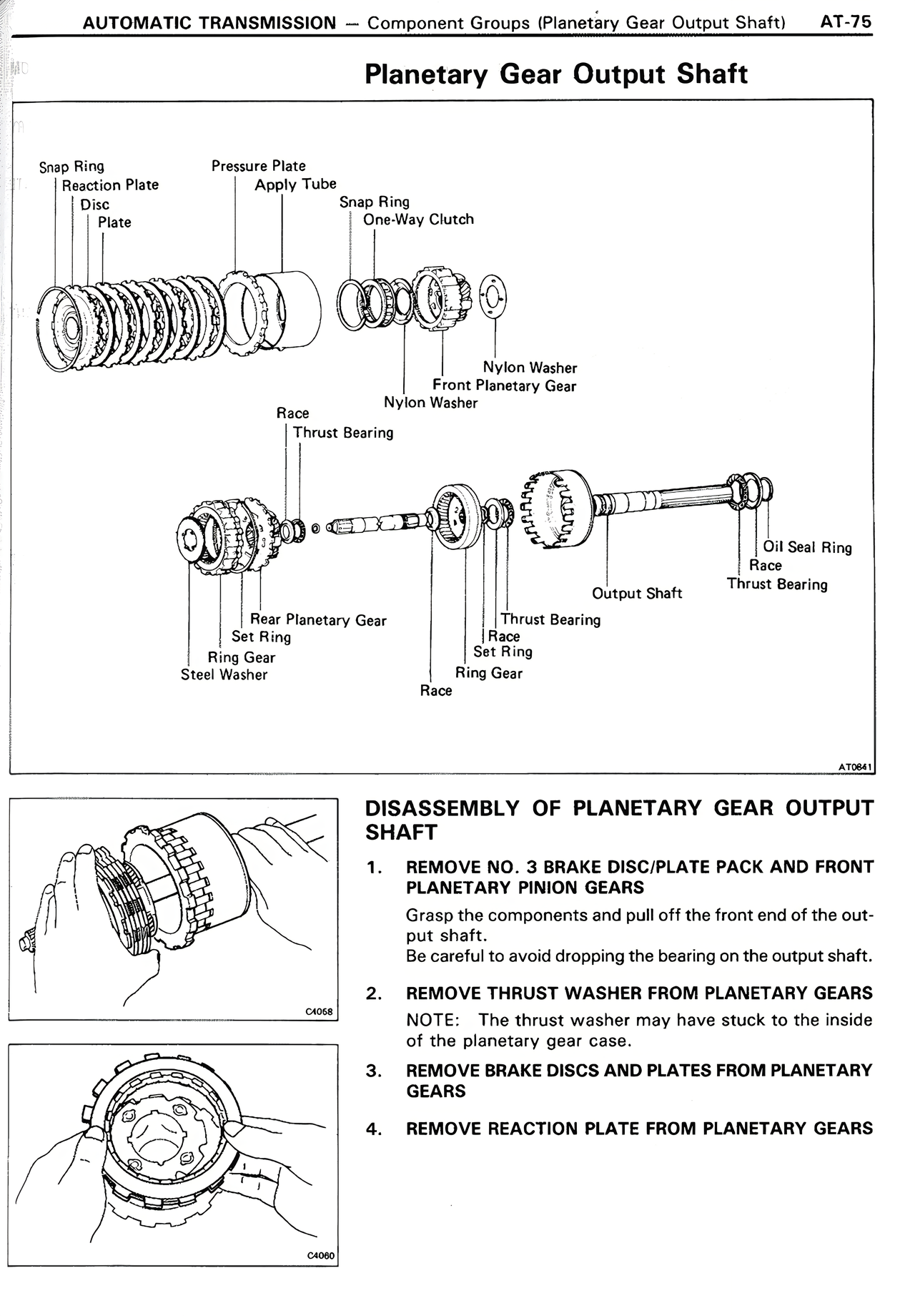

Planetary Gear Output Shaft Snap Ring Reaction Plate Disc Plate Pressure Plate Apply Tube Snap Ring One-Way Clutch Nylon Washer Front Planetary Gear Nylon Washer Race Thrust Bearing Rear Planetary Gear Set Ring Ring Gear Steel Washer Thrust Bearing Set Ring Ring Gear Race Oil Seal Ring Race Thrust Bearing Output Shaft DISASSEMBLY OF PLANETARY GEAR OUTPUT SHAFT 1. REMOVE NO. 3 BRAKE DISC/PLATE PACK AND FRONT PLANETARY PINION GEARS Grasp the components and pull off the front end of the output shaft. Be careful to avoid dropping the bearing on the output shaft. 2. REMOVE THRUST WASHER FROM PLANETARY GEARS NOTE: The thrust washer may have stuck to the inside of the planetary gear case. 3. REMOVE BRAKE DISCS AND PLATES FROM PLANETARY GEARS 4. REMOVE REACTION PLATE FROM PLANETARY GEARS
