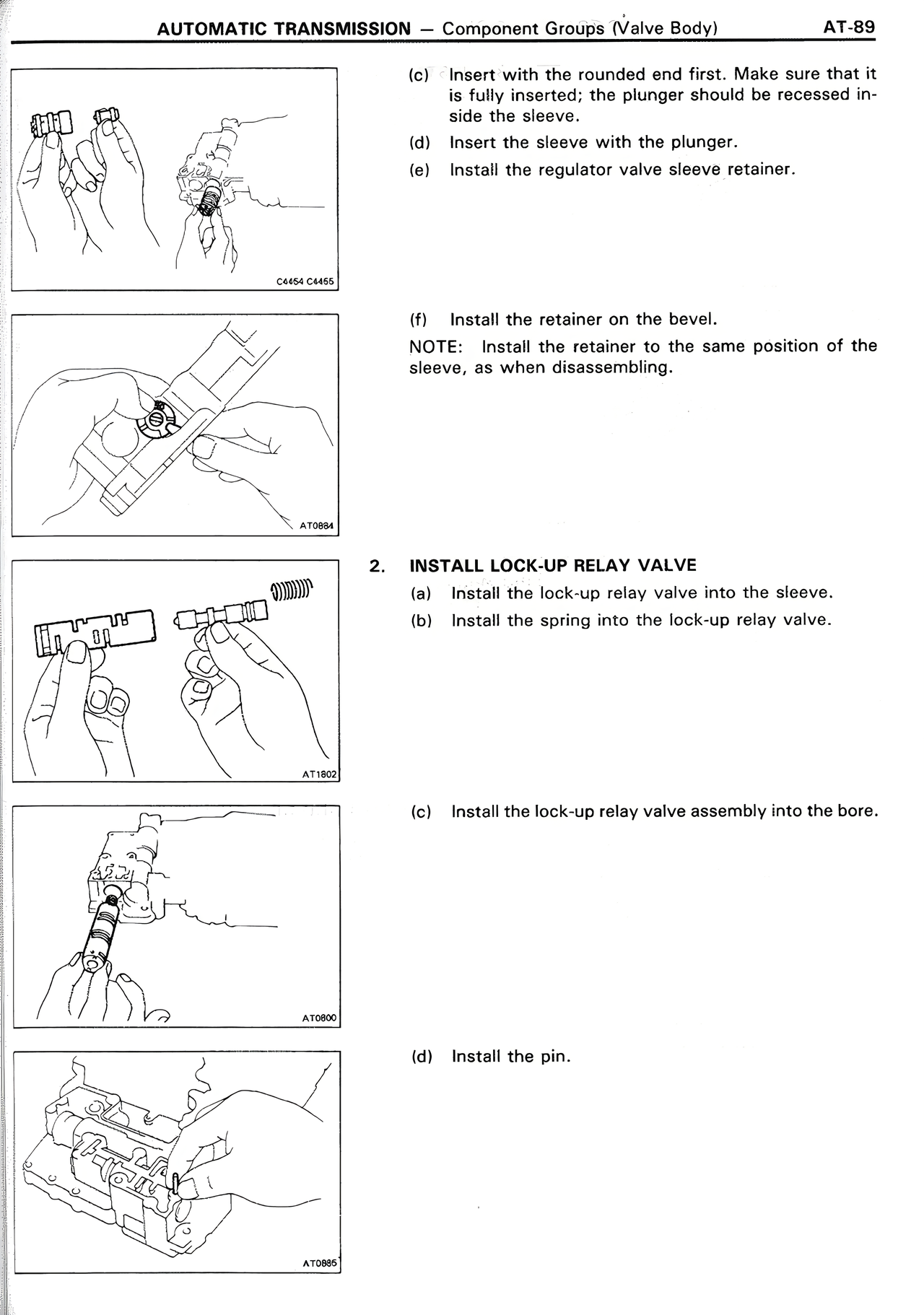

AUTOMATIC TRANSMISSION — Component Groups (Valve Body) AT-89
(c) Insert with the rounded end first. Make sure that it is fully inserted; the plunger should be recessed inside the sleeve.
(d) Insert the sleeve with the plunger.
(e) Install the regulator valve sleeve retainer.
(f) Install the retainer on the bevel.
NOTE: Install the retainer to the same position of the sleeve, as when disassembling.
2. INSTALL LOCK-UP RELAY VALVE
(a) Install the lock-up relay valve into the sleeve.
(b) Install the spring into the lock-up relay valve.
(c) Install the lock-up relay valve assembly into the bore.
(d) Install the pin.
