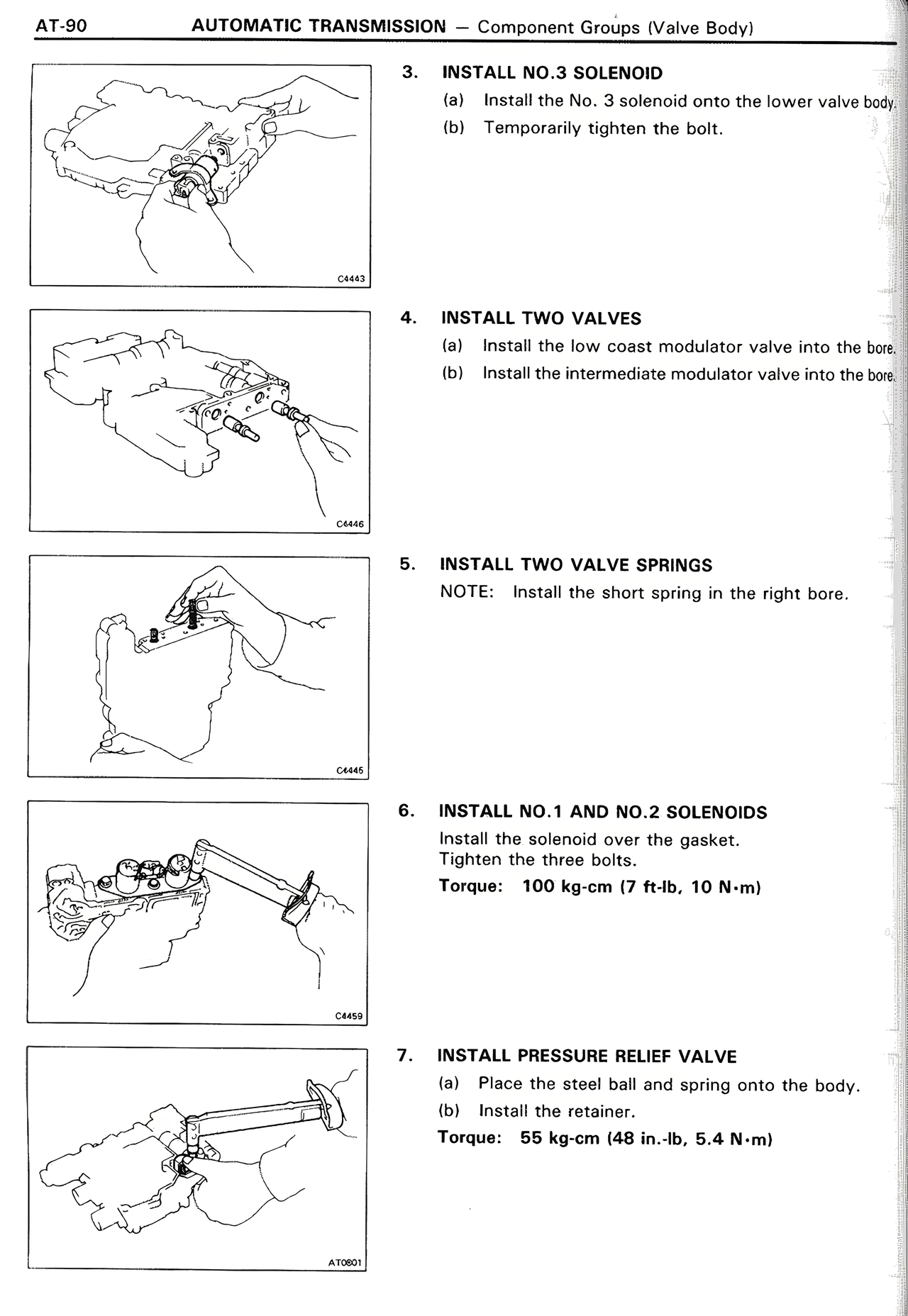

AT-90 AUTOMATIC TRANSMISSION — Component Groups (Valve Body) 3. INSTALL NO.3 SOLENOID (a) Install the No. 3 solenoid onto the lower valve body. (b) Temporarily tighten the bolt. 4. INSTALL TWO VALVES (a) Install the low coast modulator valve into the bore. (b) Install the intermediate modulator valve into the bore. 5. INSTALL TWO VALVE SPRINGS NOTE: Install the short spring in the right bore. 6. INSTALL NO.1 AND NO.2 SOLENOIDS Install the solenoid over the gasket. Tighten the three bolts. Torque: 100 kg-cm (7 ft-lb, 10 N-m) 7. INSTALL PRESSURE RELIEF VALVE (a) Place the steel ball and spring onto the body. (b) Install the retainer. Torque: 55 kg-cm (48 in.-lb, 5.4 N-m)
