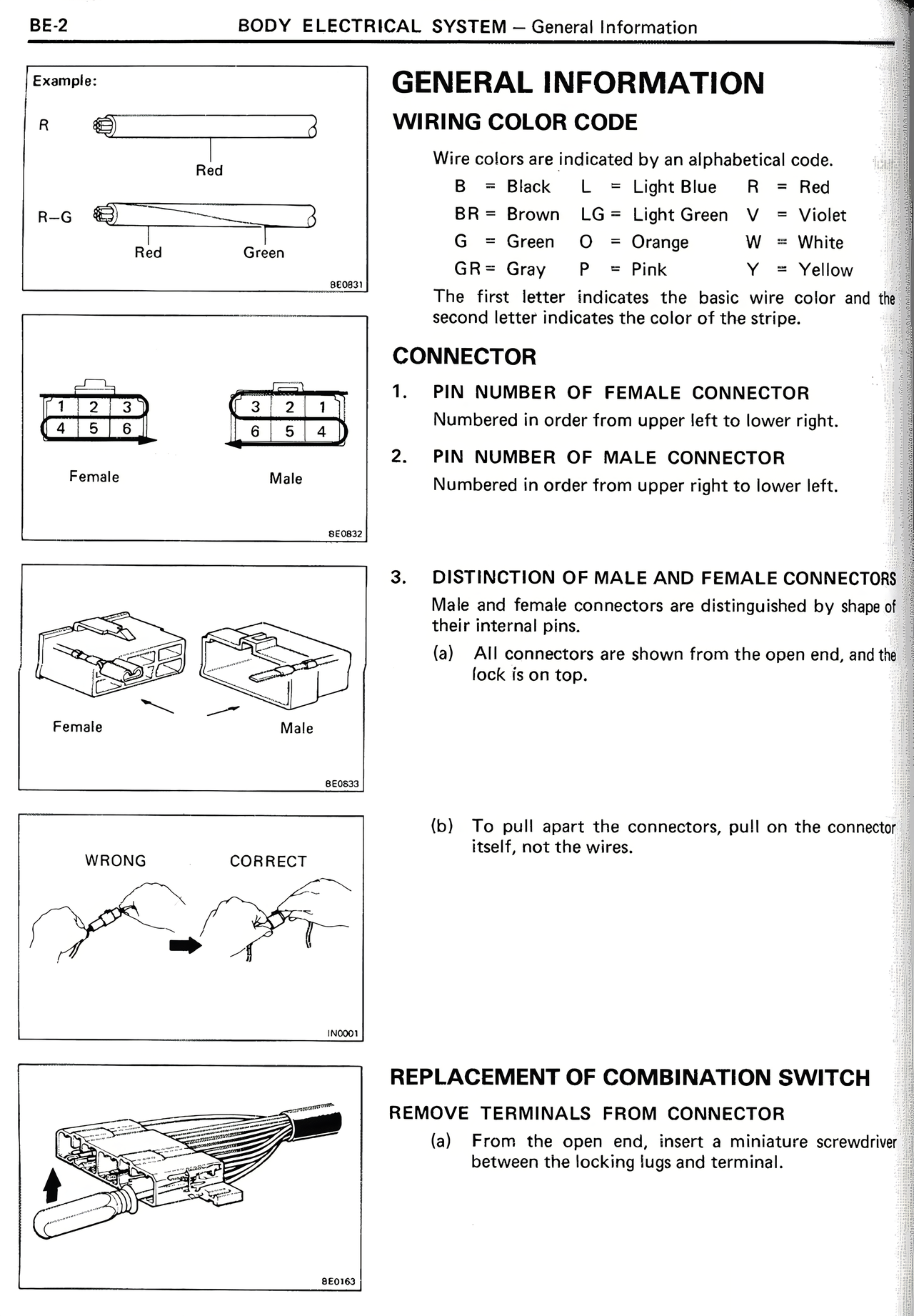

Example: R Red R-G Red Green BE0831 Female Male BE0832 Female Male BE0833 WRONG CORRECT BE0001 BE0043 GENERAL INFORMATION WIRING COLOR CODE Wire colors are indicated by an alphabetical code. B = Black L = Light Blue R = Red BR = Brown LG = Light Green V = Violet G = Green O = Orange W = White GR = Gray P = Pink Y = Yellow The first letter indicates the basic wire color and the second letter indicates the color of the stripe. CONNECTOR 1. PIN NUMBER OF FEMALE CONNECTOR Numbered in order from upper left to lower right. 2. PIN NUMBER OF MALE CONNECTOR Numbered in order from upper right to lower left. 3. DISTINCTION OF MALE AND FEMALE CONNECTORS Male and female connectors are distinguished by shape of their internal pins. (a) All connectors are shown from the open end, and the lock is on top. (b) To pull apart the connectors, pull on the connector itself, not the wires. REPLACEMENT OF COMBINATION SWITCH REMOVE TERMINALS FROM CONNECTOR (a) From the open end, insert a miniature screwdriver between the locking lugs and terminal.
