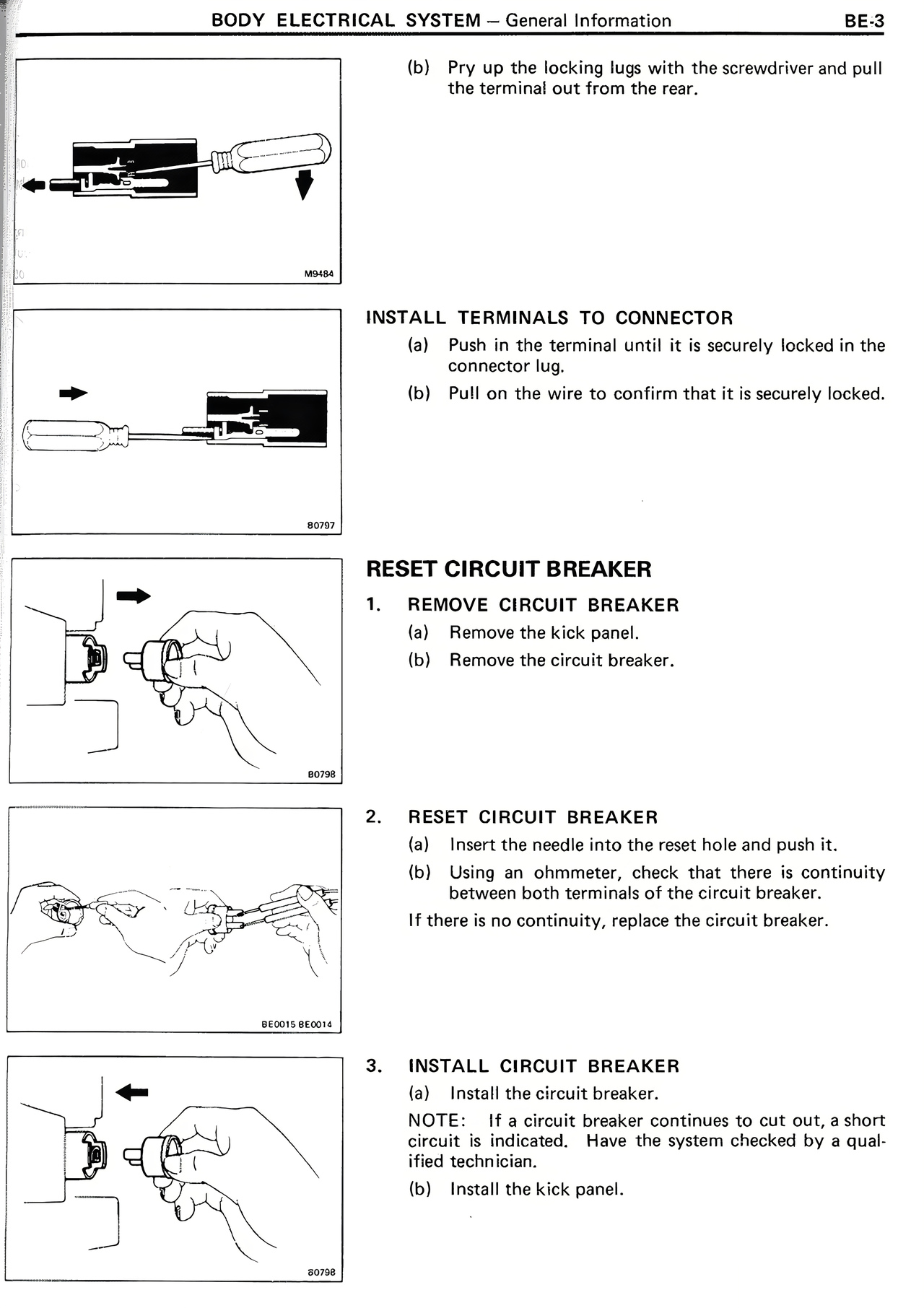

(b) Pry up the locking lugs with the screwdriver and pull the terminal out from the rear.
INSTALL TERMINALS TO CONNECTOR
(a) Push in the terminal until it is securely locked in the connector lug.
(b) Pull on the wire to confirm that it is securely locked.
RESET CIRCUIT BREAKER
1. REMOVE CIRCUIT BREAKER
(a) Remove the kick panel.
(b) Remove the circuit breaker.
2. RESET CIRCUIT BREAKER
(a) Insert the needle into the reset hole and push it.
(b) Using an ohmmeter, check that there is continuity between both terminals of the circuit breaker.
If there is no continuity, replace the circuit breaker.
3. INSTALL CIRCUIT BREAKER
(a) Install the circuit breaker.
NOTE: If a circuit breaker continues to cut out, a short circuit is indicated. Have the system checked by a qualified technician.
(b) Install the kick panel.
