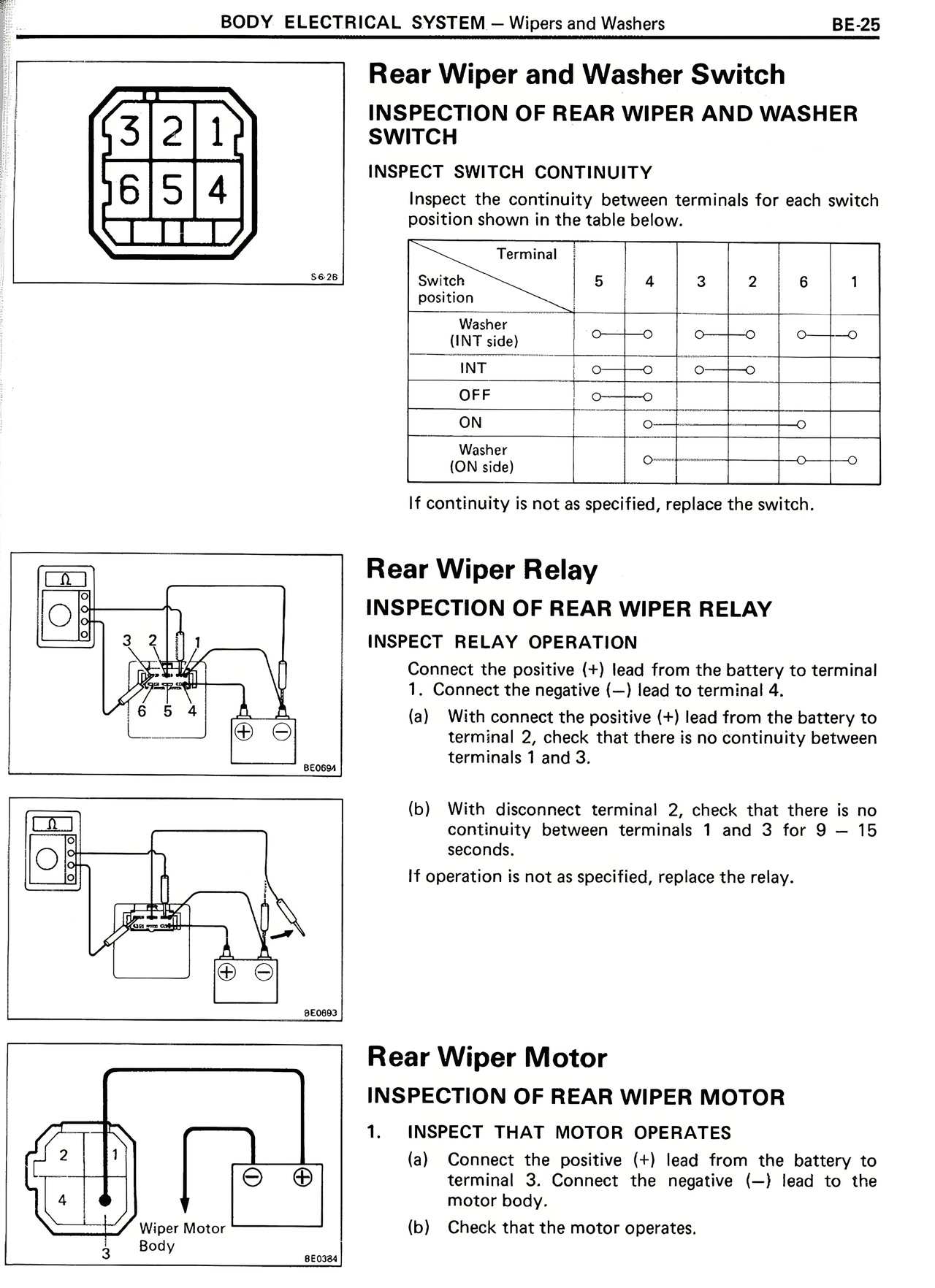

Rear Wiper and Washer Switch INSPECTION OF REAR WIPER AND WASHER SWITCH INSPECT SWITCH CONTINUITY Inspect the continuity between the terminals for each switch position shown in the table below. Switch position | Terminal 5 | 4 | 3 | 2 | 6 | 1 Wiper (INT side) | o—o | o——o | o—o INT | o—o | o——o OFF | o—o ON | o | o Washer (ON side) | o | o—o If continuity is not as specified, replace the switch. Rear Wiper Relay INSPECTION OF REAR WIPER RELAY INSPECT RELAY OPERATION Connect the positive (+) lead from the battery to terminal 1. Connect the negative (—) lead to terminal 4. (a) With connect the positive (+) lead from the battery to terminal 2, check that there is no continuity between terminals 1 and 3. (b) With disconnect terminal 2, check that there is no continuity between terminals 1 and 3 for 9 — 15 seconds. If operation is not as specified, replace the relay. Rear Wiper Motor INSPECTION OF REAR WIPER MOTOR 1. INSPECT THAT MOTOR OPERATES (a) Connect the positive (+) lead from the battery to terminal 1. Connect the negative (—) lead to the motor body. (b) Check that the motor operates.
