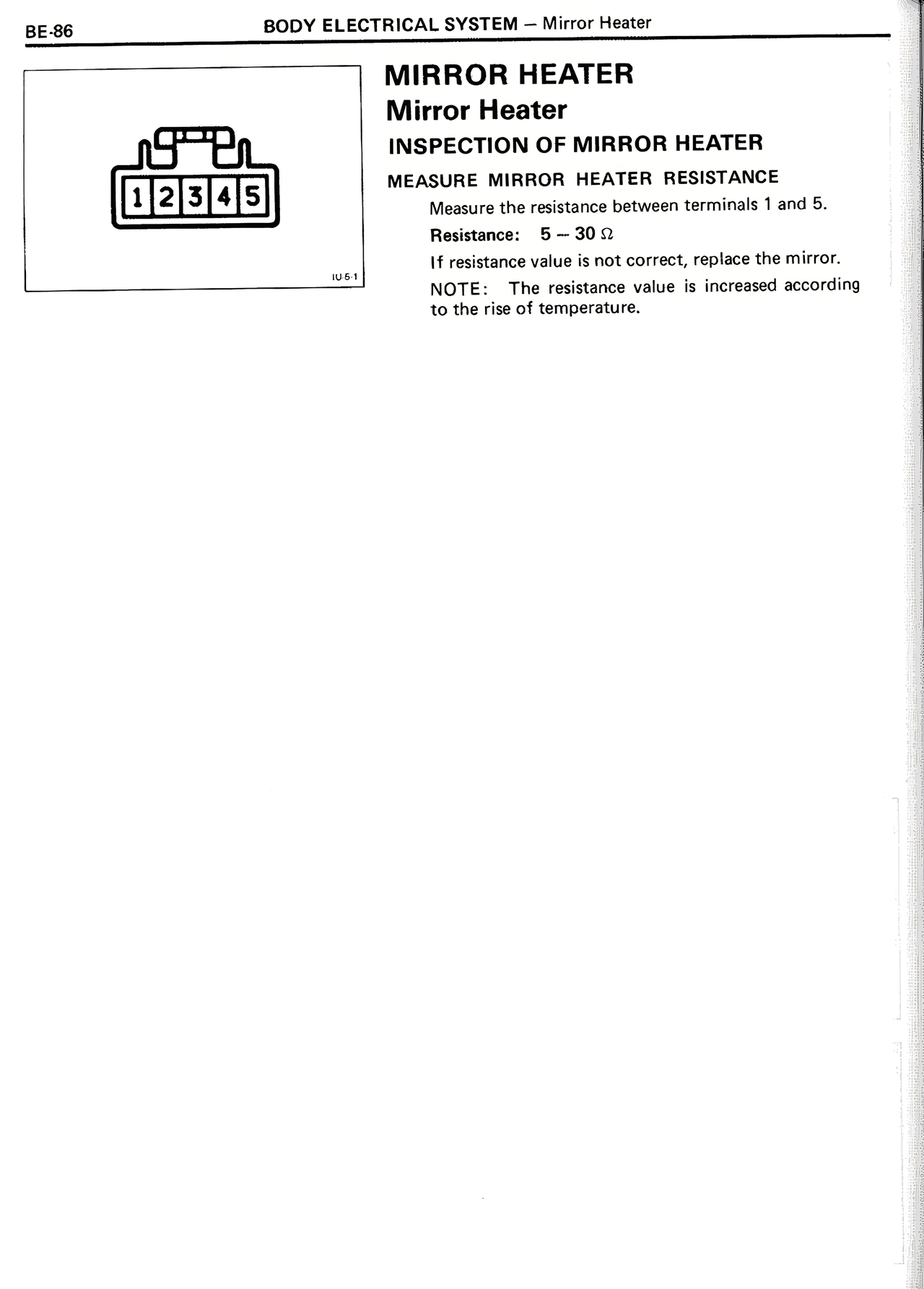

Body Electrical System page 86

MIRROR HEATER Mirror Heater INSPECTION OF MIRROR HEATER MEASURE MIRROR HEATER RESISTANCE Measure the resistance between terminals 1 and 5. Resistance: 5 — 30 Ω If resistance value is not correct, replace the mirror. NOTE: The resistance value is increased according to the rise of temperature.
