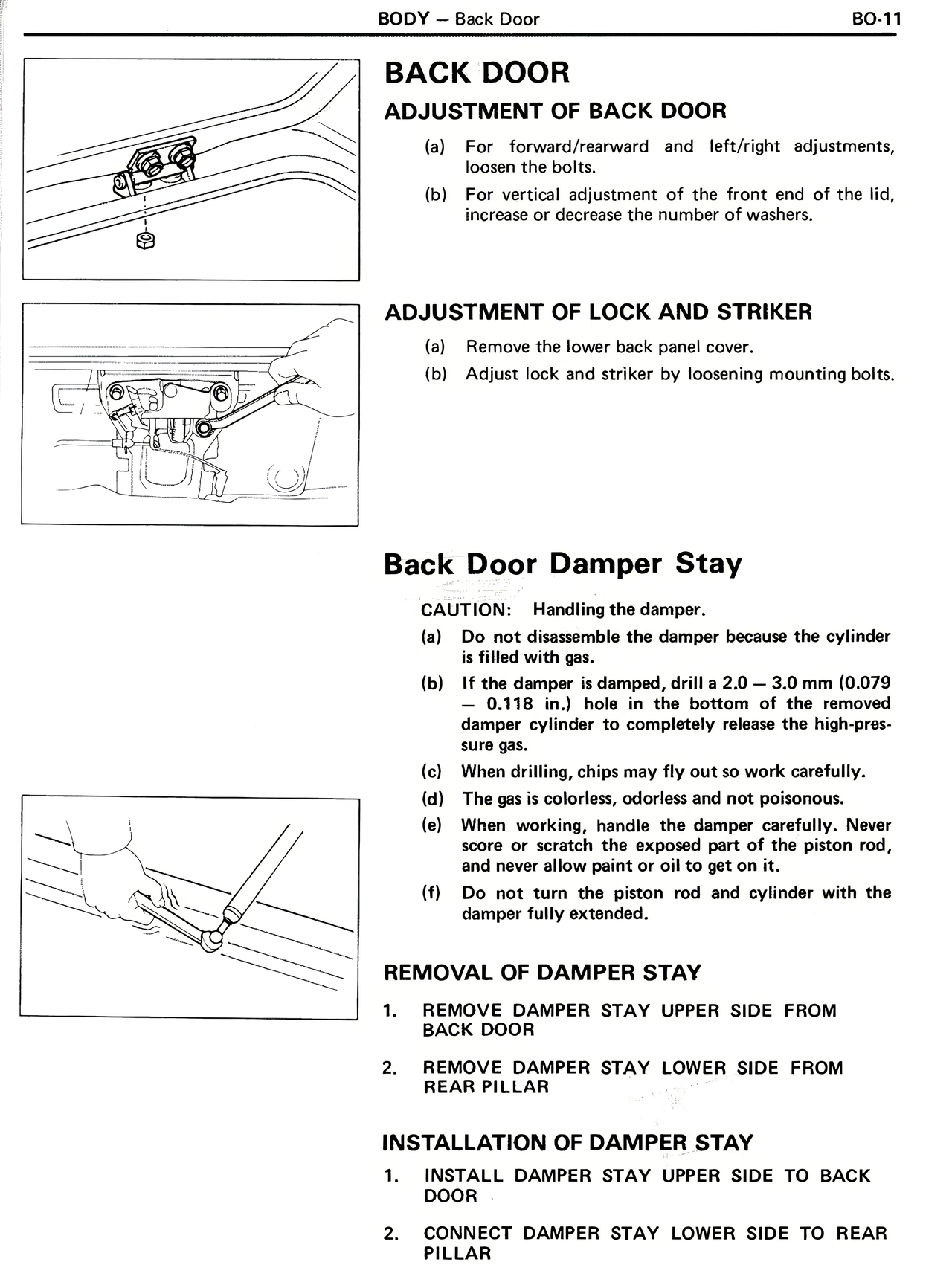

BACK DOOR ADJUSTMENT OF BACK DOOR (a) For forward/rearward and left/right adjustments, loosen the bolts. (b) For vertical adjustment of the front end of the lid, increase or decrease the number of washers. ADJUSTMENT OF LOCK AND STRIKER (a) Remove the lower back panel cover. (b) Adjust lock and striker by loosening mounting bolts. Back Door Damper Stay CAUTION: Handling the damper. (a) Do not disassemble the damper because the cylinder is filled with gas. (b) If the damper is damped, drill a 2.0 — 3.0 mm (0.079 — 0.118 in.) hole in the bottom of the removed damper cylinder to completely release the high-pressure gas. (c) When drilling, chips may fly out so work carefully. (d) The gas is colorless, odorless and not poisonous. (e) When working, handle the damper carefully. Never score or scratch the exposed part of the piston rod, and never allow paint or oil to get on it. (f) Do not turn the piston rod and cylinder with the damper fully extended. REMOVAL OF DAMPER STAY 1. REMOVE DAMPER STAY UPPER SIDE FROM BACK DOOR 2. REMOVE DAMPER STAY LOWER SIDE FROM REAR PILLAR INSTALLATION OF DAMPER STAY 1. INSTALL DAMPER STAY UPPER SIDE TO BACK DOOR 2. CONNECT DAMPER STAY LOWER SIDE TO REAR PILLAR
