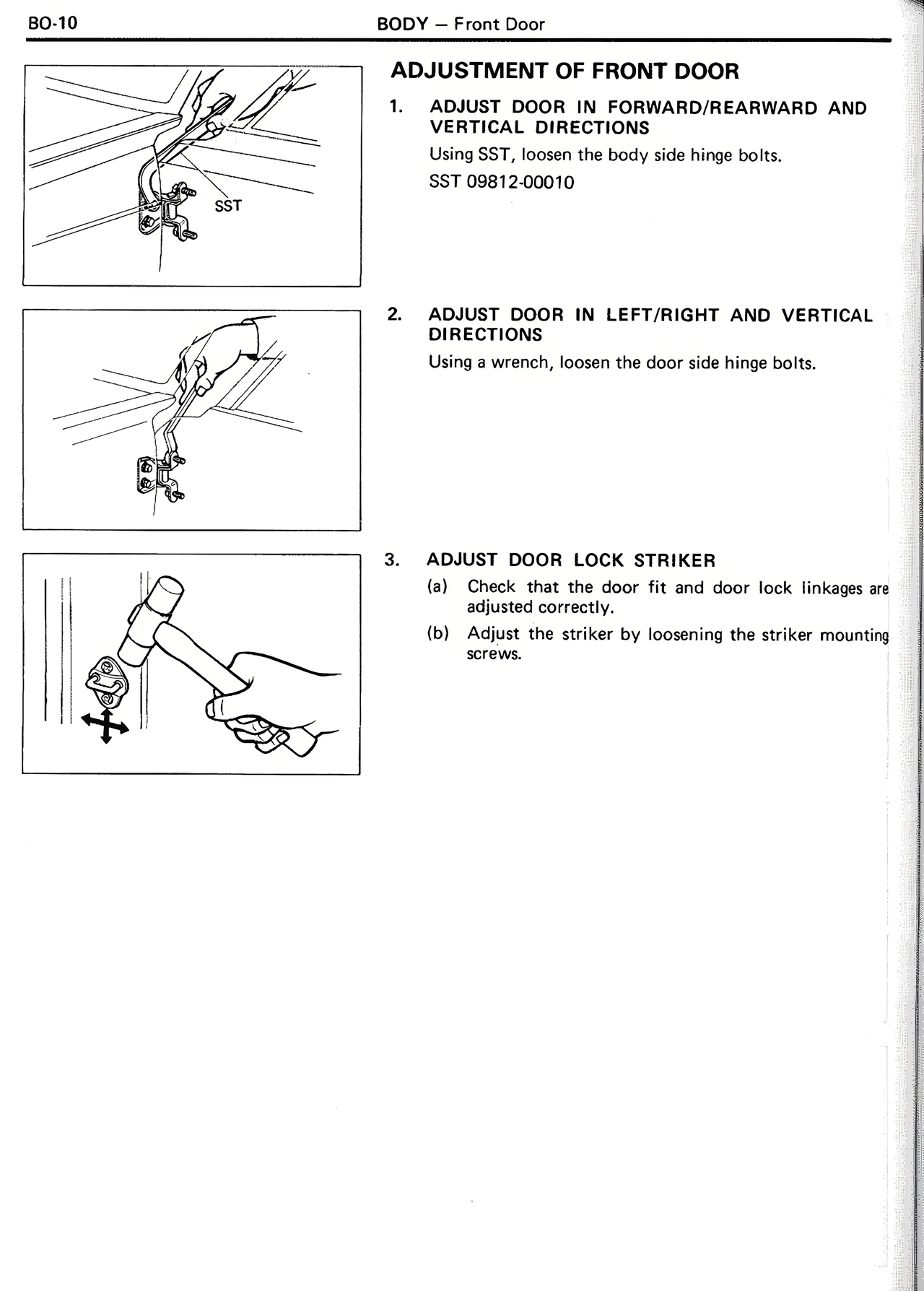

ADJUSTMENT OF FRONT DOOR
1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS
Using SST, loosen the body side hinge bolts.
SST 09812-00010
2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Using a wrench, loosen the door side hinge bolts.
3. ADJUST DOOR LOCK STRIKER
(a) Check that the door fit and door lock linkages are adjusted correctly.
(b) Adjust the striker by loosening the striker mounting screws.
