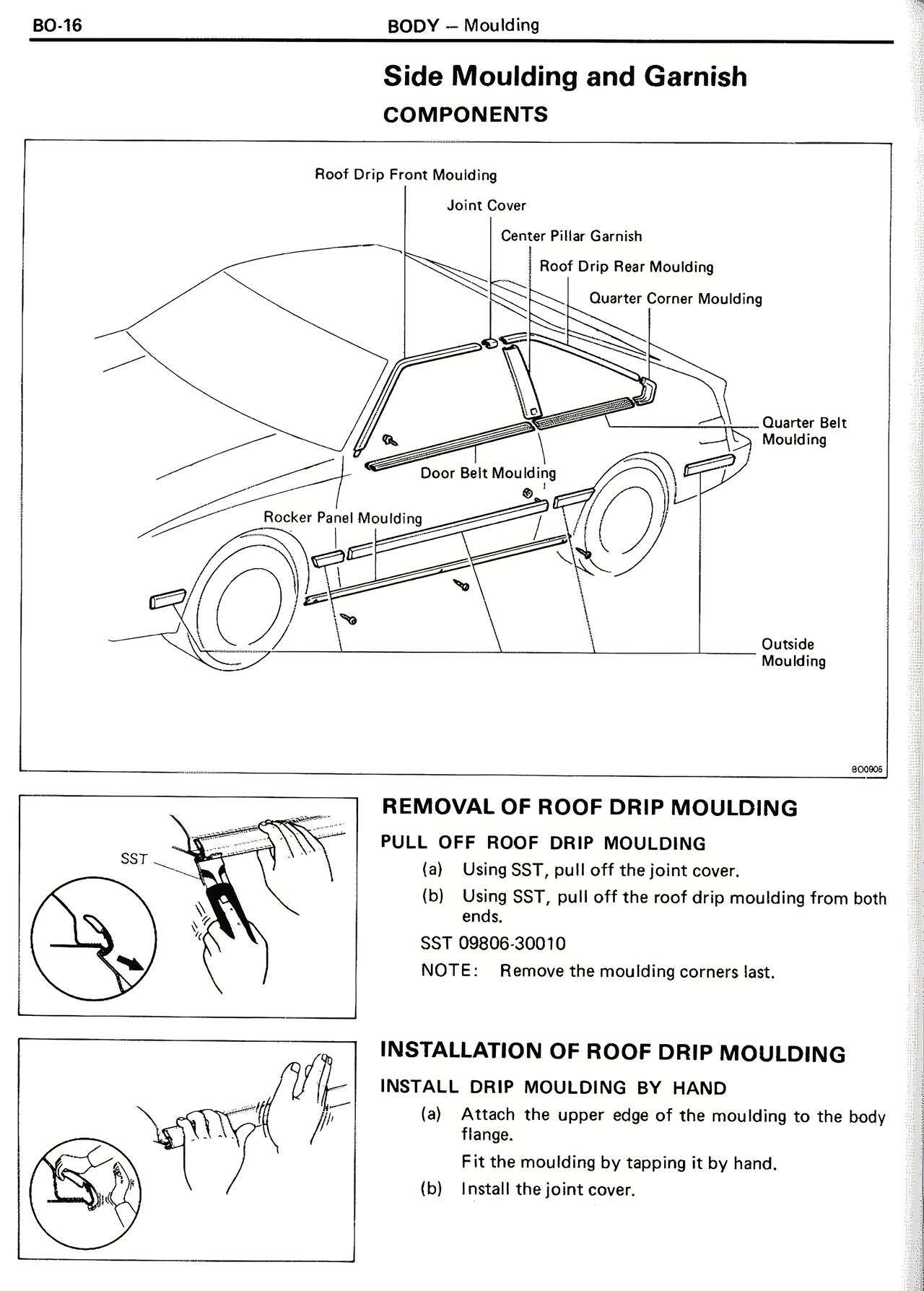

Side Moulding and Garnish COMPONENTS Roof Drip Front Moulding Joint Cover Center Pillar Garnish Roof Drip Rear Moulding Quarter Corner Moulding Quarter Belt Moulding Door Belt Moulding Rocker Panel Moulding Outside Moulding 80068 REMOVAL OF ROOF DRIP MOULDING PULL OFF ROOF DRIP MOULDING (a) Using SST, pull off the joint cover. (b) Using SST, pull off the roof drip moulding from both ends. SST 09806 30010 NOTE: Remove the moulding corners last. SST INSTALLATION OF ROOF DRIP MOULDING INSTALL DRIP MOULDING BY HAND (a) Attach the upper edge of the moulding to the body flange. Fit the moulding by tapping it by hand. (b) Install the joint cover.
