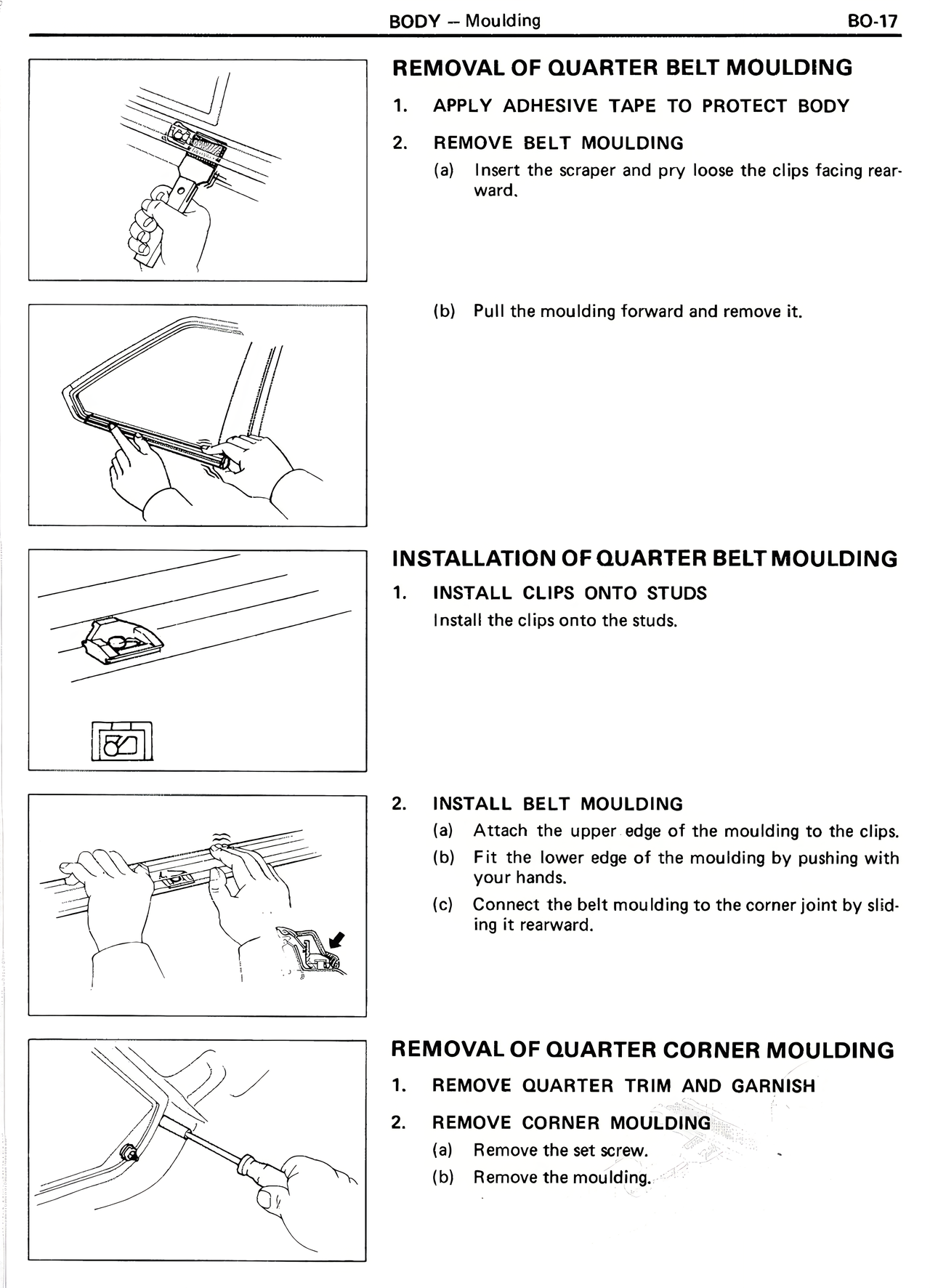

BODY — Moulding
REMOVAL OF QUARTER BELT MOULDING
1. APPLY ADHESIVE TAPE TO PROTECT BODY
2. REMOVE BELT MOULDING
(a) Insert the scraper and pry loose the clips facing rearward.
(b) Pull the moulding forward and remove it.
INSTALLATION OF QUARTER BELT MOULDING
1. INSTALL CLIPS ONTO STUDS
Install the clips onto the studs.
2. INSTALL BELT MOULDING
(a) Attach the upper edge of the moulding to the clips.
(b) Fit the lower edge of the moulding by pushing with your hands.
(c) Connect the belt moulding to the corner joint by sliding it rearward.
REMOVAL OF QUARTER CORNER MOULDING
1. REMOVE QUARTER TRIM AND GARNISH
2. REMOVE CORNER MOULDING
(a) Remove the set screw.
(b) Remove the moulding.
