BO-50

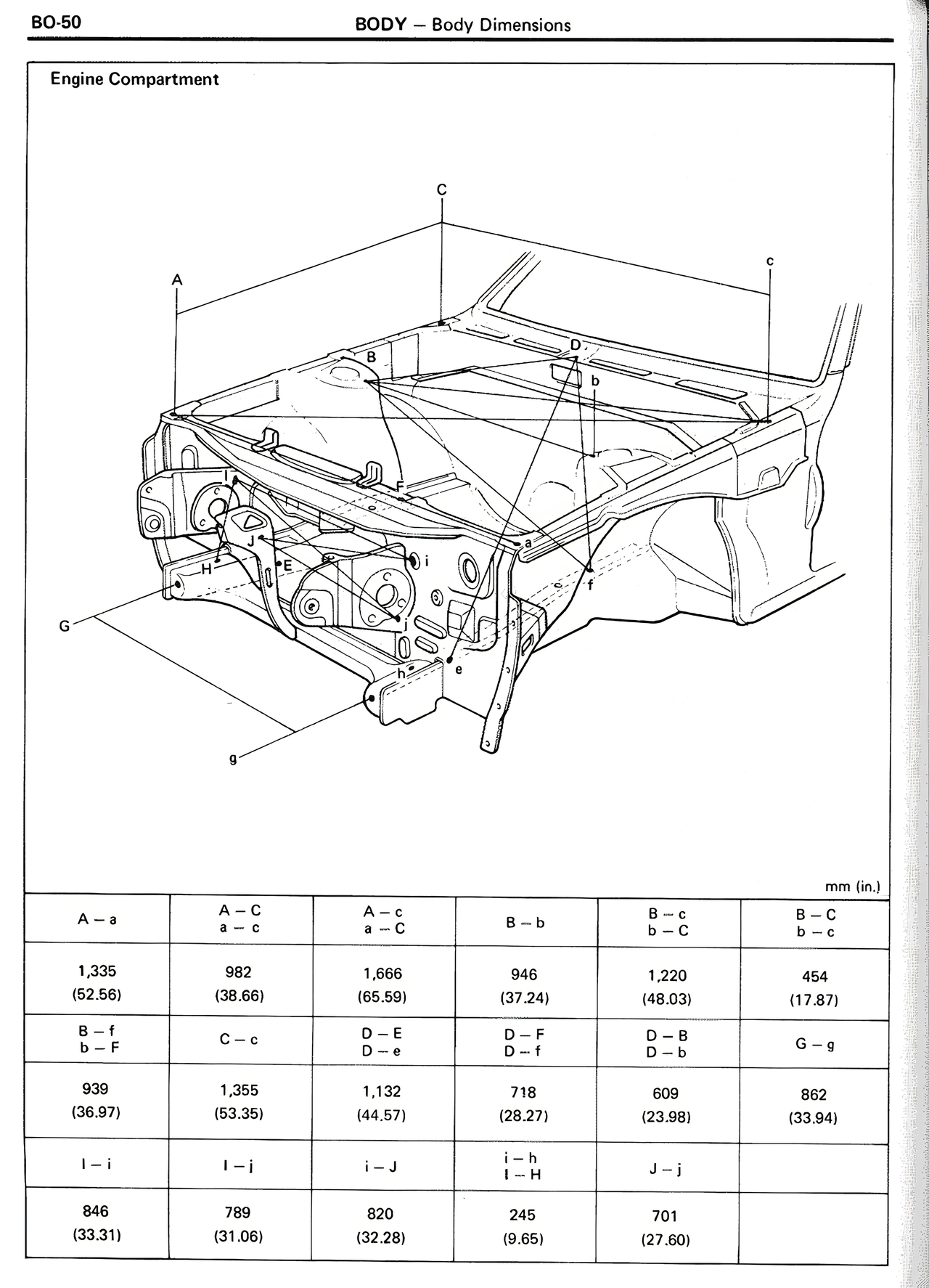

BODY — Body Dimensions
Engine Compartment
[Diagram labels from the technical illustration:]
A
B
C
D
b
c
e
F
G
g
H
I
i
J
j
h
mm (in.)
A — a
1,335
(52.56)
A — C
a — c
982
(38.66)
A — c
a — C
1,666
(65.59)
B — b
946
(37.24)
B — c
b — C
1,220
(48.03)
B — C
b — c
454
(17.87)
B — f
b — F
939
(36.97)
C — c
1,355
(53.35)
D — E
D — e
1,132
(44.57)
D — F
D — f
718
(28.27)
D — B
D — b
609
(23.98)
G — g
862
(33.94)
I — i
846
(33.31)
I — j
789
(31.06)
I — J
820
(32.28)
I — h
I — H
245
(9.65)
J — j
701
(27.60)
