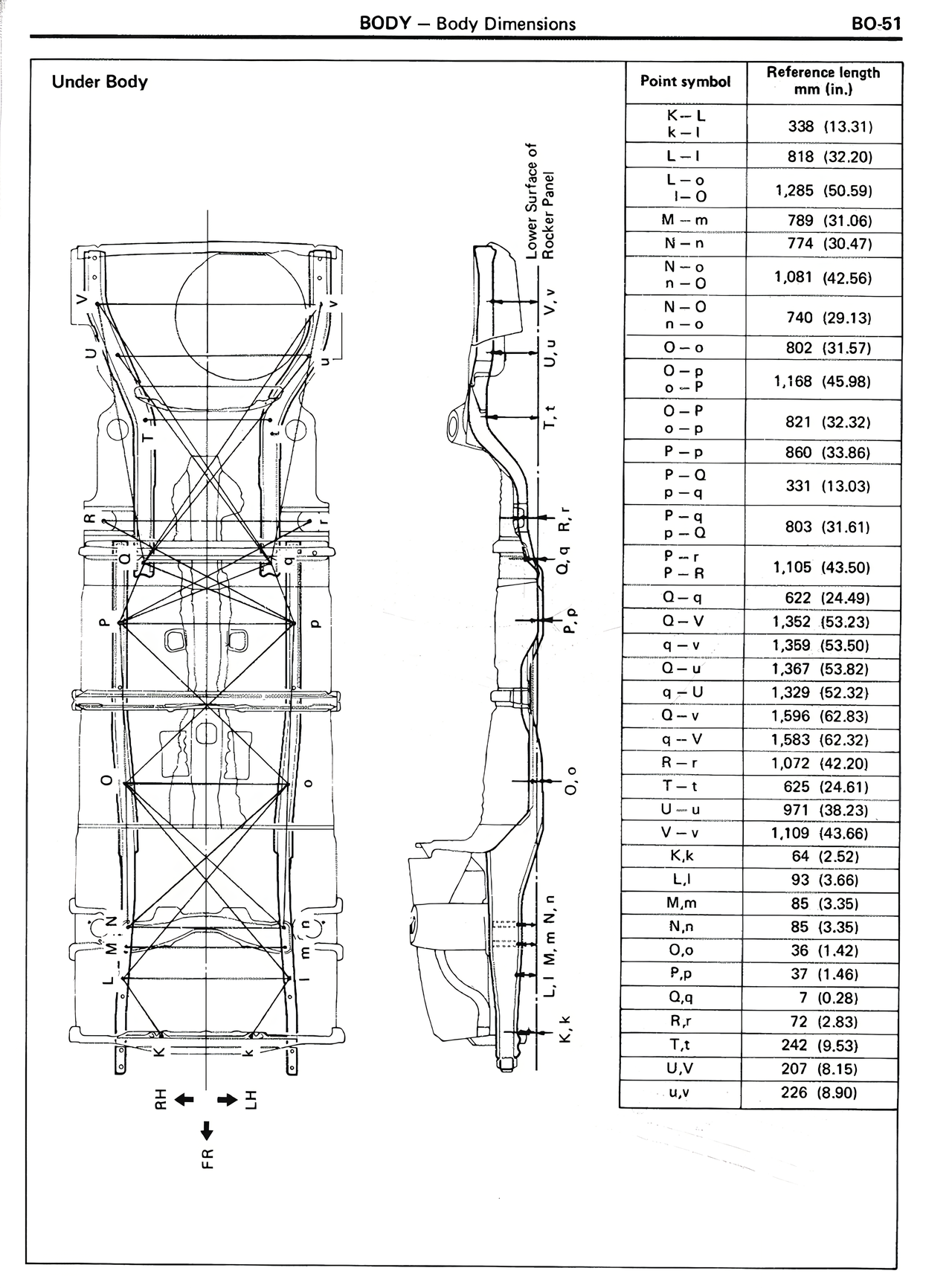

Under Body
Point symbol
Reference length mm (in.)
K—L
k—I
338 (13.31)
L—I
818 (32.20)
L—o
I—O
1,285 (50.59)
M—m
789 (31.06)
M—o
774 (30.47)
N—o
N—O
1,081 (42.56)
N—O
N—o
740 (29.13)
O—o
802 (31.57)
O—p
o—P
1,168 (45.98)
o—p
821 (32.32)
P—p
860 (33.86)
P—Q
P—q
331 (13.03)
P—q
P—Q
803 (31.61)
P—r
P—R
1,105 (43.50)
Q—q
622 (24.49)
Q—V
1,352 (53.23)
q—v
1,359 (53.50)
Q—U
1,367 (53.82)
q—U
1,329 (52.32)
Q—v
1,596 (62.83)
q—V
1,583 (62.32)
R—r
1,072 (42.20)
R—V
825 (24.81)
U—u
971 (38.23)
V—v
1,109 (43.66)
K,k
64 (2.52)
L,I
93 (3.66)
M,m
85 (3.35)
N,n
85 (3.35)
O,o
36 (1.42)
P,p
37 (1.46)
Q,q
7 (0.28)
R,r
72 (2.83)
T,t
242 (9.53)
U,u
207 (8.15)
U,V
226 (8.90)
Locate Surface of
Rocker Panel
FH
S
FR
