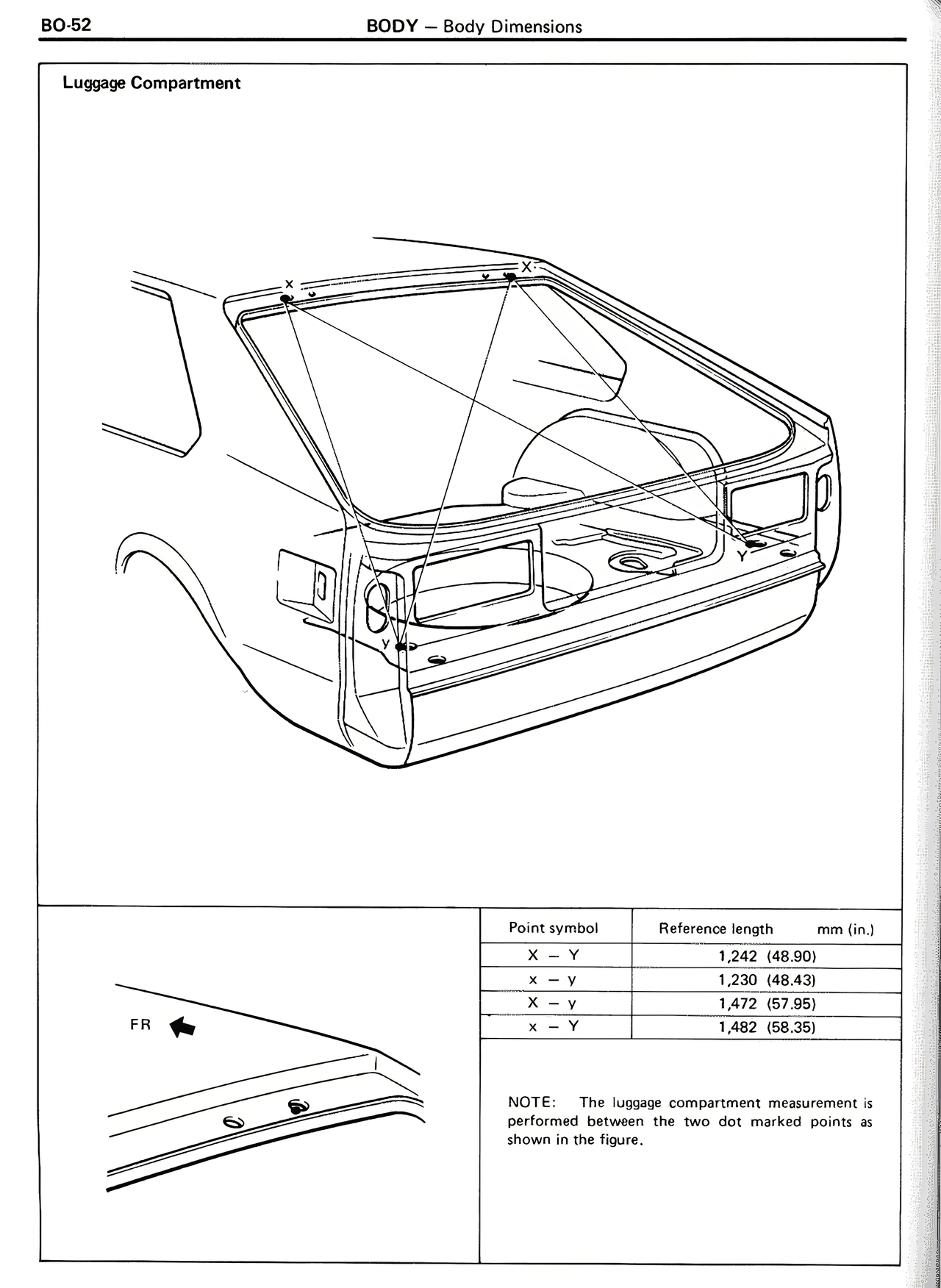

Luggage Compartment
FR
Point symbol Reference length mm (in.)
X — Y 1,242 (48.90)
x — y 1,230 (48.43)
X — y 1,472 (57.95)
x — Y 1,482 (58.35)
NOTE: The luggage compartment measurement is performed between the two dot marked points as shown in the figure.
