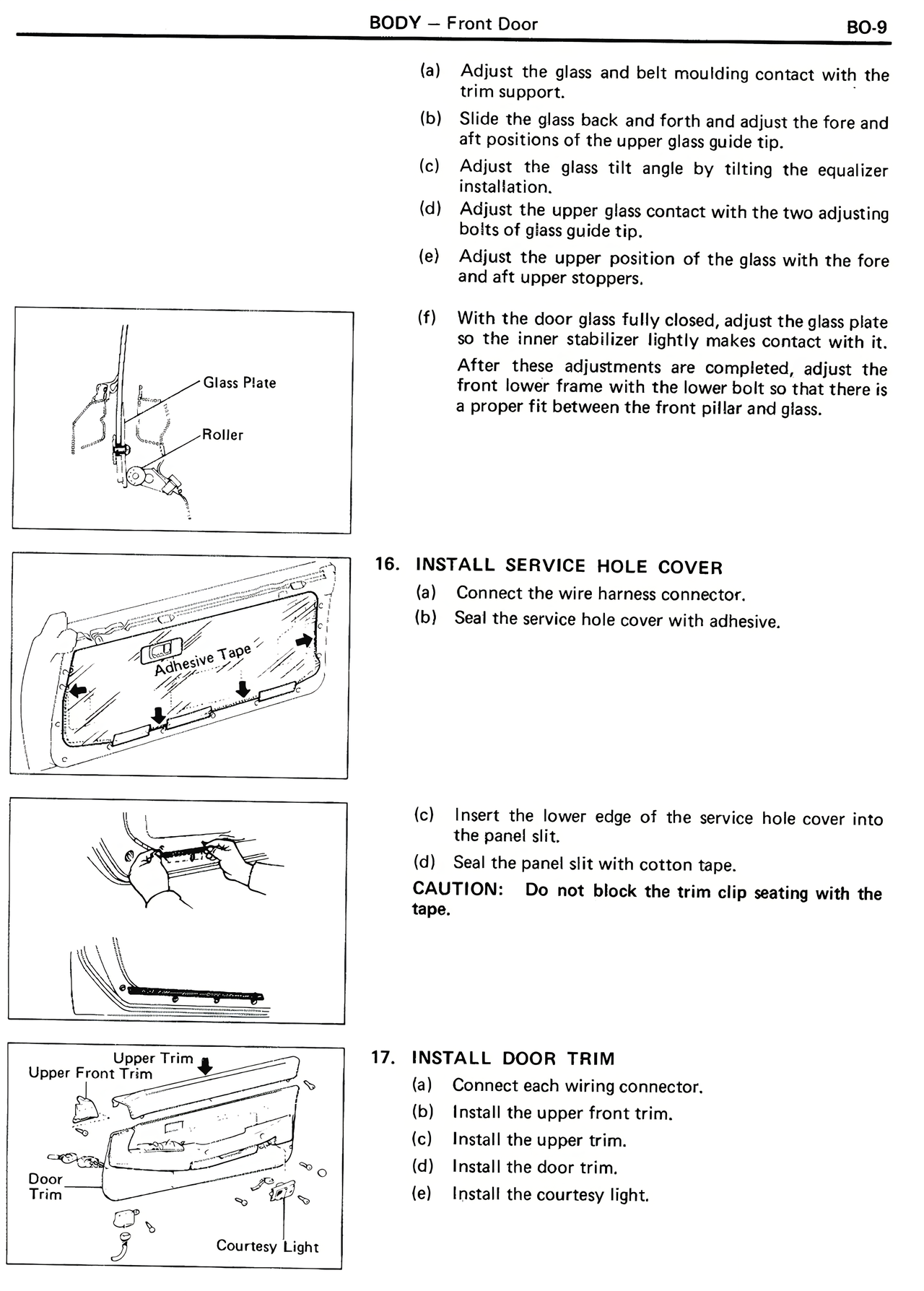

(a) Adjust the glass and belt moulding contact with the trim support.
(b) Slide the glass back and forth and adjust the fore and aft positions of the upper glass guide tip.
(c) Adjust the glass tilt angle by tilting the equalizer installation.
(d) Adjust the upper glass contact with the two adjusting bolts of glass guide tip.
(e) Adjust the upper position of the glass with the fore and aft upper stoppers.
(f) With the door glass fully closed, adjust the glass plate so the inner stabilizer lightly makes contact with it. After these adjustments are completed, adjust the front lower frame with the lower bolt so that there is a proper fit between the front pillar and glass.
16. INSTALL SERVICE HOLE COVER
(a) Connect the wire harness connector.
(b) Seal the service hole cover with adhesive.
(c) Insert the lower edge of the service hole cover into the panel slit.
(d) Seal the panel slit with cotton tape.
CAUTION: Do not block the trim clip seating with the tape.
17. INSTALL DOOR TRIM
(a) Connect each wiring connector.
(b) Install the upper front trim.
(c) Install the upper trim.
(d) Install the door trim.
(e) Install the courtesy light.
