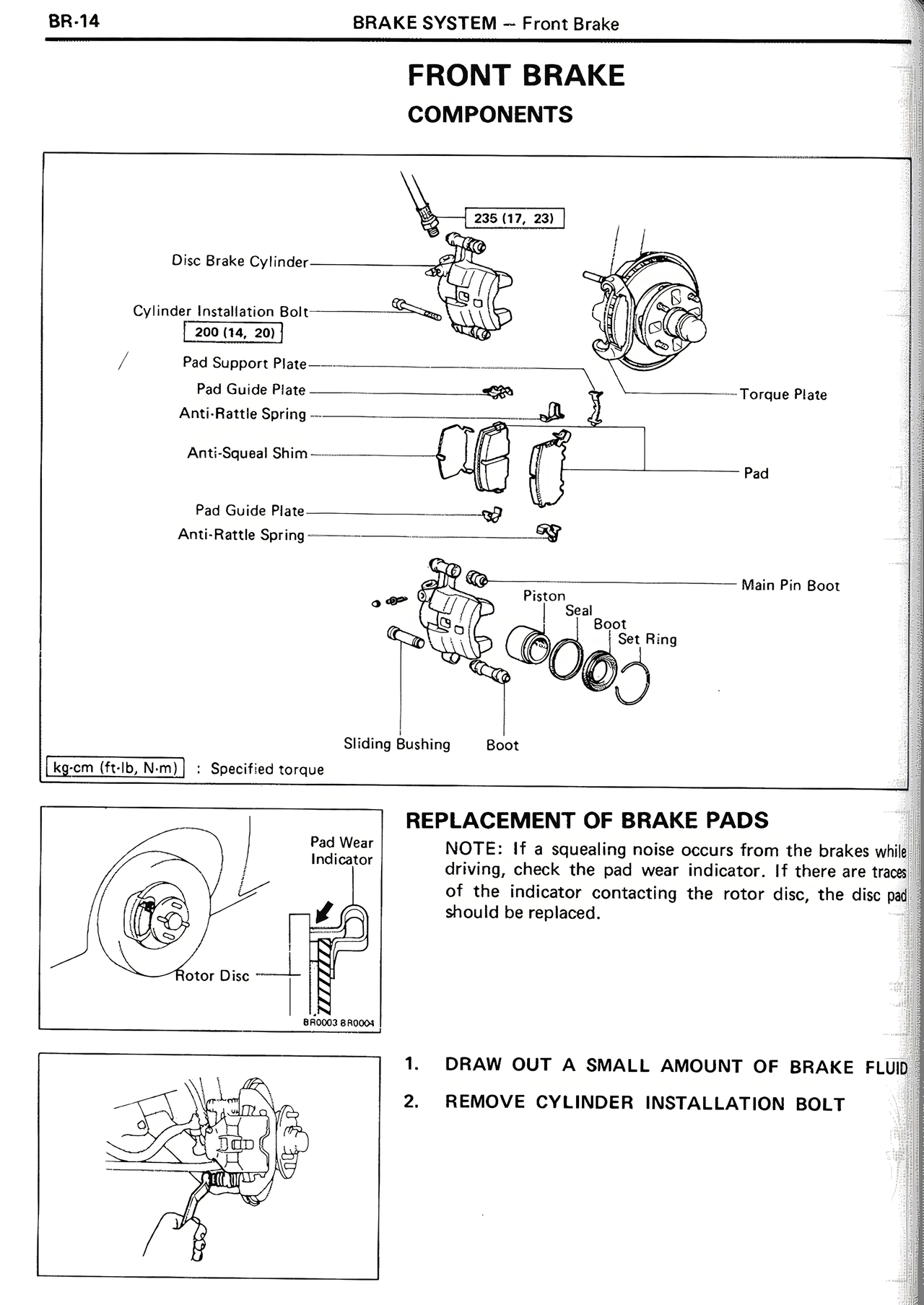

FRONT BRAKE COMPONENTS 235 [17, 23] Disc Brake Cylinder Cylinder Installation Bolt 200 [14, 20] Pad Support Plate Pad Guide Plate Anti-Rattle Spring Anti-Squeal Shim Pad Guide Plate Anti-Rattle Spring Torque Plate Pad Main Pin Boot Piston Seal Boot Set Ring Sliding Bushing Boot kg·cm [ft·lb, N·m] : Specified torque REPLACEMENT OF BRAKE PADS Pad Wear Indicator Rotor Disc NOTE: If a squealing noise occurs from the brakes while driving, check the pad wear indicator. If there are traces of the indicator contacting the rotor disc, the disc pad should be replaced. 1. DRAW OUT A SMALL AMOUNT OF BRAKE FLUID 2. REMOVE CYLINDER INSTALLATION BOLT
